SKYDANCE XC User Manual

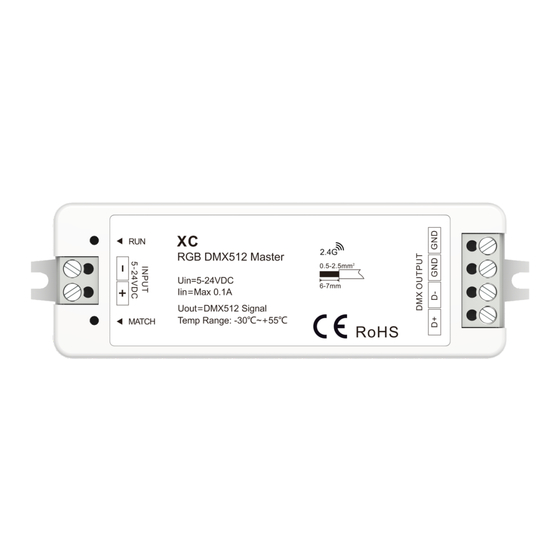

RF-DMX512 RGB LED Controller
Model No.: XC
Max 510 channel/Wireless remote control
Features
● Mini-style RF 2.4G multi-pixel RGB LED controller with DMX512 signal output .
● Send international standard DMX512/1990 signal to DMX512 decoders or RGB LED lamps with DMX decode chip.
● Match with Skydance's 2.4G RGB/RGBW remote control, such as R9.
● 32 kinds dynamic mode, include horse-race, chase, flow, trail or gradual change style.
Technical Parameters
Input and Output
Input voltage
Power consumption
Input signal
Output signal
Dynamic mode
Control dots
Environment
Operation temperature
Case temperature Max.
(
IP rating
User Manual Ver 1.0.2
5-24VDC
1W
RF 2.4GHz
DMX512
32
Max 170 RGB pixels
(510 Channels)
O O
Ta: -30 C ~ +55 C
) O
T c: +85 C
IP20
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Certification
Warranty and Protection
Warranty
Protection
www.iskydance.com
LVD RED
EN55032:2015,
EN61000-3-2:2014,
EN61000-3-2:2013,
EN55024 :2010/A1:2015
EN 61347-1:2015
EN 61347-2-11:2015
CE,EMC,LVD
5 years
Reverse Polarity
Page 1
