S i 10xx- DK
To create a new profile:
1. Select the profile that most closely matches the target application or choose the "Custom Profile".
2. Click Manage
3. Click Duplicate
4. Click Edit

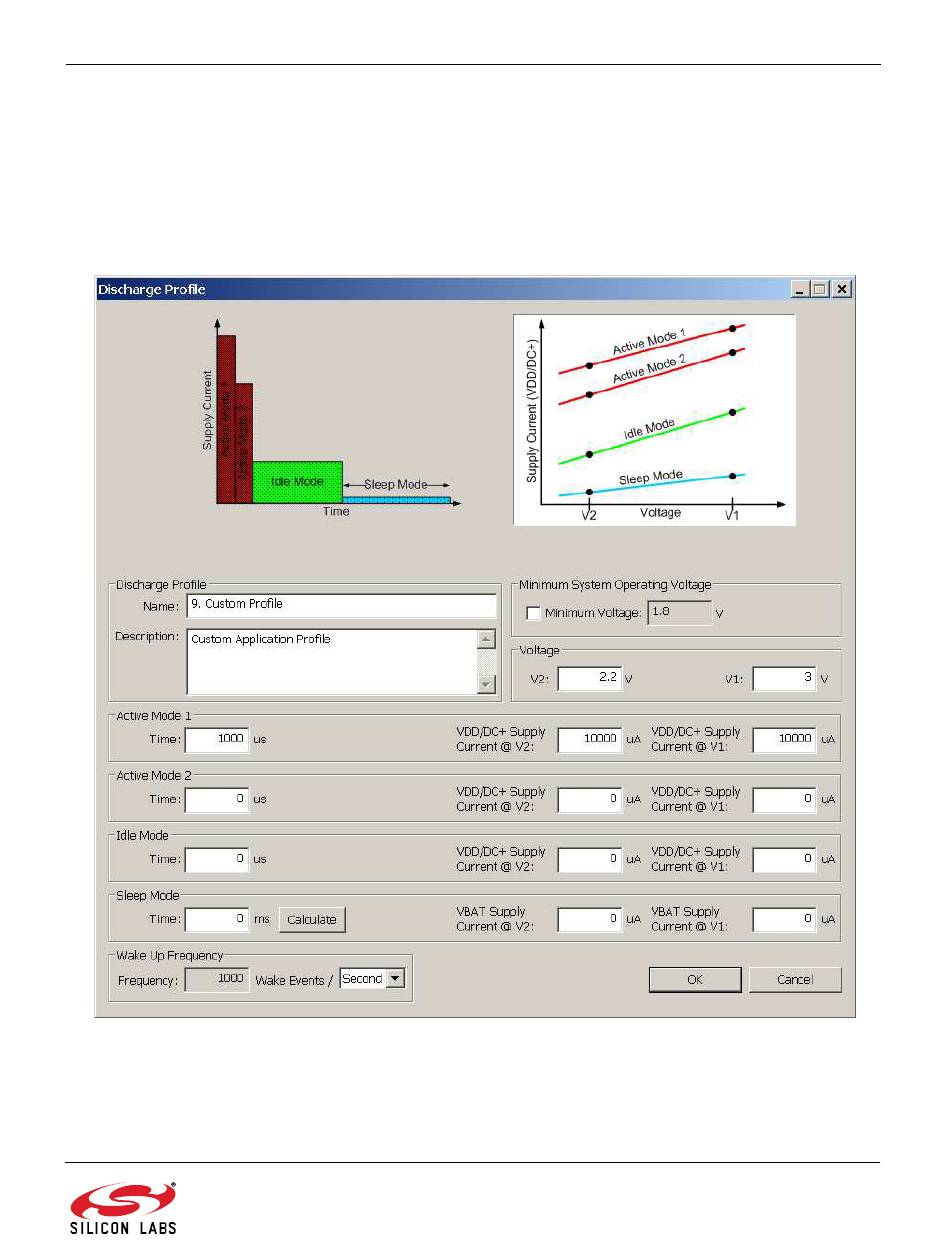

Profiles may be edited with the easy-to-use GUI (shown in Figure 4).
Figure 4. Battery Life Estimator Discharge Profile Editor
The Discharge Profile Editor allows the user to modify the profile name and description. The four text entry boxes
on the left hand side of the form allow the user to specify the amount of time the system spends in each power
mode. On the right hand side, the user may specify the supply current of the system in each power mode.
