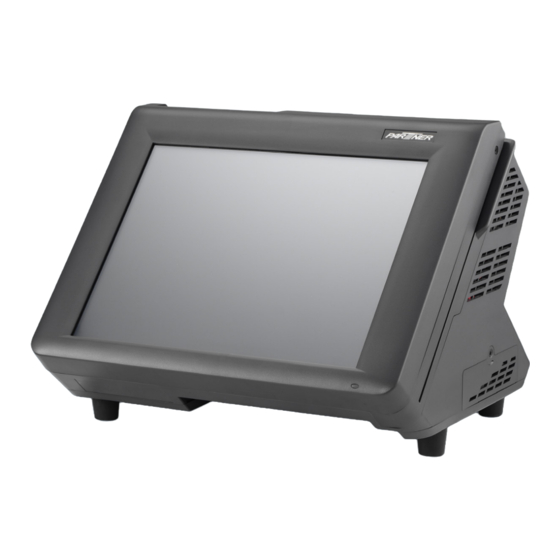

Partner PT-6212-EB Quick Start Manual

PT-6212-EB

Unpacking and Setup Instructions

Step1: Unpack the box and check the contents.

The PT-6212-EB and its accessories
are packed in a cardboard carton
with foam padding for protection
during shipment. Carefully unpack
the system and keep the packing
materials for future use.
Verify that all of the items shown
below are included in the box. If
an item is missing or appears to be
damaged, contact your Partner Tech
dealer immediately.
Driver CD with drivers and
the user manual PDF file.
3" thermal paper roll
Power Cable
Adapter

Step2: Connect the peripheral devices

Caution: Be sure to connect the
peripheral devices to the appropriate
ports, as shown below. A device may
not function correctly if it is connected
to the wrong port.
Keyboard
Adapter

Step3: Connect the power adapter

A. Connect the power cable to the
power socket located on the
left side of the PT-6212-EB I/O
panel.
B. Plug the power cable into an
electrical outlet.
PT-6212-EB
Note: Using adaptor higher than
12V/15A may damage the system.
MR HS AA CD
ADSL modem or router
Cashdrawer
USB Compliant
devices
Note: Drivers and utilities needed for PT-6212-EB are included in the
"User Manual and Driver CD".
OH SD RD TR
Monitor
