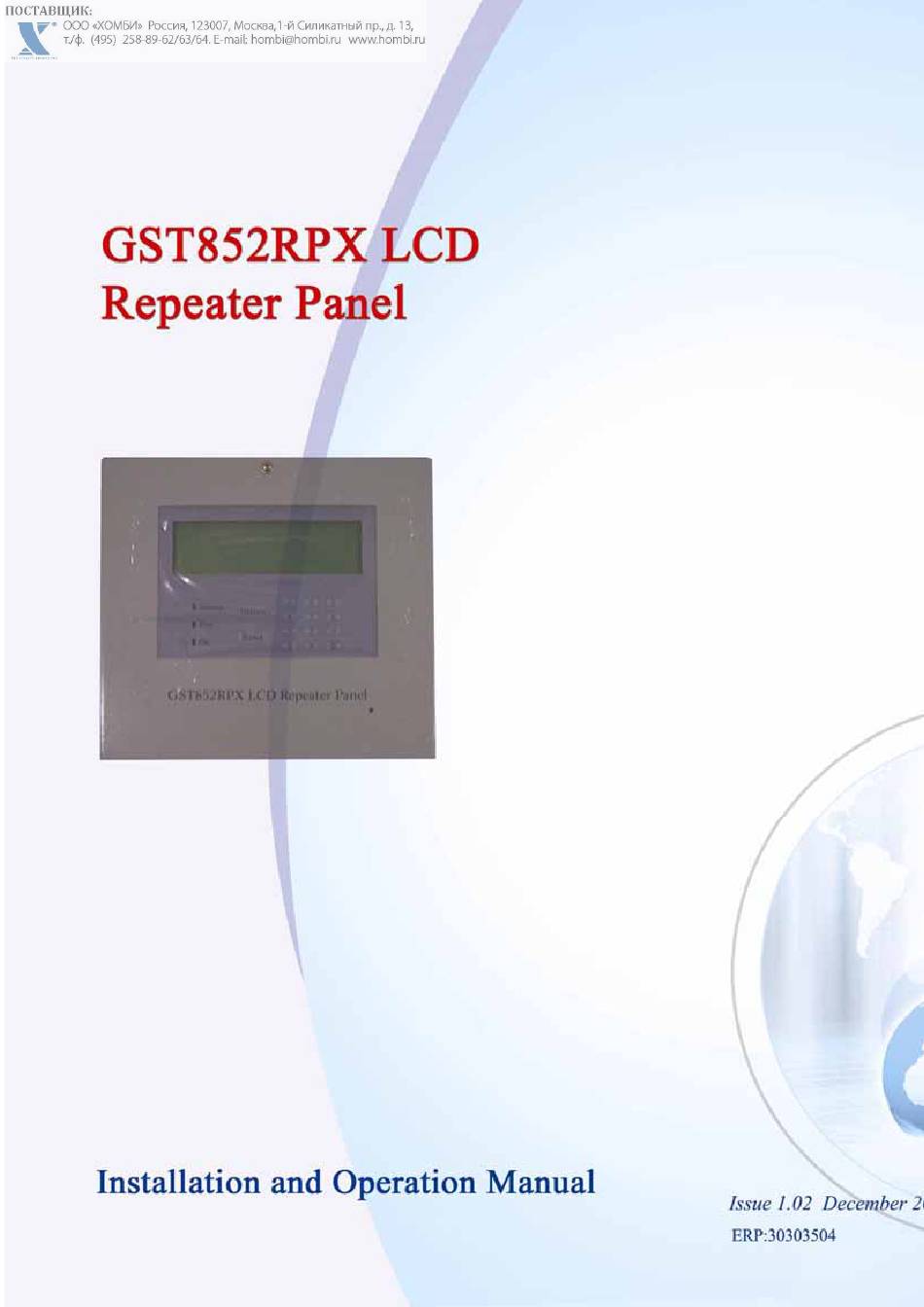

- Page 1 E-MAIL: hombi@hombi.ru HTTP://GSTRU.RU HTTP://WWW.HOMBI.RU...
- Page 2 GST852RPX LCD Repeater Panel Installation and Operation Manual The Intelligent Solution CONTENTS General ......................... 1 Features ........................ 1 Technical Specifications ..................1 Structure and Operation Principle ................. 1 Operation ......................3 Troubleshooting..................... 4 VII Cautions ........................ 4 E-MAIL: hombi@hombi.ru HTTP://GSTRU.RU HTTP://WWW.HOMBI.RU...
- Page 3 GST852RPX LCD Repeater Panel Installation and Operation Manual The Intelligent Solution General GST852RPX LCD Repeater Panel (the repeater panel) is designed with a microprocessor to display the user code and description of the alarming detector (detectors) and generate audible and visual signals simultaneously. II Features Through communication loops, GST852RPX LCD repeater panel can connected with GST200, GST500 and GST5000 fire alarm control panels, processing and displaying...
- Page 4 GST852RPX LCD Repeater Panel Installation and Operation Manual The Intelligent Solution Silence Silence Fire Reset Self Test GST852RPX LCD Repeater Panel Unit: mm Fig.1 Front panel of the repeater panel is shown in Fig. 2. 230mm Silence Silence Fire Reset Self Test GST852RPX LCD Repeater Panel...
- Page 5 GST852RPX LCD Repeater Panel Installation and Operation Manual The Intelligent Solution ∧ key: It is used to scroll the screen. In alarm state, press this key can stop ∨ the circular display and start scrolling screen when the fire information is more than 1 piece.
- Page 6 This product must be in the charge of trained personnel. We take charge of repairing the repeater panel. Any problem occurs, please contact us in time. GST won’t be responsible for any result if you repair it by self. Page 4 E-MAIL: hombi@hombi.ru...
- Page 7 GST China Gulf Security Technology Co., Ltd. No. 80, Changjiang East Road, QETDZ, Qinhuangdao, Hebei, P. R. China 066004 Tel: +86 (0) 335 8502528 Fax: +86 (0) 335 8508942 Email: sales@gst.com.cn www.gst.com.cn GST UK Global System Technology PLC Enterprise Glade, Bath Lane, Moira, South Derbyshire, England.
