ASSEMBLY INSTRUCTIONS

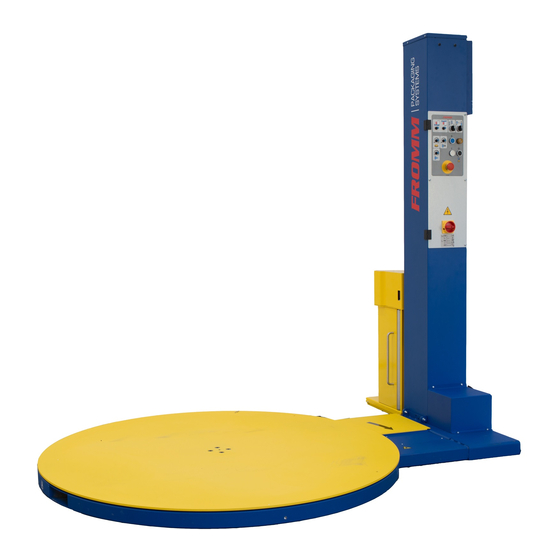

Stretch Wrapping machine's
FS3xx/FS1xx Toppress Art. FS3.2670
(Already included in the machine)
Version 01 Machines
List Rev01
Website : www.fromm-stretch.com
It is forbidden to duplicate this manual or parts of it in any way or any form without written permission of the author © 2015
www.fromm-stretch.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the FS3 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Fromm FS3 Series

  • Page 1 FS3xx/FS1xx Toppress Art. FS3.2670 (Already included in the machine) Version 01 Machines List Rev01 Website : www.fromm-stretch.com It is forbidden to duplicate this manual or parts of it in any way or any form without written permission of the author © 2015 www.fromm-stretch.com...
  • Page 2 Fig.8 Fig.7 Bank. Banca Popolare di Verona | IT-37010 | ITALY FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Viale del Lavoro 21 Fax. 0039 045 205 7373 Account Nr. 000000000227 | Swift Nr. IT-BAPPIT21130 Iban.
  • Page 5 MECHANICAL BLOCK FS3.2717 16 Lever LEVER FOR MICROSWITCH FS3.2722 17 Plate PLATE FS4.1516 18 Label LABEL BRAND FROMM FS4.1521 19 Sticker RED STICKER PVC N1.1219 20 Screw BUTTON HEAD SCREW ISO 7380 - M6 x 12 ZINCED N1.1220 21 Screw BUTTON HEAD SCREW ISO 7380 - M6 x 16 N1.1225...
  • Page 6 FS3.0261 Toppress Q.ty Part no. RIF Description Specification English N1.7339 45 Screw HEAD PIN SCREW M5x16 ZINCED UNI 8112 N2.4902 46 Rivet CYLINDRICAL HEAD CAP RIVET C15 D.1,85x4,76 NICK. N4.7238 47 Pinion PINION 1/2"X5/16" Z=18 + BALL BEARING N4.7375 48 Chain CHAIN 1/2"X5/16"...
  • Page 9 FS3.0264G Arm Toppress Q.ty Part no. RIF Description Specification English FS3.1195 1 Flange FLANGE FS3.2630G 2 Tube TUBE YELLOW RAL 1021 FS3.2632 3 Shaft SHAFT FS3.2635Z 4 Bracket ADJUSTABLE BRACKET ZINCED FS3.2636Z 5 Disk DISK ZINCED FS3.2637Z 6 Bracket BRACKET ZINCED FS3.2659G 7 Tube TUBE YELLOW RAL 1021...
  • Page 11 FS3.0277 Group motorgear Toppress Q.ty Part no. RIF Description Specification English FS3.2591 1 Pinion PINION FS3.2592 2 Shaft SHAFT N1.1546 3 Bolt HEXAGON HEAD SCREW DIN 933 - M10 x 25 N1.6196 4 Washer WASHER M10 - 10.5x40x2.5 N1.6216 5 Washer SPRING LOCK WASHER DIN 127 -B- M10 N2.3314 6 Key...
  • Page 13 FS3.0278 Complete disk Toppress Q.ty Part no. RIF Description Specification English FS3.2645Z 1 Plate PLATE ZINCED FS3.2719 2 Topplate TOPPLATE FS4.1736 3 Sponge SPONGE 03/08/2015 FS3.0278.V01.01.xls...
  • Page 15 FS3.0295 Group carriage Toppress Q.ty Part no. RIF Description Specification English FS3.2643 1 Spring SPRING FS3.2767Z 2 Bracket BRACKET ZINCED FS3.2768Z 3 Plate PLATE ZINCED FS3.2770Z 4 Bracket BRACKET ZINCED FS3.2771Z 5 Distance pie. DISTANCE PIECE FOR MICRO ZINCED N1.1137 6 Screw CYLINDRICAL HEAD CAP SCREWS DIN 912 M12 x 30 N1.1576...
  • Page 17 FS3.0299G Group carter Toppress Q.ty Part no. RIF Description Specification English FS3.2772G 1 Plate PLATE YELLOW RAL 1021 FS3.2773G 2 Bracket CARTER YELLOW RAL 1021 FS3.2774G 3 Bracket CARTER YELLOW RAL 1021 N1.1219 4 Screw BUTTON HEAD SCREW ISO 7380 - M6 x 12 ZINCED N1.6131 5 Washer PLAIN WASHER M6 6,4x18x1,6 DIN 9021B...
