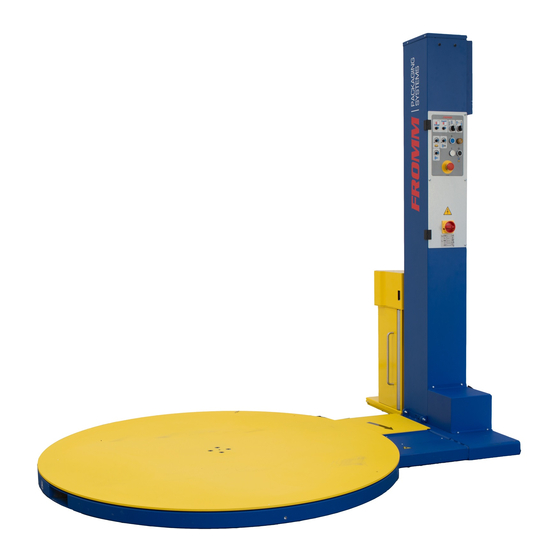

Fromm FS3 Series Technical Training Manual
  1. Manuals
  2. Brands
  3. Fromm Manuals
  4. Stretch Wrapping Systems
  5. FS3 Series
  6. Technical training manual

Fromm FS3 Series Technical Training Manual

Hide thumbs Also See for FS3 Series:

Advertisement

Quick Links

Download this manual
FROMM STRETCH
WRAPPING SYSTEMS
WRAPPING SYSTEMS
Technical training FS3xx
Models 2009
FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy
V05 28/05/2009
1
5/12/2010

Advertisement

loading
Need help?

Need help?

Do you have a question about the FS3 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fromm FS3 Series

Summary of Contents for Fromm FS3 Series

  • Page 1 FROMM STRETCH WRAPPING SYSTEMS WRAPPING SYSTEMS Technical training FS3xx Models 2009 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 2 FS 3xx Models 2009 32.1xxx.xxx FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 3 OP 1 Electrical box 16.8601 N43.9161 RED UNDERLINED PARTS ARE ADVISED SPAREPARTS Light machine under tension FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 4 OP 1 Electrical box 16.8601 Start Stop Stop Reset FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 5 OP 1 Electrical box 16.8601 Movement carriage up. Movement carriage down. Manual movement turntable. (JOG Function) Information button / Alarm indicator FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 6 OP 1 Electrical box 16.8601 Update software 1.1 Software Version 1.1 or Higher! Press shortly LED start = OFF = Auto Program Press shortly LED start = Blinking = Manual Pr FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 7 OP 1 Electrical box 16.8601 Parameter settings / Press for 5 sec - & + Higher value Lower value FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 8 OP 1 PARAMETERS Confirm Written PA Confirm Write 16 using Write 07 using Confirm FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 9 OP 1 PARAMETERS Blinking P01 Next P press Found correct P select start Display shows value Change using Confirm FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 10 OP 1 PARAMETERS At any moment press STOP to exit Check the technical manual for the complete parameter list FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 11 1°2° numbers Maintenance counter Def. 06 3°4° numbers Maintenance counter Def. 16 5°6° numbers Maintenance counter Def. 00 7°8° numbers Speed turntable 30-60 default 40 (Increase with steps of 9) FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 12 OP 2 Electrical box 16.8602 N43.9160 Light machine under tension FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 13 OP 2 Electrical box 16.8602 Start Stop Stop Reset FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 14 OP 2 Electrical box 16.8602 Light ON if function has been selected Display Higher value Lower value Selector to change value’s for speed Information for maintenance counter! FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 15 OP 2 Electrical box 16.8602 Selector speed carriage (Up / Down equal) (increase or decrease with the + or - button Selector speed turntable (increase or decrease with the + or - button FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 16 OP 2 Electrical box 16.8602 Selector bottom wraps. (increase or decrease with the + or - button Selector top wraps. (increase or decrease with the + or - button Selector FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 17 (Only up or only down / Up and down) Movement carriage up. (Optional Joystick is available and easy to install) Movement carriage down. (Optional Joystick is available and easy to install) Manual movement turntable. (JOG Function) FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 18 OP 2 PARAMETERS Select Automatic program JOG Table + Speed carriage 5 seconds 5 seconds Confirm Written PA Confirm Write 16 using Write 07 using Confirm FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 19 OP 2 PARAMETERS Blinking P01 Next P press Found correct P select start Display shows value Change using Confirm FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 20 OP 2 PARAMETERS At any moment press STOP to exit Check the technical manual for the complete parameter list FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 21 Def. 00 1°2° numbers Maintenance counter Def. 06 3°4° numbers Maintenance counter Def. 6 5°6° numbers Maintenance counter Def. 00 7°8° numbers Descent time top-sheet 1-20 default 5 (=5sec) FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 22 N5.5475 Inverter not programmed (Table) N51.5427 Inverter not programmed (Carriage) FS3.2185 Table OP1 FS3.2187 Carriage OP1 FS3.2186 Table OP2 FS3.2188 Carriage OP2 FS4.0170 Group hinge FS4.0171 Group hinge lock FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 23 16.8605-16.8606 FS3.0228 Operating panel OP1 group (-25° ) FS3.0227 Operating panel OP2 group (-25° ) Compact fan heater N51.5445 N51.5445 N51.1117 Base motor/gear N51.1118 Mast motor/gear Compact thermostat N51.5446 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 24 16.8610-16.8611-16.8612 Base unit FS3.0203GB Turntable Ø1500mm Base unit FS3.0204GB Turntable Ø1650mm Base unit FS3.0218GB Turntable Ø1800mm FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...

  • Page 25: Zero Position

    16.8610-16.8611-16.8612 Hold above two buttons 5 seconds Zero position FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 26 Carter FS3.2090B Disk Ø1650 FS3.2144G Motor carter FS3.2091B Disk Ø1800 FS3.2269G Screw carter N1.1220 Screw N4.2183 Washerr N1.6204 Locktite n° 628 Bracket FS1.1383 Screw N1.1591 Plug N2.2455 Washer N1.6201 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 27 16.8610-16.8611-16.8612 Welded base-unit FS3.2259B (Ø1500) FS3.2260B (Ø1650) FS3.2257B (Ø1800) FS3.2257B (Ø1800) Standard quality Higher quality FS4.0168+N1.6375 FS4.1017 N31.1143 FS3.2099 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 28 16.8615-16.8616-16.8617 90°Photocell Disk Ø1650 N5.2643 FS3.2304G Rubbered wheel group FS3.0226 Spring FS4.1449 Roll Reflector photocell Welded base-unit horse shoe FS4.1017 N5.2667 FS3.2316B (Ø1650) FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 29 Polyzene Side bottom mast Chain for Mast h.2200 N4.7359 Plate FS3.2121 Plate FS3.2119 Chain for Mast h.2500 N4.7358 Screw N11.1173 4x Polyzene FS3.2120 Joint with linK N4.7413 Washer N1.6215 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 30 Bracket Right FS3.2117 the carriage mounting plate. Plate FS3.2147 Bracket Left FS3.2118 Screw N11.1117 Screw for the gearbox N1.1222 Washer N1.5124 Washer for the gearbox N1.6204 FS3.2136 3x N2.3307 FS3.2137 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 31 Screw on the shaft N1.1557 Washer on the shaft N1.6195 Washer on the shaft N1.6215 Screw fix with mast N1.1142 Washer fix with mast N1.6204 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 32 16.8640-16.8641 FS3.2133 FS3.2123 FS3.2122 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 33 16.8640-16.8641 Screw N1.1572 Tension Bracket FS3.2126 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 34 1x Bracket bottom FS3.2128 Bracket top FS3.2146 Fixed position 1x Proximity N5.2554 Proximity N5.2554 2x Screw N1.1222 Screw N1.1222 2x Washer N1.6131 Washer N1.6131 Move position Fix the cable chain FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 35 16.8660 Carriage 1 FS3.0201G Brake disk FS3.2034 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 36 16.8660-16.8661-16.8663 Screw N1.6201 Micro N5.2357 Photocell N5.2635 Washer N1.1568 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 37 16.8660 Roll H.520 Roll H.510 Roll H.505 FS3.2153 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 38 16.8661 Carriage 2 FS3.0217G Handle N4.1942 N4.1942 Rubber roll FS3.2151 Spring Friction N21.5122 FS3.2205 Free roll N4.2210 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 39 16.8663 Handle Carriage 4 N4.1908 FS3.0229G Hinge N2.6108 Rubber roll FS3.2151 Free roll N4.2210 Magnetic closer Electromagnetic clutch N4.1943 N4.7726 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 40 16.8670 N51.1104 Plate FS3.2169 FS3.2085 Screw N1.1440 Screw N11.1102 Washer N1.6188 Washer N1.6215 2x N2.3308 Screw N1.1546 FS3.2103 1x N2.3314 Washer N1.6196 FS3.2104 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 41 16.8670 Screw Screw N1.1546 N1.1546 FS3.2088 Washer N1.6130 Washer N1.6201 Screw N11.1102 FS3.2089 Proximity N5.2554 Washer N1.6215 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 42 16.8670 Tension chain Chain for Turntable Ø1500 N4.7360 Chain for Turntable Ø1650 N4.7361 Joint with linK N4.7415 Polyzene FS3.2098 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 43 16.8671 PATENT FROMM 2x Plate thickness FS3.2095 Bracket polyzene FS3.2087 2x Plate thickness 4mm FS3.2102 Polyzene FS3.2097 2x Plate thickness 2.5mm FS3.2145 Screw N11.1135 Screw N11.1141 Washer N1.6204 Washer N1.6215 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 44 16.8671 PATENT FROMM Bracket polyzene FS3.2086 Bracket FS3.2084 Polyzene FS3.2097 Poliuretanic spring N4.1804 Screw N1.1542 Washer N1.6188 FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
  • Page 45 Thanks for your attention Thanks for your attention FROMM Stretch Wrapping Division, Caprino V.se. (VR) Italy V05 28/05/2009 5/12/2010...
