FROMM
FROMM
Stretch Wrapping machine's

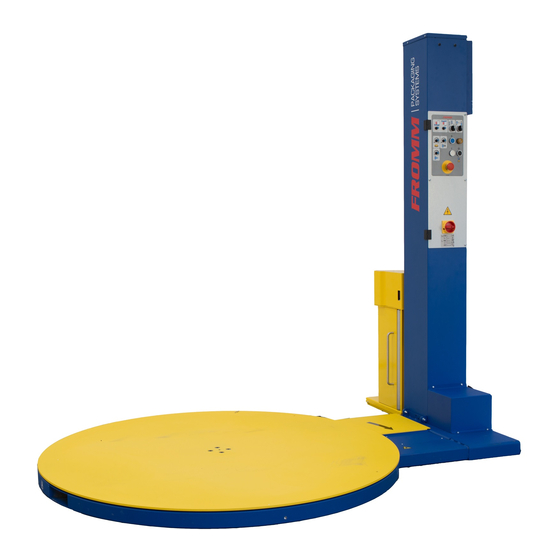

Information about FS360 machine
HORSESHOE
Instruction to assembly /
change entry position /
spare part list
Website : www.fromm-stretch.com
It is forbidden to duplicate this manual or parts of it in any way or any form without written permission of the author © 2018
www.fromm-stretch.com
Advertisement
Related Manuals for Fromm FS360
Summary of Contents for Fromm FS360
- Page 1 FROMM FROMM Stretch Wrapping machine’s Information about FS360 machine HORSESHOE Instruction to assembly / change entry position / spare part list Website : www.fromm-stretch.com It is forbidden to duplicate this manual or parts of it in any way or any form without written permission of the author © 2018...
- Page 2 Instruction assembly FS360 horseshoe Unload the machine using fork lift truck and later remove the brackets (A1 and B1) used for this function: Front side loading Chassis B Chassis A Chassis C Bank. Banca Popolare di Verona | IT-37010 | ITALY FROMM Wrapping Systems S.r.l.
- Page 3 Fig.1 Fig.2 Fig.3 Bank. Banca Popolare di Verona | IT-37010 | ITALY FROMM Wrapping Systems S.r.l. Office. 0039 045 205 7300 Viale del Lavoro 21 Fax. 0039 045 205 7373 Account Nr. 000000000227 | Swift Nr. IT-BAPPIT21130 Iban. IT11-W-05034-85830-000000000227 IT-37013 Caprino V.se. (VR) info@fromm-stretch.com...
- Page 4 Assembling Telaio C and connection the proximity for the safety following Fig.4 here below Fig.4 Left or Right side loading Move the reflector on the perimeter of the disk, following page “Horseshoe FS360 Open side for loading”. Remove Chassis A and Chassis B, unscrew its bolts and connections them in the front positions.
- Page 9 FS1.0330AE Horse shoe Ø1500mm Q.ty Part no. RIF Description Specification English FS1.0247 1 Group Group adjustable foot FS1.0297 2 Group Group motor carter Blue Sablè RAL 5010 FS1.0326A 3 Group Group enter horseshoe Blue Sablè RAL 5010 FS1.0327A 4 Group Group lateral carter inside Blue Sablè...
- Page 10 FS1.0330AE Horse shoe Ø1500mm Q.ty Part no. RIF Description Specification English N1.1582 24 Bolt HEXAGON HEAD BOLT M10x75 UNI 5739 DIN 933 ZN N1.1588 25 Bolt HEXAGON HEAD BOLT M8x80 UNI 5739 DIN 933 ZN N1.2147 26 Bolt SOCKET CTRS. HD BOLT DIN 7991 M8x20 ZINCED N1.4202 27 Tap FISCHER FBN 10/15-23...
- Page 13 FS1.0247 Group adjustable foot Part no. RIF Description Specification English Q.ty FS1.2373Z 1 Bracket Bracket zinced N1.1211 2 Screw Button head bolt M8x20 black cl.10.9 N1.1584 3 Screw Hexagon head bolt M10x35 galvanized UNI5739 DIN 933 N1.5108 4 Nut Nut M10 galvanized cl.8 PG DIN934-UNI5588/65 N1.6215 5 Washer Washer grower M8 black UNI1751/52A...
- Page 15 FS1.0297A Group motor carter (Blue Sablé RAL5010) Part no. RIF Description Specification English Q.ty FS1.2376A 1 Gear Painted motor carter (Blue Sablé RAL5010) N1.1220 2 Screw Button head bolt M6x16 zinced UNI7380 N1.6204 3 Washer Spring lock washer M6 zinced DIN127-B- UNI1751/52A 30/01/2018 N-FS1.0297.V01.01.xls...
- Page 17 FS1.0326A Group enter horseshoe Blue Sablè RAL 5010 Q.ty Part no. RIF Description Specification English FS1.2654A 1 Carter CARTER RIGHT SIDE FS1.2656A 2 Slide SLIDE ENTRY FS1.2659A 3 Carter CARTER LEFT SIDE N11.1173 4 Screw CYLINDRI. HEAD CAP SCREW M8x25 UNI5931 DIN912 N1.5313 5 Nut NUT M3 AUTOBLOCK.
- Page 19 FS1.0327A Group lateral carter inside Blue Sablè RAL 5010 Q.ty Part no. RIF Description Specification English FS1.2663A 1 Carter LATERAL CARTER INSIDE N1.5957 2 Rivet RIVET M5 N1.6167 3 Washer PLAIN WASHER M5 5.3x10x1 DIN 433 ZINCED N1.6217 4 Washer SPRING LOCK WASHER DIN 127 -B- M5 N11.1101 5 Screw...
- Page 21 FS1.0328A Group lateral carter outside Blue Sablè RAL 5010 Q.ty Part no. RIF Description Specification English FS1.2661 1 Carter LATERAL CARTER OUTSIDE N1.1225 2 Bolt BUTTON HEAD BOLT M5x16 ZINCED UNI 7380 19/06/2018 FS1.0328A.V01.01.xls...
- Page 23 FS1.0329E Group disk Yellow RAL 1021 antislip finish Q.ty Part no. RIF Description Specification English FS1.2680 1 Disk DISK YELLOW RAL 1021 ANTISLIP FINISH FS1.2703 2 Bracket BRACKET TO FIX FILM FS3.2344 3 Label FORKLIFT TRUCK LABEL FS4.1017 4 Roller ROLL FS4.1462 5 Wire steel...
- Page 25 FS1.0332 Group motorgear Q.ty Part no. RIF Description Specification English FS1.0331 1 Motor+gear MOTORGEAR I=10 0,55 Kw FS1.2009 2 Support SUPPORT FOR MOTORGEAR FS1.2281 3 Pinion PINION 1/2"x5/16" Z22 FS1.2282 4 Shaft SHAFT N1.1546 5 Bolt HEXAGON HEAD BOLT M10x25 DIN 933 ZINCED N1.1589 6 Bolt HEXAGON HEAD BOLT M8x18 DIN 933 ZINCED...
- Page 27 FS1.0340A Group carter chain Blue Sablè RAL 5010 Q.ty Part no. RIF Description Specification English FS1.2667A 1 Carter CARTER CHAIN BLUE SABLE' RAL 5010 FS1.2716 2 Label LABEL WITH DRAWING OF ARROW FS3.2342 3 Label FALL DANGER LABEL FS3.2343 4 Label CRUSHING DANGER LABEL 19/06/2018 FS1.0340.V01.01.xls...
- Page 29 FS1.0341 Group proximity turntable Q.ty Part no. RIF Description Specification English FS1.2677Z 1 Bracket BRACKET SUPPORT PHOTOCELL ZINCED N5.3172 2 Cable CABLE PROXIMITY N51.2619 3 Photocell PHOTOCELL 19/06/2018 FS1.0341.V01.01.xls...
- Page 31 FS3.0226 Group rubbered wheel Q.ty Part no. RIF Description Specification English FS4.1444 1 Lever LEVER N31.1141 2 Ball bearing BALL BEARING 63005 2RS1 25X47X16 FS4.1450 3 Wheel RUBBERED WHEEL FS4.1451 4 Gear GEAR 1/2"x5/16" Z=24 N2.1105 5 Seeger ELASTIC RING TYPE A D.25 DIN 471 N1.2168 6 Bolt SOCKET CTRS HD BOLT DIN 7991 M8x16 ZINCED...
