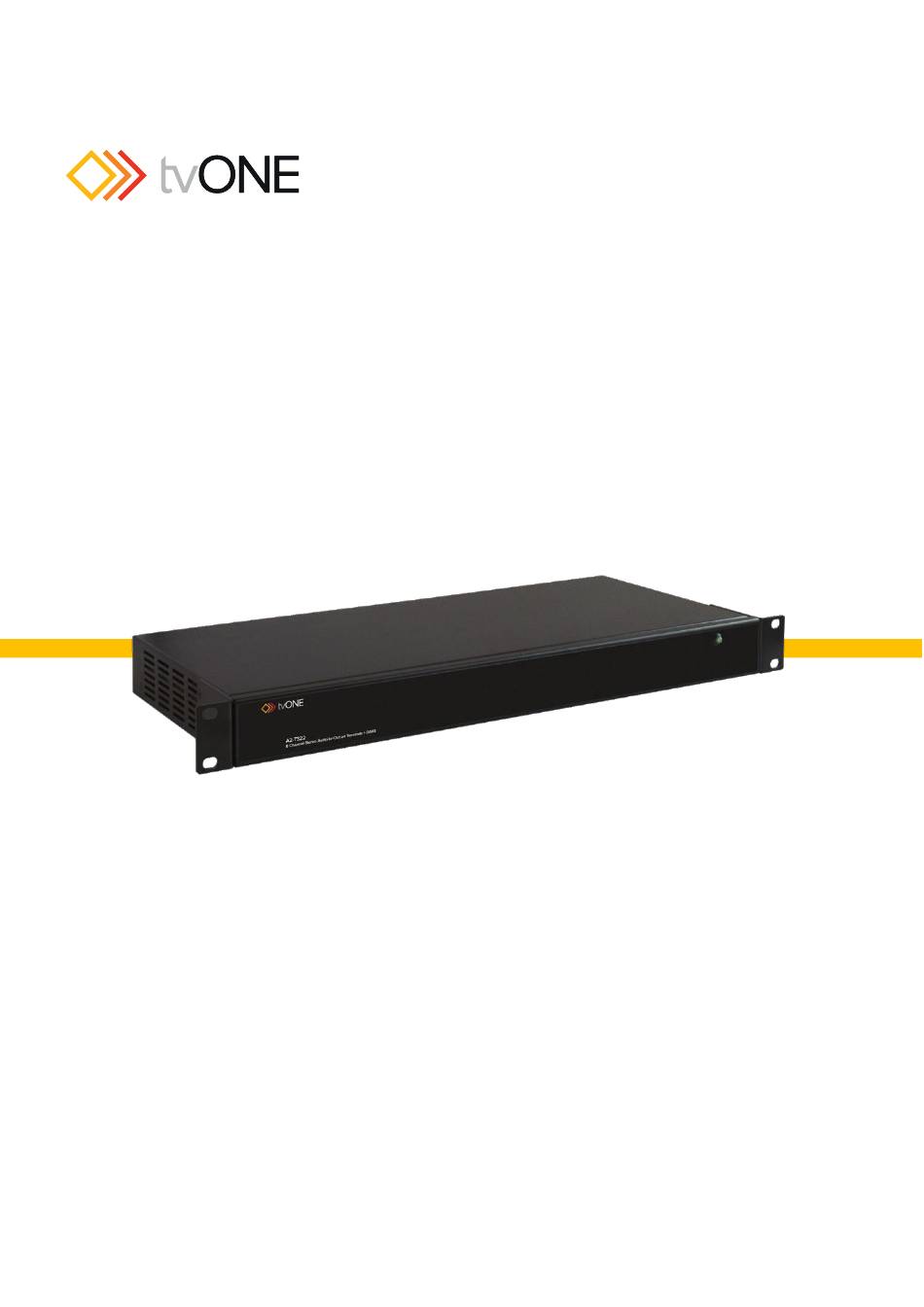

- Page 1 A2-7312 A2-7322 A2-7342 User Guide V2.00 MNL-A2-73xx-SERIES-V2.00 Apr 2019...
-
Page 2: Table Of Contents
Connector pinouts ..............................5 .................................. 5 HD44 Connection at A2-73XX Unit ........................5 Multi-way audio connector (balanced) ......................6 Specifications ................................. 6 A2-7312 breakout unit ............................6 A2-7322 format converter ..........................6 A2-7342 Format converter..........................7 Regulatory compliance ............................. 7 Environmental ..............................7 Power requirement ............................ -
Page 3: About Your A2-73Xx
C2-7310 HD Audio/Video Processor. A2-7312 The A2-7312 provides an HD-44 interface to 16 AES3-id (8-in/8-out) and a DARS reference input on BNC’s mounted on a 1RU panel via a 1.5 m (4.5’) interconnect cable. The connectors may be separated from the panel if system wiring requirements dictate. -
Page 4: Switchable Sampling Rates
The unit connects to the C2-7310 (or other A2-73XX units) via a 44 pin D-type connector, via a dedicated cable supplied with unit, connecting 4 AES3-id input channels, 4 AES3-id output channels, the DARS reference and communication between the units. Power supply The A2-7342 requires a 12V dc input with at least 3 Amps. tvONE... -
Page 5: Dip Switch Setting For A2-73Xx
Sampling Frequency to: 32 kHz Note: An invalid DIP switch position will blank all outputs. HD44 breakout cable The HD44 to HD44 cable supplied with the A2-73XX unit, which links it to the C2-7310 or other A2-73XX units, is only available from tvONE. MNL-A2-73xx-SERIES-V2.00... -
Page 6: Troubleshooting
Read more on page 3. Returning a product for repair You can request to return your product to tvONE™ for repair. When you contact tvONE support, have the following information ready. Product type ▪... -
Page 7: Connector Pinouts
Connector pinouts Socket Plug 1. Chassis Ground (cable shield) 2. Normal polarity (“hot” signal input) 3. Inverted polarity (“cold” signal input) HD44 Connection at A2-73XX Unit PIN# SIGNAL PIN# SIGNAL AES3-id Input Channel 1 Ground AES3-id Input Channel 2 Ground AES3-id Input Channel 3 Ground AES3-id Input Channel 4... -
Page 8: Multi-Way Audio Connector (Balanced)
3. Signal ground (shared with left and right) 4. Right positive signal (hot) 5. Right negative signal (cold) Specifications See product front and rear diagrams for details of product I/O. A2-7312 breakout unit Connectors: HD44 (interconnect interface) BNC: 8 x inputs, 8 x outputs, DARS Reference... -
Page 9: A2-7342 Format Converter
Voltage Level: 6V p-p input maximum (8.75dBu). 0dBFS AES3 input equating to 8.75 dBu analog output THD + noise: -97dB (A to D), -93dB (D to A), at 48 kHz Dimensions: 44x482x200 mm (1.75”x19”x7.9”) Weight: 3.0 kg A2-7342 Format converter Connectors: HD44 (interconnect interface) XLR sockets: 8 x input (4x stereo pairs) -
Page 10: Accessories Included
Information in this document is subject to change without notice. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or any means electronic or mechanical, including photocopying and recording for any purpose other than the purchaser's personal use without the written permission of tvONE. Copyright © 2019 tvONE™. All rights reserved.
