2-424.5 — WIRING DIAGRAMS MODELS HER, VE, PTE
5H70253A12

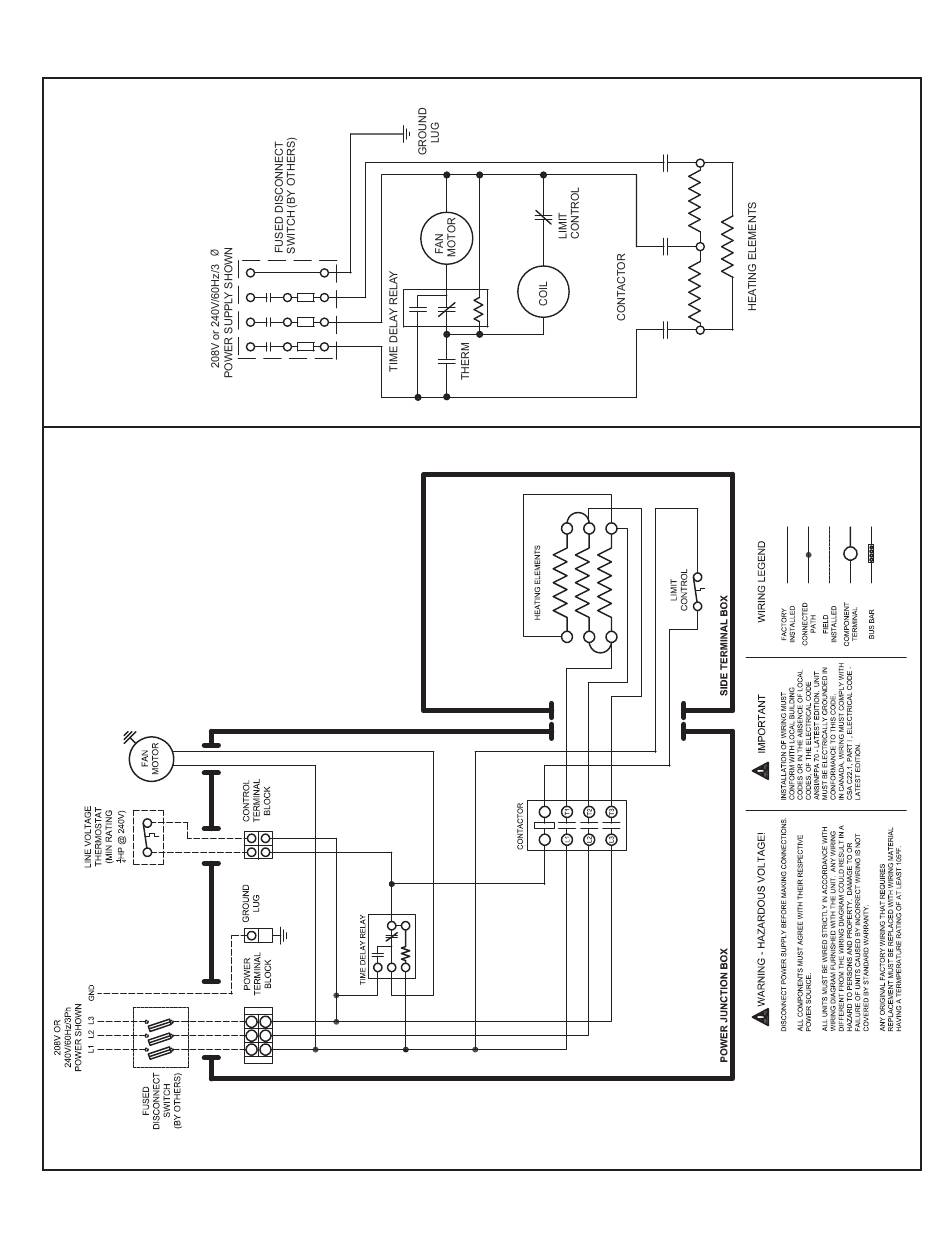

208V or 240-volt, three-phase power supply, 15kw, 20kw Vertical Models
13
