Modine Manufacturing VE Series Wiring Diagram page 5

Electric unit heaters
Hide thumbs

Advertisement

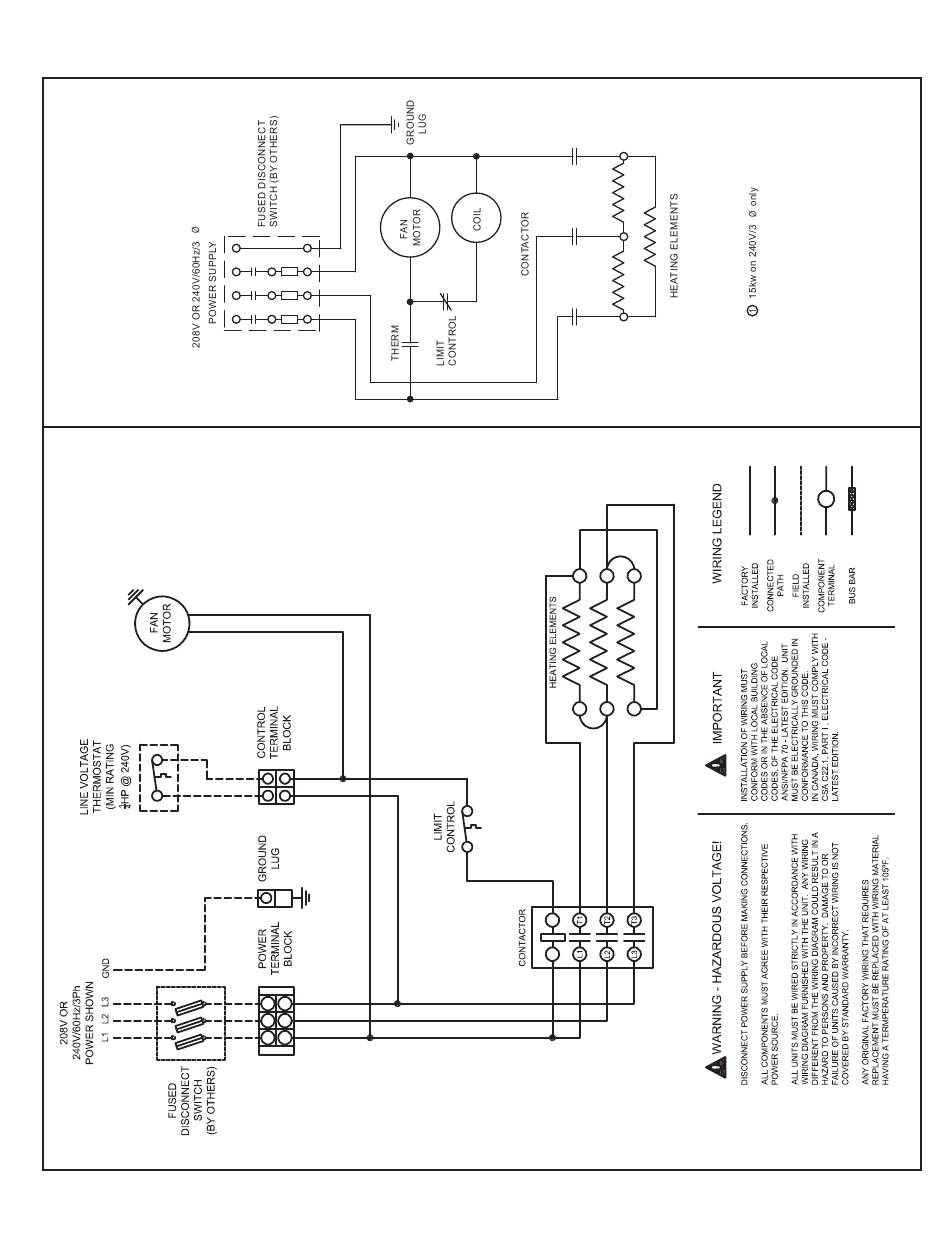

2-424.5 — WIRING DIAGRAMS MODELS HER, VE, PTE
5H70253A4 REV E
208V or 240V, three-phase power supply, 3kw, 5kw, 7.5kw, 10kw, 12.5kw, 15kw Horizontal Models
