2-424.5 — WIRING DIAGRAMS MODELS HER, VE, PTE
5H70253A1

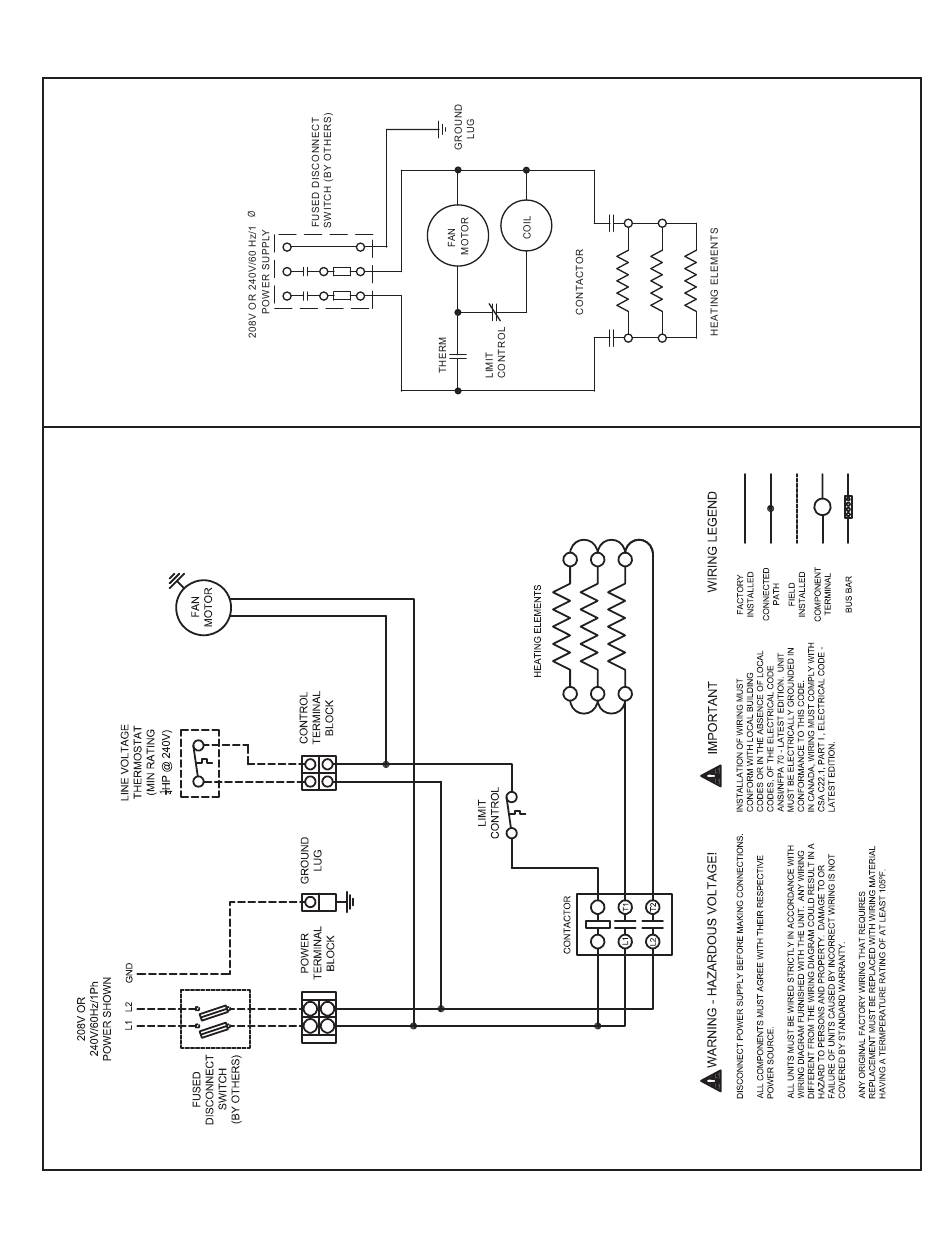

208V or 240V, single-phase power supply, 3kw, 5kw, 7.5kw Horizontal Models
3
