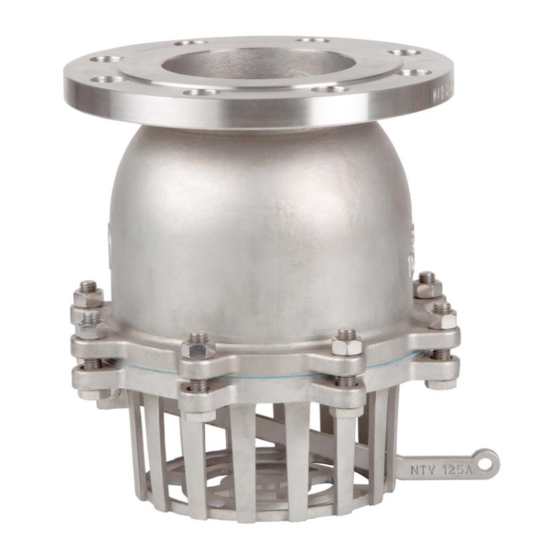

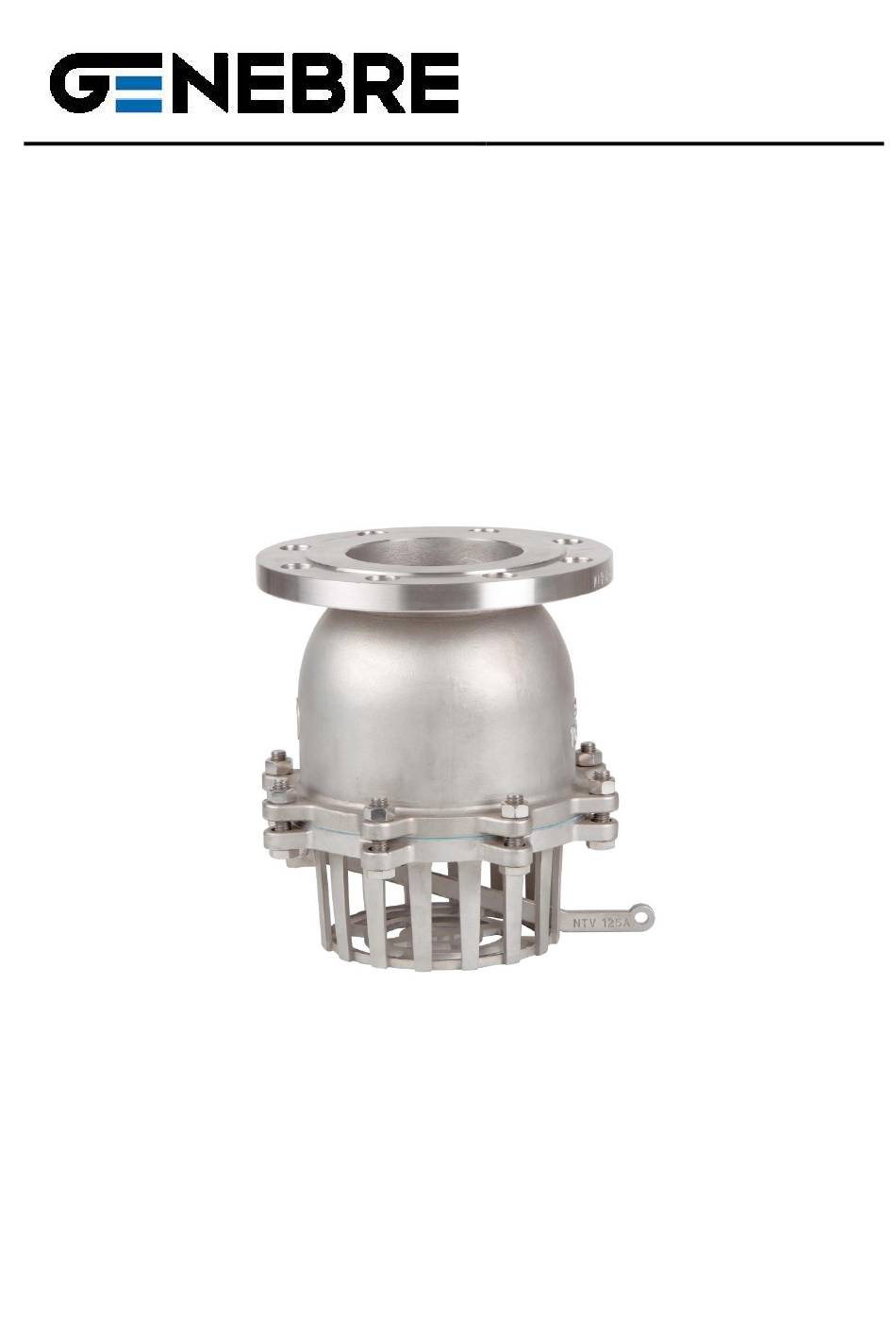

- Page 1 Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es INSTALLATION, OPERATION & MAINTENANCE MANUAL Foot Check Valve with Flanged End Ref. GENEBRE: 2448 GENEBRE S.A. FECHA DE REVISIÓN: 15/04/2020 NUMERO DE REVISIÓN: 1...
- Page 2 Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es INSTRUCTIONS FOR INSTALLATION, OPERATION & MAINTENANCE MANUAL 1. Assembly drawing ..................3 1.1 Parts list ....................... 3 2. Storage ......................4 3. Installation Instructions ................4 3.1 Preparation...
- Page 3 Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 1) Assembly drawing 1.1) Parts List Spare Part Nº Name Material Surface Treatment Code ----- Body Stainless Steel 1.4408 Shot blasting ----- Disc Stainless Steel 1.4408...
- Page 4 IMPORTANT: - Genebre foot check valve with flange (art. 2448) is designed for mounting with flange DIN PN16 . - Take the precaution of centring the valve with the axis of the pipe in order to ensure sealing between body and flange.
- Page 5 Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es - Leave enough space between the flange and the bottom so that the valve can be installed dismounted easily. - Tighten the screws of the flanges to hold the valve body firmly. Apply the alternate clamping method to ensure proper installation.
- Page 6 Do not forget to place the PTFE (part.6) gasket between both parts. 7) Opening Pressure The foot check valve with flange (art. 2448) has been designed to work with minimum opening pressure (for details see technical data sheet of the product).
- Page 7 Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 1) Wear eye protection. 2) Wear gloves and appropriate work clothes. 3) Wear safety shoes. 4) Wear a helmet. 5) Note the availability of running water.
