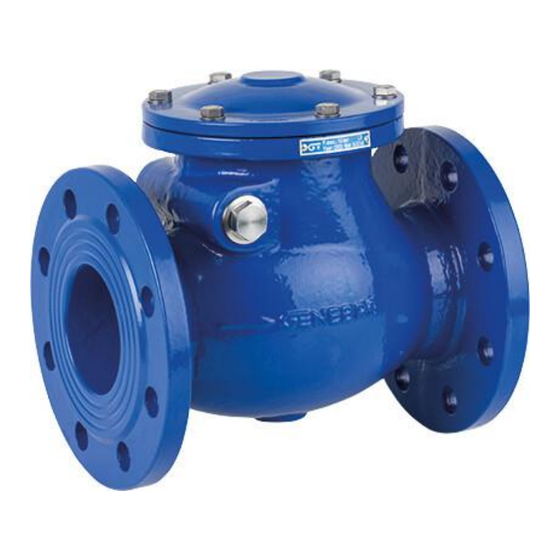

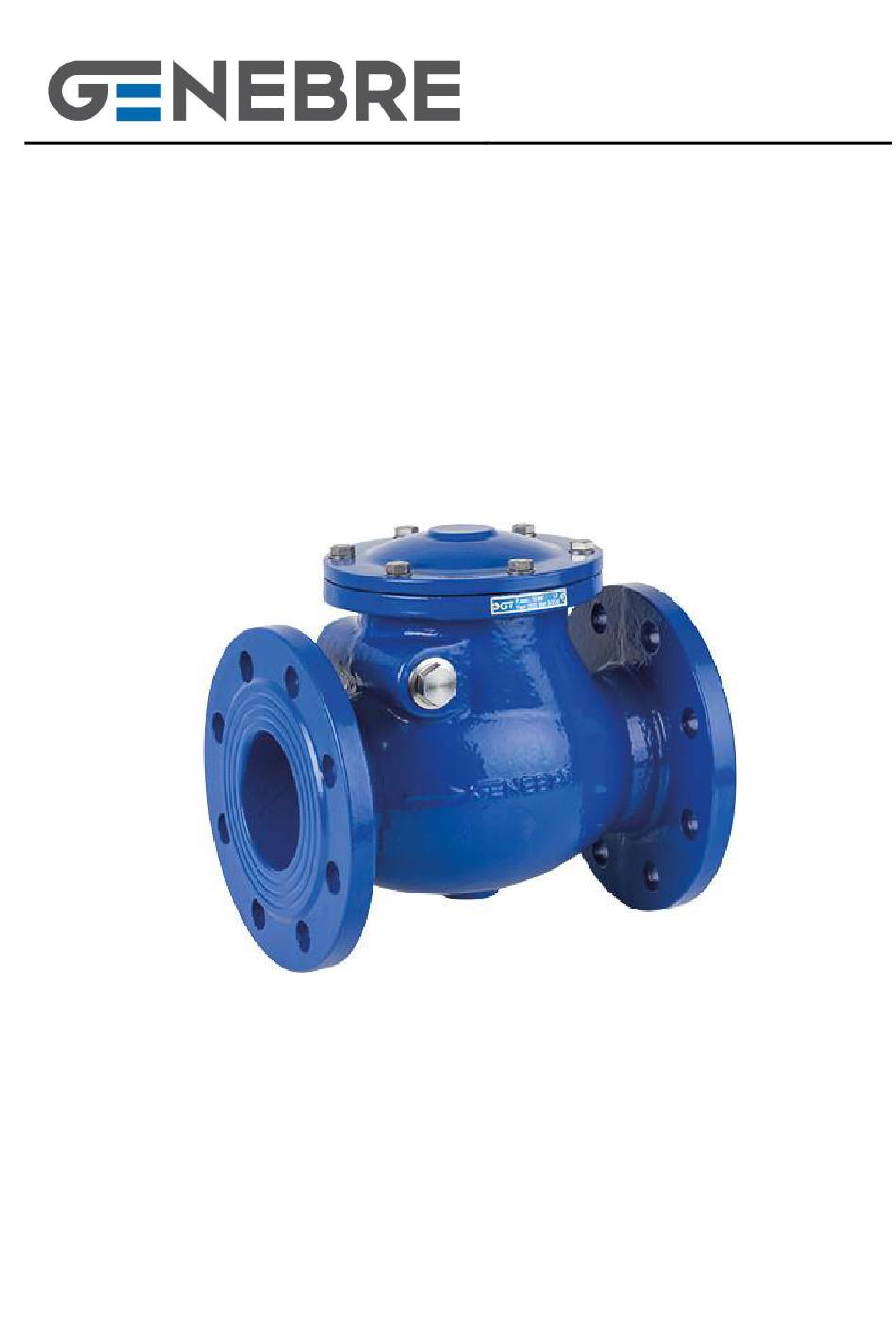

- Page 1 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es INSTALLATION, OPERATION AND MAINTENANCE MANUAL Swing Check Valve with flanges GENEBRE Reference: 2455 GENEBRE S.A. LAST UPDATE: 01/07/2024 UPDATE NUMBER: 0...
-
Page 2: Table Of Contents
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Installation, operation and maintenance instructions 1. Breakdown drawing......................3 1.1) List of components ......................3 2. Storage ..........................4 3. Installation instructions ......................4 3.1) Preparation ........................ -
Page 3: Breakdown Drawing
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 1) Breakdown drawing 1.1) List of components Acabado Superficial / Nº Denominación / Name Material Surface Treatment Fundición / Ductile Iron Cuerpo / Body... -
Page 4: Storage
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Acero Inox. / SS Arandela / Washer ------ AISI 420 Acero Inox. / SS Tuerca / Nut ------ AISI 304 Acero Inox. / SS... - Page 5 (COVER UPWARDS) (ASCENDANT FLUID) IMPORTANT: - Swing Check Valve by Genebre, S.A. (art. 2455) is designed to be assembled between flanges EN 1092 PN16. - Be extremely cautious when placing the valve in the center of the pipe axis to keep tightness between body and flanges.
-
Page 6: Operational Instructions
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 4) Operational instructions 4.1) Usage Check valves are mostly used to avoid fluid from going back to the system, by providing a leakproof lock when used adjusted to the pressure and temperature values for which they have been designed. -
Page 7: Reassembling
Reinstall the valve between flanges. See Installation instructions on page 4. 7.) Pressure for opening Swing Check Valve by GENEBRE, S.A. (art.2455) has been designed to work with minimal operational pressures (to obtain more information, please consult the technical specifications). - Page 8 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 1) Protect your eyes. 2) Wear gloves and appropriate working clothes. 3) Wear safety footwear. 4) Wear a helmet. 5) Have running water at hand.
