Design and function
Transport and installation
5.2.4.1

Connecting the shielding gas supply

Risk of injury due to improper handling of shielding gas cylinders!
Improper handling and insufficient securing of shielding gas cylinders
can cause serious injuries!
•
Place shielding gas cylinder into the designated holder and secure with
fastening elements (chain/belt)!
•
Attach the fastening elements within the upper half of the shielding gas
cylinder!
•
The fastening elements must tightly enclose the shielding gas cylinder!
An unhindered shielding gas supply from the shielding gas cylinder to the welding torch is a
fundamental requirement for optimum welding results. In addition, a blocked shielding gas
supply may result in the welding torch being destroyed.
•
Always re-fit the yellow protective cap when not using the shielding gas connection.
•
All shielding gas connections must be gas tight.
5.2.5

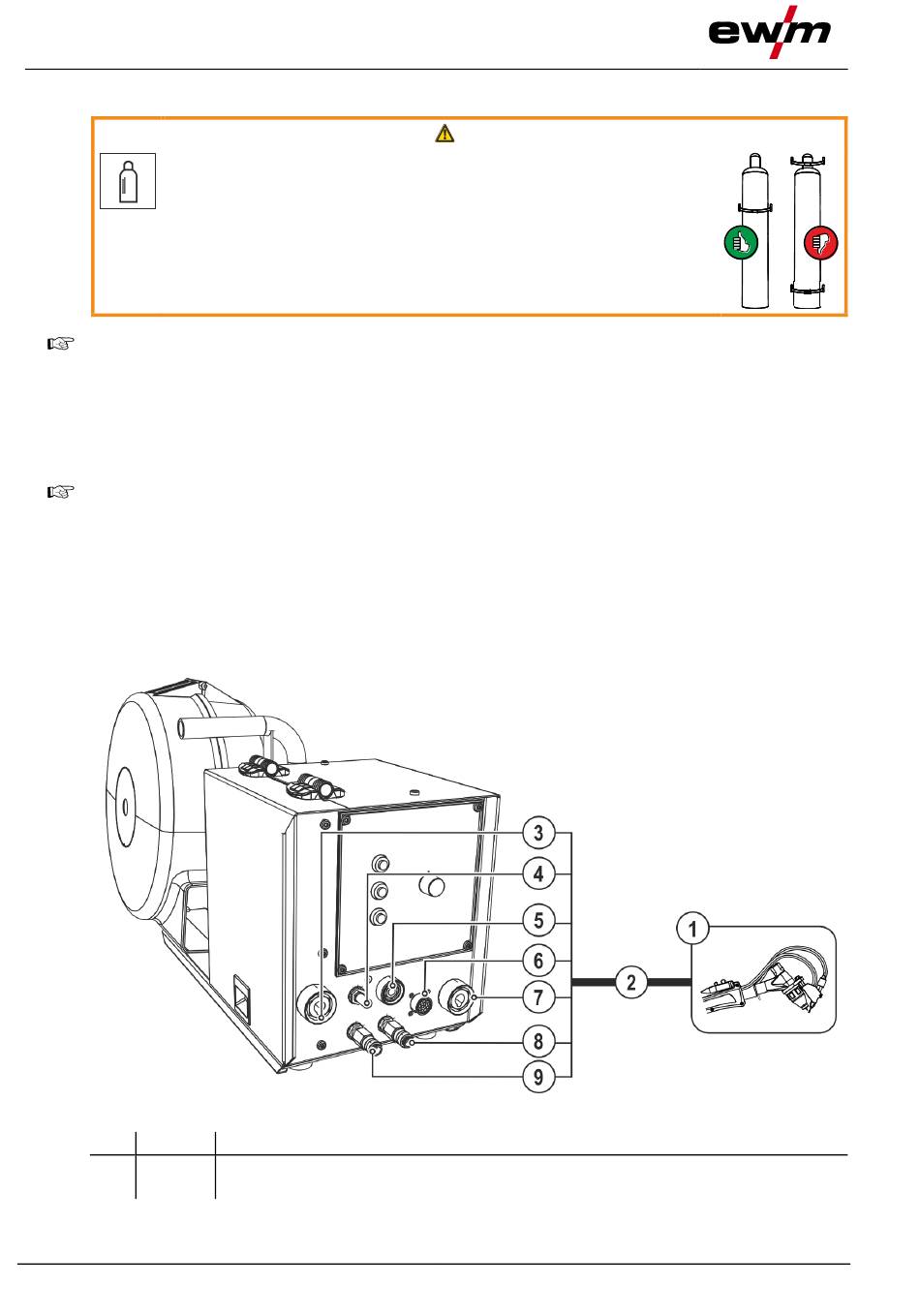

Welding torch connection

Equipment damage due to improperly connected coolant pipes!
If the coolant pipes are not properly connected or a gas-cooled welding torch is used, the coolant
circuit is interrupted and equipment damage can occur.
•
Connect all coolant pipes correctly!
•
Completely unroll the hose package and the torch hose package!
•
Observe maximal hose package length > see 5.2.2.2 chapter.
•
When using a gas-cooled welding torch, use a hose bridge to establish the coolant
circuit > see 9 chapter.
Prepare welding torch according to the welding task in hand (see operating instructions for the torch).
Item Symbol
1
20
Description 0
Welding torch
Observe additional system documents!
WARNING
Figure 5-8
099-000094-EW501
18.07.2017
