JGaurora JGMAKER Magic User Manual page 15

5th
print
er
6th

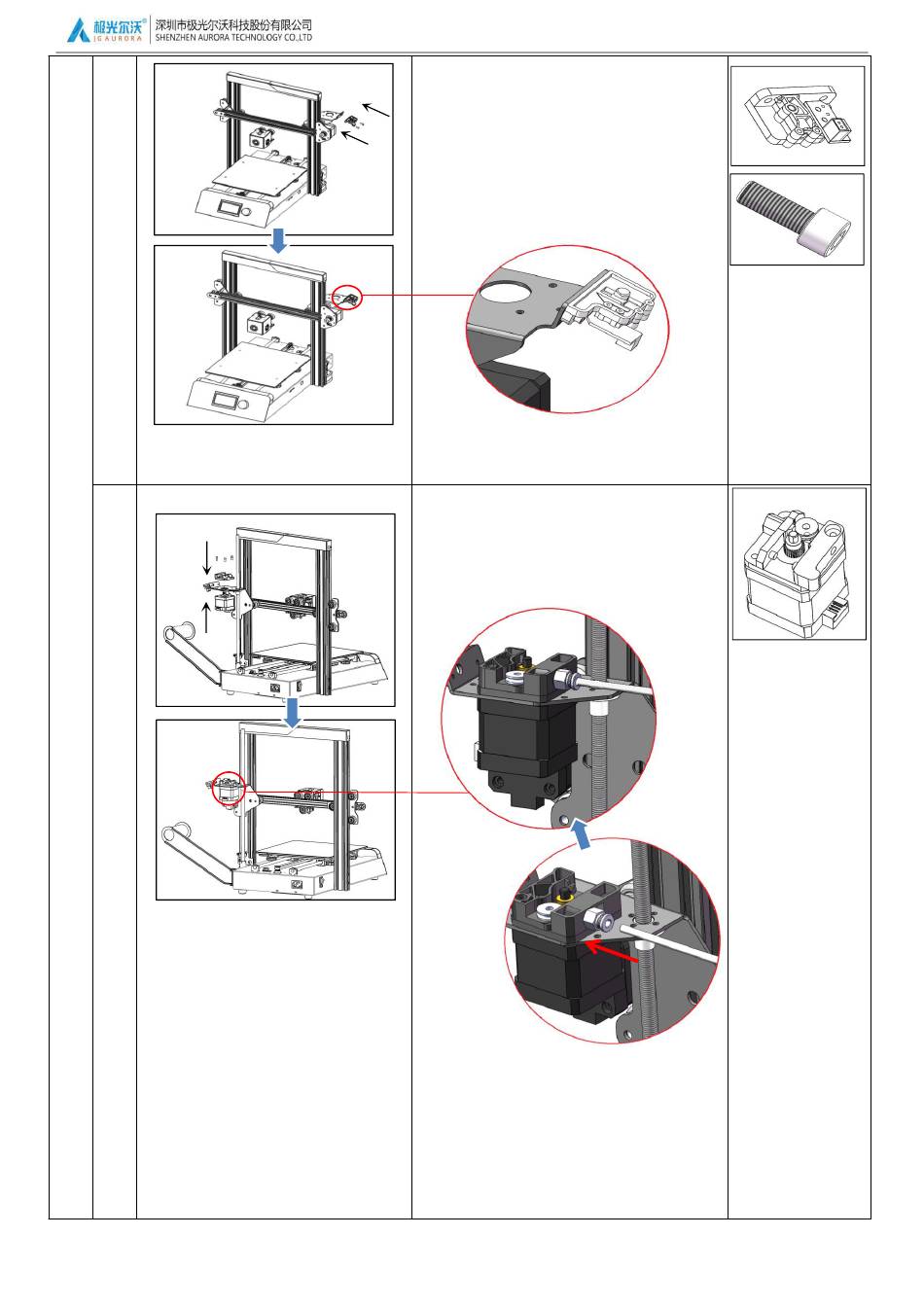

Note：When installing, the 3pcs screw on
the component should be unscrewed, the
feeding device and the motor should be
loaded from the top and bottom of the
mounting sheet metal, then reinstall the
removed 3pcs screw
Place the other end of the white
guide tube into the feed motor
in the direction of the arrow.
With User to Create Better Product
14
7. Filament Sensor
Base
screw M3*8
5. Feeding Suite
