- Page 1 INSTALLATION - OPERATION V 1.20 - 01/2010 SACOME, CONFIDENTIAL Document, it is forbitten to duplicate or communicate this document without previous authorization...
-
Page 3: Table Of Contents
INSTALLATION......................2 Machine presentation .......................2 1.1.1 Models available ...........................2 1.1.2 Accessories supplied with the machine: ..................2 Water supply connection......................2 Boiler volume..........................3 Power connection ........................3 First installation – Coffee boiler filling ..................4 Safety for the user ........................5 OPERATION ........................6 Presentation ..........................6 2.1.1 The machine ..........................6 2.1.2 Control panel..........................7... -
Page 4: Installation
1. INSTALLATION 1.1 Machine presentation 1.1.1 Models available Standard unit: coffee & hot water Token slot unit: coffee (+ hot water option) Combined unit: coffee/hot water / steam Cappuccino unit: coffee / hot water / steam / milk drinks 1.1.2 Accessories supplied with the machine: Ref. -
Page 5: Boiler Volume
Boiler volume Steam Boiler : 3.5 liters Coffee Boiler : 1.2 liters 1.4 Power connection Connect the machine to the power supply observing the wires Phases / Neutral / Earthing. tandard supply: 400 V AC (400 Volts three phase + Neutral) 3P N PE Cable 5 x 2.5 380V... -
Page 6: First Installation - Coffee Boiler Filling
1.5 First installation – Coffee boiler filling For the first installation the coffee boiler has to be filled. This operation has to be carried out by a technician of the CONTI network with the Technical card. (See chapter 2 - presentation of the control panel). -
Page 7: Safety For The User
1.6 Safety for the user In order to have an optimal use of the machine, some safety devices have been put in the machine: When the user remove the coffee ground drawers: 2 cases : If the user remove the coffee ground drawer when the machine is on a waiting mode: The machine return to a normal functionning when the user replace the drawer (Do not forget to empty it, because the coffee ground counter is erased after 10 secondes) If the user remove the coffee ground drawer when the machine is making a coffee:... -
Page 8: Operation

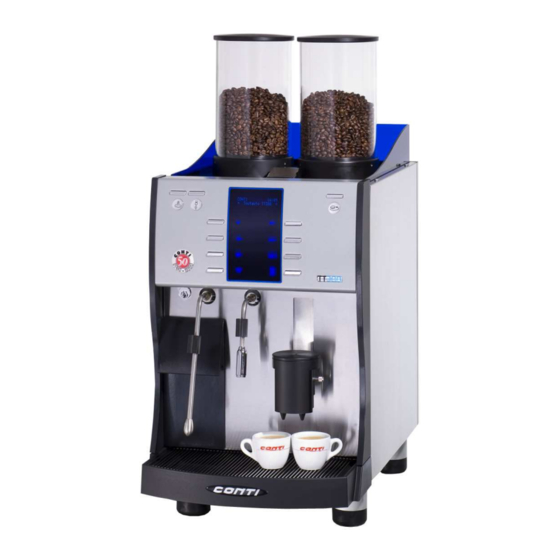

2 OPERATION Presentation 2.1.1 The machine Coffee hopper for right grinder Coffee hopper for left grinder Decaf’ slot Control panel Indicator Lock with key Card reader Hot water outlet Height adjustable outlet Steam outlet Coffee outlet Coffee grounds drawer Basin Feet ON/OFF switch (under the basin) -
Page 9: Control Panel
2.1.2 Control panel STEAM / HOT WATER STEAM / HOT WATER DISPLAY CLEANING / RINSING 8 DUAL PRODUCT BUTTONS CARD READER RINSING / CLEANING : Simple click: to carry out 1 or several Rinse cycles according to the programmation. Keep pressed 5 sec: to carry out 1 or several Clean cycles according to the programmation. -
Page 10: Programming Buttons
2.1.3 Programming buttons Function of the buttons in programming mode: ENTER To change the values of the parameters. To browse and choose a menu. ENTER To choose the programm To go forward in the menu To go back in the programmation Under the machine : ON/OFF : To go back in the programmation... -
Page 11: Switch On & Off
-------- Press ON/OFF under the machine. The group will be initialized. The display will show for a moment: Steam boiler filling Then the display will show: CONTI HH:mm Toutauto TT388 The asterisks indicate that the machine is heating. Left asterisk:... -
Page 12: Delivery Of Beverages
Delivery of beverages 2.3.1 Coffee delivery The machine is switched on and ready. CONTI HH:mm The display shows: Place the cups beneath the coffee outlet: Press the coffee button: Simple click: one espesso Double click: 2 of the same product... -
Page 13: Decaf Delivery - Decaf Slot
Decaf delivery – decaf slot With the measuring spoon fill into the slot a measure of decaffeinated coffee powder (8 grams) The machine is switched on and ready. CONTI HH:mm The display shows: Place the cups beneath the coffee outlet: Press the Decaf button: No double click for this function. -
Page 14: Tea Delivery
2.3.3 Tea delivery CONTI HH:mm The machine is switched on and ready. The display shows: Place a pitcher beneath the water outlet: Press the tea button: The hot water is flowing. The display shows: Simple click or double click: delivery of different measures:... -
Page 15: Heating-Up A Product With Steam
2.3.4 Heating-up a product with steam CONTI HH:mm The machine is switched on and ready. The display shows: Plunge the steam wand into the cup or the pitcher: Press the steam button: The machine delivers steam. The display shows: STEAM Simple or double click: delivery of different quantities of steam. -
Page 16: Cappuccino Delivery
2.3.5 Cappuccino delivery The machine is switched on and ready. The display shows: CONTI HH:mm Place the cappuccino cup beneath the outlet. Adjust the height of outlet according to the height of the cup. Press the Cappuccino button: Simple click: 1 cappuccino... -
Page 17: Rinsing
The rinsing has to be carried out regularly (see chapter Maintenance) After a certain number of coffees delivered After a stillstand of the machine The machine is switched on and ready. CONTI HH:mm The display shows: The rinse button is at the right upper side... - Page 18 L a R u c h e - 1 , A v e n u e A l b e r t I I - B . P . 1 1 9 - M C 9 8 0 0 7 M O N A C O C e d e x T é...
