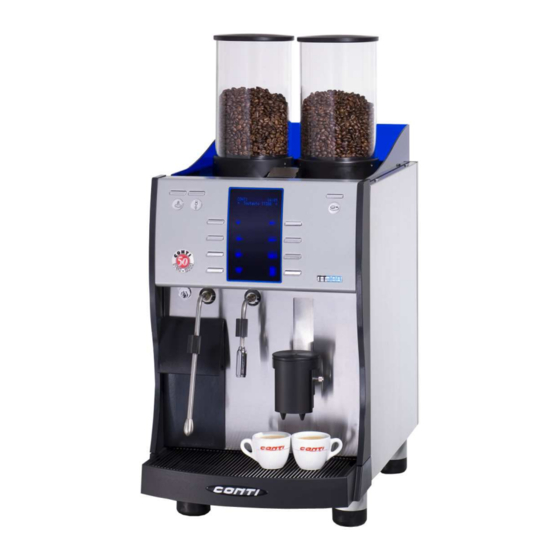

Summary of Contents for Conti TOUTAUTO 388

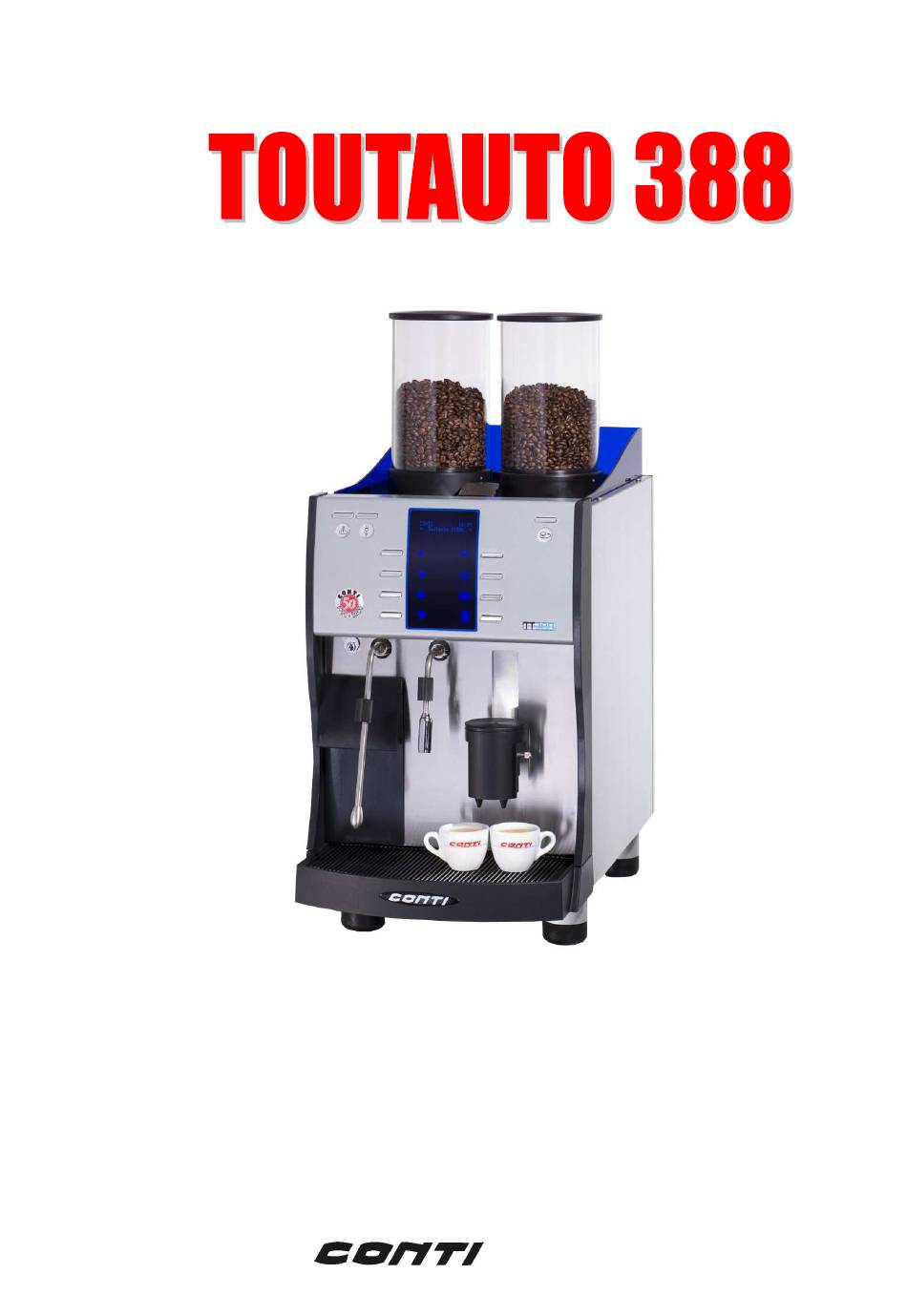

- Page 1 PARAMETERS - PROGRAMMING INSTRUCTIONS V 1.20 - 01/2010 SACOME, CONFIDENTIAL Document, it is forbitten to duplicate or communicate this document without previous authorization...
-
Page 3: Table Of Contents
ADJUSTEMENT OF THE BAR PARAMETERS............3 Programming of the BAR menu ....................3 Adjustement of the coffee temperature..................3 Menu "Infos display".........................3 Menu "Product parameter adjustment" ..................3 PROGRAMMING INSTRUCTIONS ................4 Enter the programming mode ....................4 General view of programming steps ..................5 Access to level 1 (Technical / Factory) ..................7 SET UP.............................8 2.4.1 Browsing ............................8... - Page 4 2.7.6 Time Out Auto Rinsing........................25 2.7.7 Start-up rinsing..........................25 MENU: Filling-up ........................26 MENU: Set-up Encoder......................27 2.9.1 Manual Motion of the Piston .......................27 2.9.2 Maximum Superior motor Impulses ...................27 2.9.3 Superior Motor Stand-by Postion Impulses ................27 2.9.4 Superior Motor Delivery Position Impulses ................28 2.9.5 Maximum Inferior Motor Impulses....................28 2.9.6...
-
Page 5: Adjustement Of The Bar Parameters
1. ADJUSTEMENT OF THE BAR PARAMETERS 1.1 Programming of the BAR menu CONTI HH:mm The display shows: Insert the BAR Chip card. The display shows: CONTI HH:mm Chip Card Press at the same time the "Rinse button" and "+". The display will show: Coffee boiler T°... -
Page 6: Programming Instructions
2 PROGRAMMING INSTRUCTIONS Enter the programming mode CONTI HH:mm Insert the appropriate chip card: BAR, TECHNIC, MANAGEMENT or FACTORY (on specific request only) The display shows: CONTI HH:mm Chip Card Press in same time "ESC" and "+". Depending on the chip card the display will show: Service Coffee boiler T°... -
Page 7: General View Of Programming Steps
Products Cleaning SET UP Info Display Test Grinder Adjustments Rinsing Language Beverage type Beverage type Beverage type Beverage type Beverage type Beverage type Test Grinder Grp Cleaning Alarm English coffee Décaf Steam Milk products Coffee + Milk select product Machine Select Name Select Name Select Name... - Page 8 Smart Card Program Filling Up Set-up Encoder Service Update Data Saving Test Operat. Elemnt Management param.default software Smart Card machine --> card machine --> card Confirm Test Operat. Elemnt System Data Payment system Alarm History Product Information System code > card -->...
-
Page 9: Access To Level 1 (Technical / Factory)
Access to level 1 (Technical / Factory) ENTER Set Up ESC ON / OFF Info Display ENTER (See menu "Info Display") ESC Product ENTER adjustment ESC ENTER Grinder ... -
Page 10: Set Up
2.4 SET UP 2.4.1 Browsing Language Language Language ENTER SET UP English - French - German ESC ENTER ENTER ENTER Machine Machine Machine... - Page 11 – to change the coefficient of the PID regulator ESC 0.04 10.0 ENTER PID T° regulation – to change the PID regulation field ESC range from: 2° C to 10° C ENTER Grounds Number –...
-
Page 12: Language
2.4.2 Language Choose the language to be displayed. ENGLISH/ ITALIEN / FRENCH / GERMAN 2.4.3 Machine type Declaration of the machine type for the elecontronic mainboard: Coffee version: the mainboard manages the coffee boiler. Combined version: the mainboard manages the 2 boilers (level probe, pressostat, …) Cappuccino version: the mainboard manages also the milk unit (rinsing cycle, …) 2.4.4... -
Page 13: Display Coffee Boiler T
2.4.7 Display coffee boiler T° If activated The temperature will be shown CONTI HH:mm Instead of: Toutauto TT388 CONTI HH:mm Will be displayed: 92.5 ° C 2.4.8 PID parameters PID = automatic adjustment of the heating power to assure an optimal temperature stability in the coffee boiler. -
Page 14: Pid Regulation Field
2.4.9 PID regulation field To programm the PID regulation field. between 2° C and 10 ° C. The PID functions when the boiler T° has reached th e programmed T° – regulation field. Example : programmed T° = 95 ° C – PID regulation fi eld = 5° C PIDT°... -
Page 15: Service Group
2.4.12 Service group Example: Service group 8995 cycles Programmation of the number of cycles when the machine will display: SERVICE GROUP After this message the service has to be carried out by a technician. Then reset the machine in menu "SERVICE". -
Page 16: Infos Display
2.5 Infos display 2.5.1 Mode of navigation in the menu Info Display ENTER Date / Hour Restaurant name Service name Service phone - - - ENTER ENTER ENTER ENTER (See explanations below) Restaurant name... -
Page 17: Service Name
2.5.4 Service name Menu which allows to write the "Name of the maintenance company", that must be called in the event of breackdown: Service Name Service Name The cursor blinks under the 1° field ENTER Choice the letter with Press ENTER to validate The cursor moves to the next field: Service Name The cursor blinks under the 2°... -
Page 18: Informations Showed On The Display
2.5.6 Informations showed on the display: When an message error appears, on the display it's shown the following sequence: "message" "phone to" "Number phone" "Service name" Only the following messages are concerned by the calling of the maintenance: " ERROR DATA "... -
Page 19: Menu: Programming Measures
2.6 MENU: Programming Measures 2.6.1 Product definition MODE Product adjustment ENTER Select button ESC MODE Press the button ENTER Beverage type (see menu "coffee products") ESC coffee Beverage type ENTER (see menu "decaf ") decaf ... -
Page 20: Menu: Coffee Products
2.6.2 Menu: Coffee Products Beverage type ENTER Select name Select name ESC Coffee Espresso 2 Espresso (see product list) ENTER ENTER Name – to adjust the coffee grind quantity on the left grinder ... -
Page 21: Menu: Decaf
2.6.3 Menu: Decaf ENTER Beverage type Decaf – to adjust the tamping of the grind ON/OFF Decaf Packing 0 light / 3 heavy ENTER Decaf – to adjust the time On of the preinfusion ESC Preinfusion Ton 1.0 sec value: seconds... -
Page 22: Menu: Tea
2.6.4 Menu: Tea ENTER Beverage type ON/OFF - Pump enabled Pump disabled ENTER ENTER – to adjust the tea quantity ESC Water 5.0 sec value: seconds ... -
Page 23: Menu: Milk Products
2.6.6 Menu: Milk products ENTER Beverage type Select name Select name ESC Milk Espresso 2 Espressos (See list of products) ENTER ENTER Name – to adjust the milk quantity (without froth) ESC Hot milk 5.0 sec ENTER... -
Page 24: Menu: Coffee & Milk Products
2.6.7 Menu: Coffee & Milk products ENTER Beverage type Select name Select name ESC Coffee+ Milk Espresso 2 Espressos ENTER (See list of products) ENTER Name – to adjust the grind amount on the left grinder ... -
Page 25: Menu: Grinding Test
2.6.8 Menu: Grinding test Grinding test Grinding test ENTER Select button ESC Remove coffee grounds drawer Insert a container or a sheet of paper Select button (with or without double click) the grinder delivers a measure of grind: X seconds right grinder Y seconds left grinder The group is carrying out a packing cycle. -
Page 26: Menu: Cleaning / Rinsing
2.7 MENU: Cleaning / Rinsing ENTER cleaning Group cleaning alarm Group cleaning alarm ESC - rinsing 50 cycles ENTER Compulsory cleaning Compulsory cleaning – ESC - 20 H 30 to change the time ENTER... -
Page 27: Switch Off Cleaning
After 30 minutes without coffee delivery the rinsing will start automatically: Rinsing After the rinsing the display will show: CONTI HH:mm The machine will be ready again for coffee delivery 2.7.7 Start-up rinsing When this option is enabled the machine will automatically start RINSING when switching ON the... -
Page 28: Menu: Filling-Up
2.8 MENU: Filling-up 1st filling of the coffee boiler to evacuate air in the coffee boiler. ENTER Filling-up The pistons are put in place (the infusion chamber is closed) Filling up Presser stop button When water flows from the outlet press the blinking button Filling up Please wait... -
Page 29: Menu: Set-Up Encoder
2.9 MENU: Set-up Encoder ENTER Set up Encoder Hight 14 T > T 536 ENTER MaxSupMotor Impuses – to change value ENTER SupMotorStand-bypos.imp. – to change the value ENTER SupMotorDeliv.Pos.Imp – to change the value ENTER MaxInfMotorImpulses – to change the value ENTER InfMotorExpelimpulses –... -
Page 30: Superior Motor Delivery Position Impulses
2.9.4 Superior Motor Delivery Position Impulses To program the position of the maximum discharge of the superior piston (before stop 555). In the factory the piston is programmed to stop his stroke at 555 increments. When this value is not reached at the downstroke of the piston, the machine considers that the piston is outside of the infusion chamber. -
Page 31: Menu: Test Operating Elements
2.10 MENU: Test Operating elements Test Operat. Element ENTER Test Operat. Element Test Operat. Element Motor-Pump ESC + Water supply Test Operat. Element Test Operat. Element + solenoid valve Cleaning solenoid Test Operat. -
Page 32: Menu: Service
2.11 MENU: Service 2.11.1 General ENTER ENTER Service Product information ESC ESC ENTER System data ESC ESC ENTER Access with Management card Payment system See CHAP 10: token slot unit ... -
Page 33: System Data
2.11.3 System data System data ENTER Cleaning ENTER Cleaning ENTER (2 seconds) ESC ESC Confirm reset Cleaning Last cleaning ESC AA:MM:JJ HH:mm Service group ENTER Service group ENTER (2 seconds) ... -
Page 34: Smart Card Management
2.12 Smart card management ENTER Smart Card Manager ENTER Smart card System code +/- to MODIFY SYSTEM ESC ESC 65535 System code CODE Enter: to confirm ESC Smart Card ENTER Create Bar Card Create Bar Card... -
Page 35: Software Up-Date
2.14 Software up-date ENTER Up-date software ESC - Card Machine Machine card ENTER Remove Remove Smart Card Smart Card Insert Insert CardDisk CardDisk Swith off and on Switch off and on 2.15 Preset parameters ENTER Preset Please confirm... -
Page 36: Product Designations
3 PRODUCT DESIGNATIONS FRENCH ENGLISH DEUTCH ITALIAN Vapeur Steam Dampf Steam Thé RISTRETTO RISTRETTO RISTRETTO RISTRETTO 2 RISTRETTO 2 RISTRETTO 2 RISTRETTO 2 RISTRETTO ESPRESSO ESPRESSO ESPRESSO ESPRESSO 2 ESPRESSOS 2 ESPRESSO 2 ESPRESSO 2 ESPRESSI CAFE COFFEE COFFEE CAFFE 2 CAFES 2 COFFEE 3 COFFEE... -
Page 37: Beverage Parameters
4 BEVERAGE PARAMETERS Recommanded values for the coffee products BEVERAGE TYPES Menu Espresso Ristretto Coffee Americano Coffee long Breakfast Decaf 2 Espresso 2 Ristretto 2 Coffees 2 Americanos 2 Coffees long 2 Breakfast 2 Decaf Beverage type Coffee Coffee Coffee Coffee Coffee Coffee... -
Page 38: Recommanded Values For Coffee + Milk Beverages
Recommanded values for coffee + milk beverages Beverage types coffee + milk Menu Espresso Coffee + milk Cappuccino Macchiatto Latte macchiatto Café créme Noisette Latte macchiatto Beverage type Coffee + milk Coffee + milk Coffee + milk Coffee + milk Coffee + milk Café... - Page 40 L a R u c h e - 1 , A v e n u e A l b e r t I I - B . P . 1 1 9 - M C 9 8 0 0 7 M O N A C O C e d e x T é...
