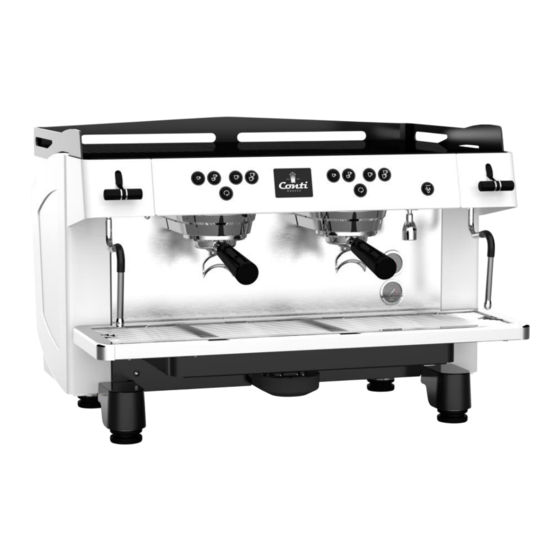

Conti NGC Technical Documentation Manual
  1. Manuals
  2. Brands
  3. Conti Manuals
  4. Coffee Maker
  5. NGC
  6. Technical documentation manual

Conti NGC Technical Documentation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
NGC

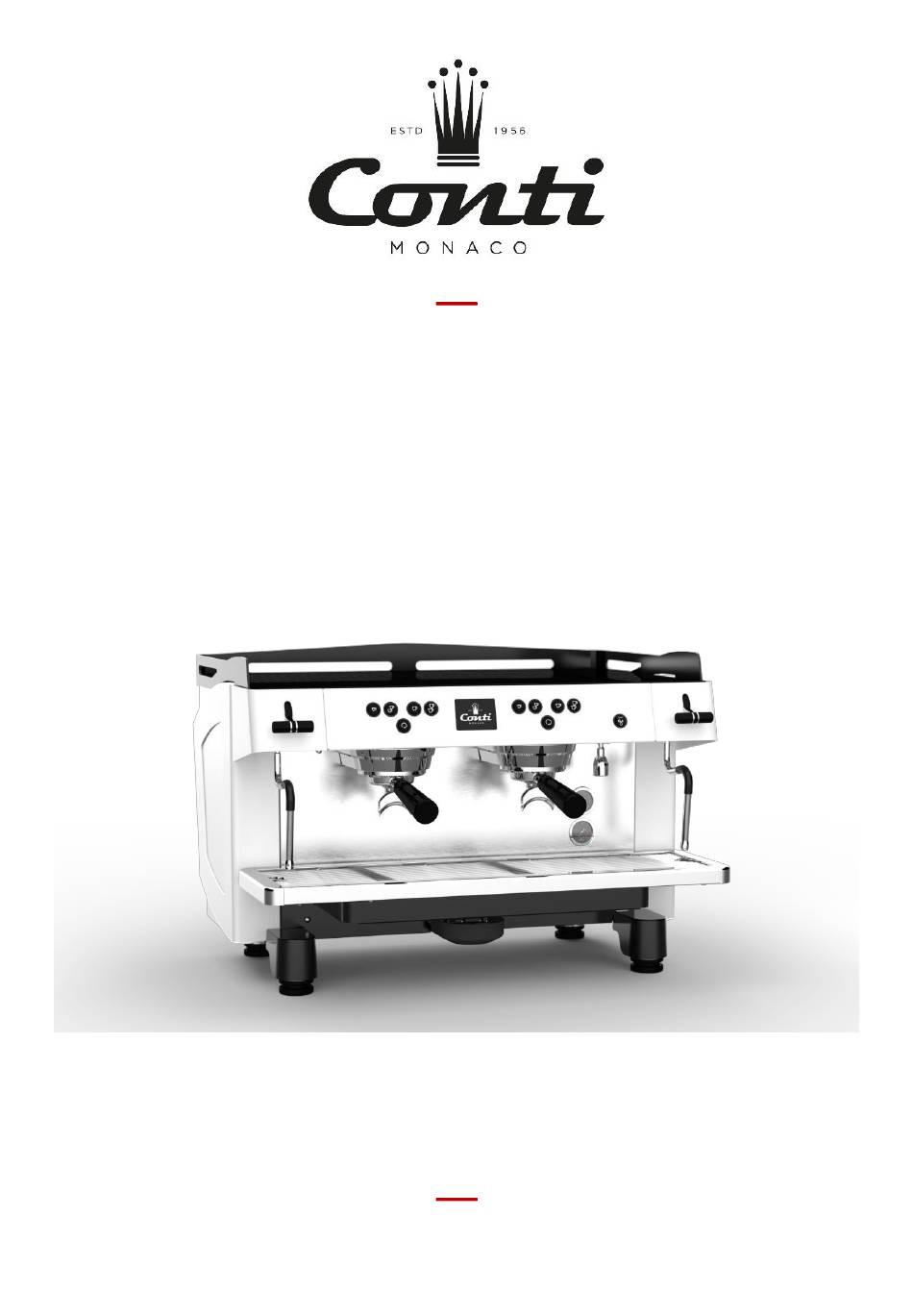

TECHNICAL DOCUMENTATION
Edition 05/2024
SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.

Advertisement

loading
Need help?

Need help?

Do you have a question about the NGC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Conti NGC

Summary of Contents for Conti NGC

  • Page 1 TECHNICAL DOCUMENTATION Edition 05/2024 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 2 TROUBLESHOOTING TOOLS ___________________________________________________________ 42 ELECTRONIC DIAGRAM _______________________________________________________________ 44 HYDRAULIC SCHEMA _________________________________________________________________ 48 OPTION AVAILABLE __________________________________________________________________ 49 Edition 05/2024 - NGC - Technical Documentation - page 2 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 3 CAPACITY OF BOILER IN LITERS TOTALE VOLUME of HOT WATER VOLUME of STEAM WEIGHT WEIGHT WHEN (Kg) WORKING (Kg) DIMENSIONS Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 4 • For the correct operation the minimum inlet water pressure should be 0,15 MPa and the maximum inlet water pressure should not exceed 0,6 MPa Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 5 • At end of life, this product must be returned to a collection point or returned to an authorized dealer. By doing so, you will help to protect the environment and human health. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 6 SUPPLYING VOLTAGE According to the model: • 230V – 50/60Hz Monofase • 400V – 50/60Hz Trifase Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 7 ▪ The changing cartridges is carried out by the technical service, at intervals to be determined Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 8 • The water level in the boiler is controlled by the electronics through the level probe. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 9 It is equipped with a bypass system that allows self-regulation. Thus, the simultaneous operation of all groups does not impact this setting. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 10 The internal duct of the steam wand is flushed by a short downward pulse on the lever to release a jet of steam. Steam can also be used for sterilization and glass chambering. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 11 Hot water is dispensed through the outlet located under the electric control "E": The display shows: Be careful not to burn yourself with pressurized water splashes. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 12 Dose discontinuation is done automatically when the scheduled dose is reached • The extraction can be stopped at any time by pressing the product button again Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 13 In the event of a prolonged shutdown, remove the portafilter from the unit and eject the worn grounds. Dissolve a Conti detergent tablet (reference: 466662) in hot water, soak the filter holder and filter to ensure that the whole is kept clean.
  • Page 14 The machine remains ready to use, the home page returns as soon as you press the screen. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 15 • Press the key and then the key without releasing the n°5 key. The display shows: Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 16 • Cleaning up one group does not prevent making coffees on the other groups. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 17 Press the key and then the key without releasing the n°5 key.  • Press the key Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 18 1 espresso = 2,5 cl / 2 espressos = 5 cl / 1 coffee = 4,5 cl / 2 coffee = 9 cl The display shows: Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 19 Push hot water key to start the flow and push again when the water volume is correct. • You can use hot water key after the message “Doses programming” disappears. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 20 Press the key to enter the menu you want to edit. Recall of the programming keys: Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 21 The display shows:  Press 2 times to confirm and return to the previous menu. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 22 The display shows:  Press 2 times to confirm and return to the previous menu. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 23 The display displays the INSTALLATION menu on 3 pages:   Press to switch to the different installation menus. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 24  Press to confirm and return to the previous menu. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 25 To enable the feature, push on The display shows.  Press to confirm and return to the previous menu. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 26 "When the programmed water volume is reached, an alarm message appears (See chapter 'Alarms'). To reset this alarm, refer to the chapter 'Resetting Alarms'." Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 27 "When the programmed water volume is reached, an alarm message appears (See chapter 'Alarms'). To reset this alarm, refer to the chapter 'Resetting Alarms'." Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 28  Push on to confirm and return to the previous menu. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 29 Push on The display shows 2 pages for the “Coffee quality”:   Push on to navigate. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 30 The display shows.  Push on to confirm and return to the previous menu. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 31 The display shows.  Push on to confirm and return to the previous menu. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 32 Nota : All groups have the same programming for the pre-brewing. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 33 Nota : All groups have the same programming for the infusion. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 34 The display shows.  Push 2 times on to confirm and return to the previous menu. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 35 By default ➔ °C Nota : When you change the unit, all values are automatically converted. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 36 Bu default ➔ OFF. The display shows. 11.6.4 Alarm reset Check the chapter « Alarm reset » Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 37  Push on to adjust.  Push on to confirm and return to the previous menu. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 38 The display shows.  Push on to confirm and return to the previous menu. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 39 Pressing the 'Double espresso' or 'Double coffee' button counts as 1 product but 2 products in the total. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 40 “Alarm reset” menu. Push on The display shows.  Push on to reset the alarm. The display shows. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 41 The display shows. After few seconds, the display shows.  Push on to get out. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 42 A factory reset can be attempted in case of unexplained malfunction of the machine. This procedure results in a complete loss of all system data. Enquire with your agency. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 43 The machine on « Cold mode ». It operates normally but remains cold. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 44 Green bleu Blue bleu foncé Blue dark violet violet gris Grey blanc White noir black Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 45 15.2 ELECTRICAL HEATING CIRCUIT FOR CC100 2G (3300W) 230V 50/60HZ Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 46 15.3 ELECTRICAL HEATING CIRCUIT Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 47 15.4 ELECTRICAL HEATING CIRCUIT For CC100 3G (6000W) 400V 50/60Hz trifase Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 48 16 HYDRAULIC SCHEMA Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 49 It is compulsory to fill up manually the silicone pipe with water before first starting the machine for the pump to prime properly, without risk of deterioration. Edition 05/2024 - NGC –Technical documentation – page 1 SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
  • Page 50 S a c o m e , L a R u c h e , 1 A v e n u e A l b e r t I I , B . P . 1 1 9 9 8 0 0 7 M o n a c o C e d e x E-mail: conti@conti-espresso.com Tél : +377 93 10 43 43...
