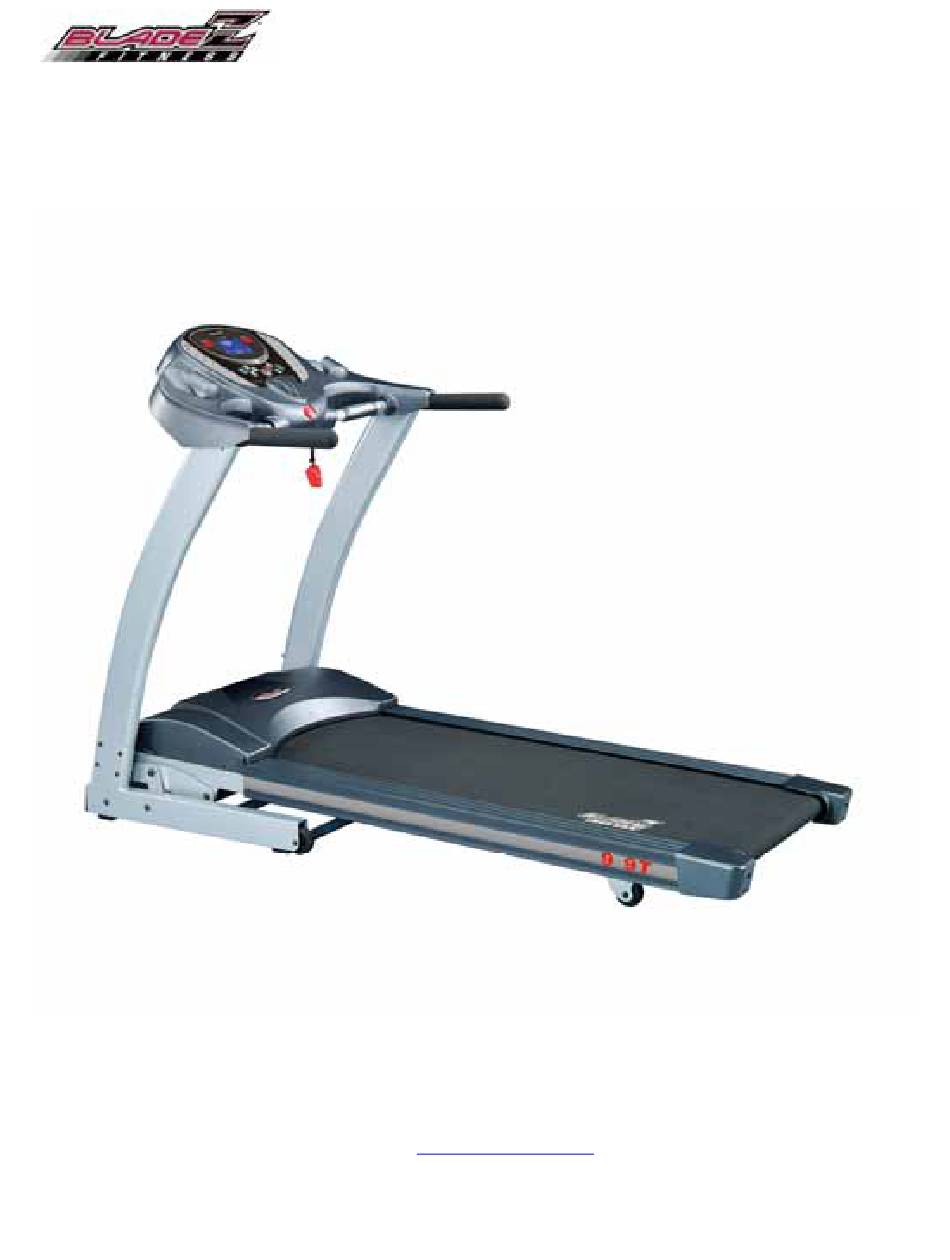

- Page 1 BLADEZ 9.9T OWNER’S MANUAL BLADEZ Corporation 20155 Ellipse Foothill Ranch, CA 92610 Phone: 949-206-8152 Fax: 949-206-0013 Email: f itness@ebladez.com Revision Date: 11/20/06...
- Page 2 INTRODUCTION: ongratulations for selecting the 9.9T by BLADEZ as your primary source of fitness equipment. BLADEZ treadmills offer many exercise programs that benefit users of all levels and ages. The treadmill is designed to make your workouts more effective and enjoyable.
-
Page 3: Table Of Contents
1. IMPORTANT SAFETY INSTRUCTIONS ...............4 2. ASSEMBLY INSTRUCTIONS.................6 3. GETTING STARTED....................9 4. WORKOUT PROGRAM DETAILS .................13 5. PROGRAM PROFILES ....................17 6. PREVENTIVE MAINTENANCE................20 7. TROUBLESHOOTING.....................21 8. WARRANTY......................23 BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com... - Page 4 BEFORE YOU BEGIN We recommend that you become familiar with the frequently used components of your Treadmill. This will assist you in making your workouts more enjoyable. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
-
Page 5: Important Safety Instructions
15. To disconnect, turn all controls to the off position, then remove plug from outlet. 16. Connect this appliance to a properly grounded outlet only. 17. This appliance is intended for household use only. SAVE THESE INSTRUCTIONS BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com... - Page 6 No adapter or extension cord should be used with this product. GROUNDING METHODS GROUNDED OUTLET GROUNDING BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
-
Page 7: Assembly Instructions
Computer Console Allen M8xP1.25x15 Frame Allen Bolt M8xP1.25x60 Left Upright SILICON Right Upright Allen Wrench 6mm Handrail Cover Allen Wrench 5mm Lower Handrail Power Cord Bottle Safety Key/Clip BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com... - Page 8 Handrails and Computer shelf are aligned. If equipped with handrail switches, make sure to identify that the left switches are used for angle adjustment and the right ones for speed adjustment. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
- Page 9 ASSEMBLY INSTRUCTIONS CONTINUED After the Uprights are tightened, attach the Handrail Cover (E) onto the Handrail. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
-
Page 10: Getting Started
Grasp the end caps with two hands and slowly pull the deck down towards your body until the casters are able to roll freely. Keep the treadmill at that angle until you are done with your move. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com... - Page 11 GETTING STARTED CONTINUED SAFETY KEY & CLIP Your Bladez treadmill is equipped with a safety key that will disable the treadmill if it is not in place. You should attach the clip end to your clothing. The magnet end goes into the recess of the console. If at any time you need to stop the treadmill quickly, simply pull the safety key off the console.
-
Page 12: Key Functions
Choose from 2 4 6 8 10 12%. PERSONAL COOLING FAN 1. Your Bladez 9.9T is equipped with a 2 speed personal cooling fan. 2. Turn on your Personal Cooling Fan by pressing the FAN Button 3. - Page 13 GRIP PULSE – To periodically check your heart rate, grasp the sensors at the base of the console and after about 9 seconds, your pulse will be shown in the pulse window. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
-
Page 14: Workout Program Details
6. Press QUICK/START key. After a 3 second countdown, the running belt will start to move at 0.5 MPH. 7. Adjust Speed with the keys. 8. Adjust Incline with the keys. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com... - Page 15 9. Press ENTER ~ INCLINE will be flashing. 10. Adjust incline with the keys. 11. Press QUICK/START key to begin your program. After a 3-second countdown, the running belt will start. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
- Page 16 9. Press ENTER ~ TIME will be flashing. 10. Enter time with the keys. 11. Press QUICK/START to begin your program. After a 3-second countdown, the running belt will start. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
-
Page 17: Calculating Your Target Heart Rate
Improve aerobic fitness, by maintaining ~142 BPM during your workout 190 *.75 =142.5BPM. Remember to consult your family physician or health care professional to develop a well-planned exercise program to fit your health needs. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com... -
Page 18: Program Profiles
SECTION 5 PROGRAM PROFILES 9 Hole Walk The 9 Hole is a pre-set distance of 2.17miles. No Need to adjust time) Hill Climb BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com... - Page 19 PROGRAM DETAILS CONTINUED Endurance Run Interval Run Rolling Run BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
- Page 20 PROGRAM DETAILS CONTINUED Weight Loss Walk BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
-
Page 21: Preventive Maintenance
4 Miles or less / hr = lube every 1 year 4~8 Miles / hr = lube every 6 months 8 Miles or more / hr = lube every 3 months BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com... -
Page 22: Troubleshooting
Check Safety Key or Switch - Elevation Motor Elevation Motor not moving Check Elevation Motor connection - Stalled Elevation Elevation Motor screw Clean screw and lubricate binding BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com... - Page 23 Check if unit is turned on Insufficient Power Source Plug unit into a dedicated 120V, 20Amp Outlet Line Cord Damaged Replace Line Cord Fuse Check Fuse on MCB BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
-
Page 24: Warranty
LABOR – 1 Year Bladez Fitness shall cover the labor cost for the repair of the device for a period of one year from the date of original purchase, as long as the device remains in the possession of the original owner. - Page 25 Treadmill Owner’s Manual Bladez DX8-9.9T BLADEZ FITNESS BH North America Corporation 20155 Ellipse Foothill Ranch, CA 92610 Phone: 949-206-8152 Fax: 949-206-0013 Email: fitness@bhnorthamerica.com Revised 1/08/08...
-
Page 26: Before You Begin
20155 Ellipse Foothill Ranch, CA 92610 Phone: 949-206-8152 Fax: 949-206-0013 Email: fitness@bhnorthamerica.com BEFORE YOU BEGIN It is very important to become familiar with the frequently used components of your Bladez treadmill. Computer Safety key Power Cord Socket Power Switch Circuit Breaker... - Page 27 TABLE OF CONTENTS SECTION PAGE 1. IMPORTANT SAFETY INSTRUCTIONS............3 2. ASSEMBLY INSTRUCTIONS ..............5 3. FOLDING – UNFOLDING – MOVING............7 4. COMPUTER CONSOLE ................8 5. WORKOUT PROGRAM DETAILS ...............12 6. PREVENTIVE MAINTENANCE ..............18 7. TROUBLESHOOTING .................19 8. WARRANTY....................21 BH North America Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.bladezfitness.com...
-
Page 28: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using this product, basic precautions should always be followed, including the following: Please read the instruction carefully before starting to use this product. Danger – To reduce the risk of electric shock： Always unplug this product from the electrical outlet immediately after using and before cleaning. - Page 29 GROUNDING INSTRUCTIONS 1. The product must be grounded first. If malfunction or breakdown occurs, grounding will provide a path of least resistance for electric current to reduce the risk of electric shock. 2. The product is equipped with a cord having an equipment-grounding conductor and a grounding plug.
-
Page 30: Assembly Parts List
ASSEMBLY PARTS LIST ITEM DESCRIPTION ITEM DESCRIPTION FRAME HEX WRENCH 6MM HANDRAIL COVER (L) SAFETY KEYS HANDRAIL COVER (R) SILICON WATER BOTTLE BH North America Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.bladezfitness.com... -
Page 31: Assembly Instructions
ASSEMBLY INSTRUCTIONS Two persons are required to complete the assembly steps. (Caution!! Please follow the assembly steps below exactly to avoid injury.) 1. Lift up the handrail frame and the upright tubes as shown in the drawing until you hear a “click” sound. -
Page 32: Folding The Treadmill
FOLDING THE TREADMILL CAUTION The cylinder is under high pressure and care must be taken to prevent damage to it by impact with other objects. If the cylinder is damaged, it may prevent the treadmill from raising or lowering smoothly and slowly. FOLDING To fold your treadmill into the upright position, first set the elevation to 0 % incline. -
Page 33: Computer Console
COMPUTER CONSOLE BH North America Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.bladezfitness.com... -
Page 34: Operating Instructions
COMPUTER CONSOLE CONTINUED Startup Display 1. If the SAFETY KEY is taken off, the matrix window will display an arrow pointing downwards. If the SAFETY KEY is replaced the matrix window will display LB (KG). The weight window will blink and display the last entered value. The default value is 150 LBS (70 kg), and the range is 50 - 286 LB (23 - 130 kg). - Page 35 or +/– keys. COMPUTER CONSOLE CONTINUED Press ENTER to edit TIME. The preset is 30 min, range is 20–99 min, STEP is 1 min. After edit, press ENTER or START to start the machine. If you press START directly during edit, the rest of the unedited functions are pre-set.
-
Page 36: Program Mode
Start/Ready position. COMPUTER CONSOLE CONTINUED It will go back to the Start/Ready position after 30 seconds in the Run End position (or if you press the Stop key). The time pre-set value is 0, range 20–99,when the time is set at 20 minutes , you can press ▲▼... - Page 37 SPEED AND ELEVATION TABLES SPEED AND ELEVATION CHANGES 9 HOLE Level 1 ELEVATION (MPH) (KPH) Level 2 ELEVATION (MPH) (KPH) Level 3 ELEVATION (MPH) (KPH) Level 4 ELEVATION (MPH) (KPH) Level 5 ELEVATION (MPH) (KPH) Level 6 ELEVATION (MPH) (KPH) Level 7 ELEVATION (MPH)
- Page 38 SPEED AND ELEVATION TABLES CONTINUED SPEED AND ELEVATION CHANGES HILL CLIMB Level 1 ELEVATION (MPH) (KPH) Level 2 ELEVATION (MPH) (KPH) Level 3 ELEVATION (MPH) (KPH) Level 4 ELEVATION (MPH) (KPH) Level 5 ELEVATION (MPH) (KPH) Level 6 ELEVATION (MPH) (KPH) 10.4 10.4...
- Page 39 SPEED AND ELEVATION TABLES CONTINUED SPEED AND ELEVATION CHANGES HILL RUN Level 1 ELEVATION (MPH) (KPH) Level 2 ELEVATION (MPH) (KPH) Level 3 ELEVATION (MPH) (KPH) Level 4 ELEVATION (MPH) (KPH) Level 5 ELEVATION (MPH) (KPH) Level 6 ELEVATION (MPH) (KPH) 10.4 10.4...
- Page 40 SPEED AND ELEVATION TABLES CONTINUED SPEED CHANGES ONLY INTERVAL Level 1 (MPH) (KPH) (MPH) Level 2 (KPH) Level 3 (MPH) (KPH) Level 4 (MPH) (KPH) Level 5 (MPH) (KPH) Level 6 (MPH) (KPH) Level 7 (MPH) (KPH) 10.4 10.4 10.4 10.4 10.4 10.4...
- Page 41 SPEED AND ELEVATION TABLES CONTINUED SPEED CHANGES ONLY ROLLING Level 1 (MPH) (KPH) (MPH) Level 2 (KPH) Level 3 (MPH) (KPH) Level 4 (MPH) (KPH) Level 5 (MPH) (KPH) Level 6 (MPH) (KPH) 10.4 10.4 10.4 10.4 10.4 10.4 10.4 10.4 10.4 Level 7...
- Page 42 SPEED AND ELEVATION TABLES CONTINUED SPEED CHANGES ONLY WEIGHT LOSS Level 1 (MPH) (KPH) (MPH) Level 2 (KPH) Level 3 (MPH) (KPH) Level 4 (MPH) (KPH) Level 5 (MPH) (KPH) Level 6 (MPH) (KPH) Level 7 (MPH) (KPH) 10.4 10.4 10.4 10.4 Level 8 (MPH) (KPH)
- Page 43 MAINTENANCE The running belt can shift to one side or simply ‘skid over’ when running. To center the belt using the 6mm Allen wrench, run the machine at 3mph for a few minutes to determine which side the belt is drifting towards;...
-
Page 44: Troubleshooting
TROUBLESHOOTING ERROR MESSAGE PROBABLE CAUSES SOLUTION - Loss of Feedback Speed Sensor Check Speed disconnected Sensor Connection - Running Deck Running Deck not Check R-Deck oil lubricated Speed Sensor misaligned Check Sensor position Speed Sensor Faulty Replace S-Sensor Loose Display Cable Check Display Cable connection Faulty MCB... - Page 45 TROUBLESHOOTING CONTINUED ERROR MESSAGE PROBABLE CAUSES SOLUTION - Display Doesn’t Light On/Off switch Check if unit is turned on Insufficient Power Source Plug unit in a dedicated 120V, 20Amp Outlet Line Cord Damaged Replace Line Cord Fuse Check Fuse on MCB BH North America Corporation •...
-
Page 46: Warranty
LABOR – 1 Year Bladez Fitness shall cover the labor cost for the repair of the device for a period of one year from the date of original purchase, so long as the device remains in the possession of the original owner.
