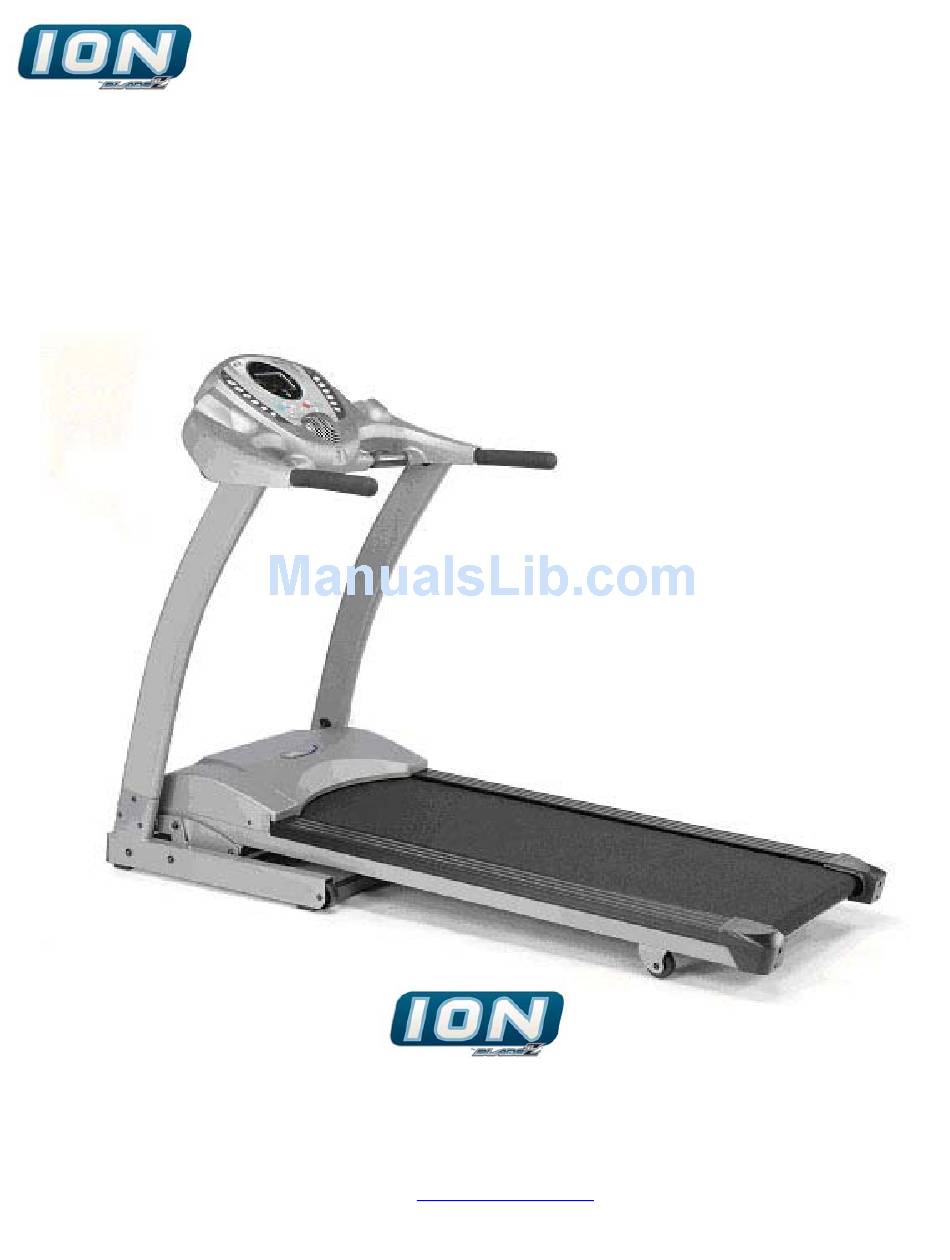

- Page 1 ION 7.9T OWNER’S MANUAL BLADEZ Corporation 20155 Ellipse Foothill Ranch, CA 92610 Phone: 949-206-8152 Fax: 949-206-0013 Email: f itness@ebladez.com Revision Date: 06/01/06...
- Page 2 Please read this manual carefully before using your 7.9T treadmill. This will allow you to get a full understanding of all the features BLADEZ’ treadmills provide. If you have any questions or concerns, please contact BLADEZ Corporation or any authorized BLADEZ FITNESS distributors in your area.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION PAGE 1. IMPORTANT SAFETY INSTRUCTIONS ............... 4 2. ASSEMBLY INSTRUCTIONS................. 6 3. GETTING STARTED....................10 4. PROGRAM DETAILS ....................15 5. PREVENTIVE MAINTENANCE................18 6. TROUBLESHOOTING.....................19 7. WARRANTY......................21 BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com... - Page 4 BEFORE YOU BEGIN We recommend that you become familiar with the frequently used components of your Treadmill. This will assist you in making your workouts more enjoyable. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
-
Page 5: Important Safety Instructions
15. To disconnect, turn all controls to the off position, then remove plug from outlet. 16. Connect this appliance to a properly grounded outlet only. 17. This appliance is intended for household use only. SAVE THESE INSTRUCTIONS BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com... - Page 6 No adapter or extension cord should be used with this product. GROUNDING METHODS GROUNDED OUTLET GROUNDING PIN BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
-
Page 7: Assembly Instructions
SECTION 2 ASSEMBLY INSTRUCTIONS ITEM Description Display Console Frame Left Upright Right Upright Bolt cover Left Handrail Right Handrail Bottle BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com... - Page 8 ASSEMBLY INSTRUCTIONS CONTINUED Item Description Bolt M8xP1.25x15 Bolt K-299 Allen Wrench 6mm Allen Wrench 5mm SILICON Safety Keys BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
- Page 9 4. Place both uprights (C,D) onto the frame base as shown in arrows, then secure them with 4 bolts (a) on each side with the wrench provided. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
- Page 10 8. Next snap the bolt covers (E) in place. Note: When you fasten the bolts, please pay attention not to press the control cable inside the tube. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
-
Page 11: Getting Started
Grab the end caps with two hands and slowly pull the deck down towards your body until the casters are able to roll freely. Keep the treadmill at that angle until you are done with your move. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com... - Page 12 GETTING STARTED CONTINUED SAFETY KEY & CLIP Your ION By Bladez treadmill is equipped with a safety key that will disable the treadmill if it is not in place. You should attach the clip end to your clothing. The magnet end goes into the recess of the console.
- Page 13 CALORIES in the entire workout program, then press ENTER to confirm selection. Your Ion 7.9T display uses a BLUE backlit LCD display. In this display you can view your statistical information, as well as the program profiles and ¼- mile track display.
- Page 14 GETTING STARTED CONTINUED PERSONAL COOLING FAN 1. Turn on POWER. 2. Your ION 7.9T is equipped with a personal cooling fan. 3. Turn on your Personal Cooling Fan by pressing the FAN Button 4. Press the FAN button again to turn the fan off.
- Page 15 CAL – This reading is the amount of body heat in calories burned during your workout. This is an estimated value based on your weight. PROGRAM – Program will indicate which program you are using. BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
-
Page 16: Program Details
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 = Speed = Elevation BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com... - Page 17 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 = Speed = Elevation BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
- Page 18 Hill Climb Endurance Run Level Level Level Speed Elevation Speed Elevation Speed Elevation Interval Run Rolling Run Weight Loss Level Level Level Speed Elevation Speed Elevation Speed Elevation BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
-
Page 19: Preventive Maintenance
Check belt condition and adjust if necessary referring to the steps above. 0.5~4.0 Mile lubricate every 1 year 4.0~7.0 Mile lubricate every 6 months 7.0~10.0 Mile lubricate every 3 months BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com... -
Page 20: Troubleshooting
Hold Heart Rate Grip Properly - Loss of Data Faulty Receiver in Display Replace Heart Rate Receiver Faulty Control Board in Replace Heart Rate Control Display Board BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com... - Page 21 Check if unit is turned on Insufficient Power Source Plug unit in a dedicated 120V, 20Amp Outlet Line Cord Damaged Replace Line Cord Fuse Check Fuse on MCB BladeZ Corporation • 20155 Ellipse • Foothill Ranch • CA • 92610 www.ebladez.com...
-
Page 22: Warranty
LABOR – 1 Year Bladez Fitness shall cover the labor cost for the repair of the device for a period of one year from the date of original purchase, as long as the device remains in the possession of the original owner.
