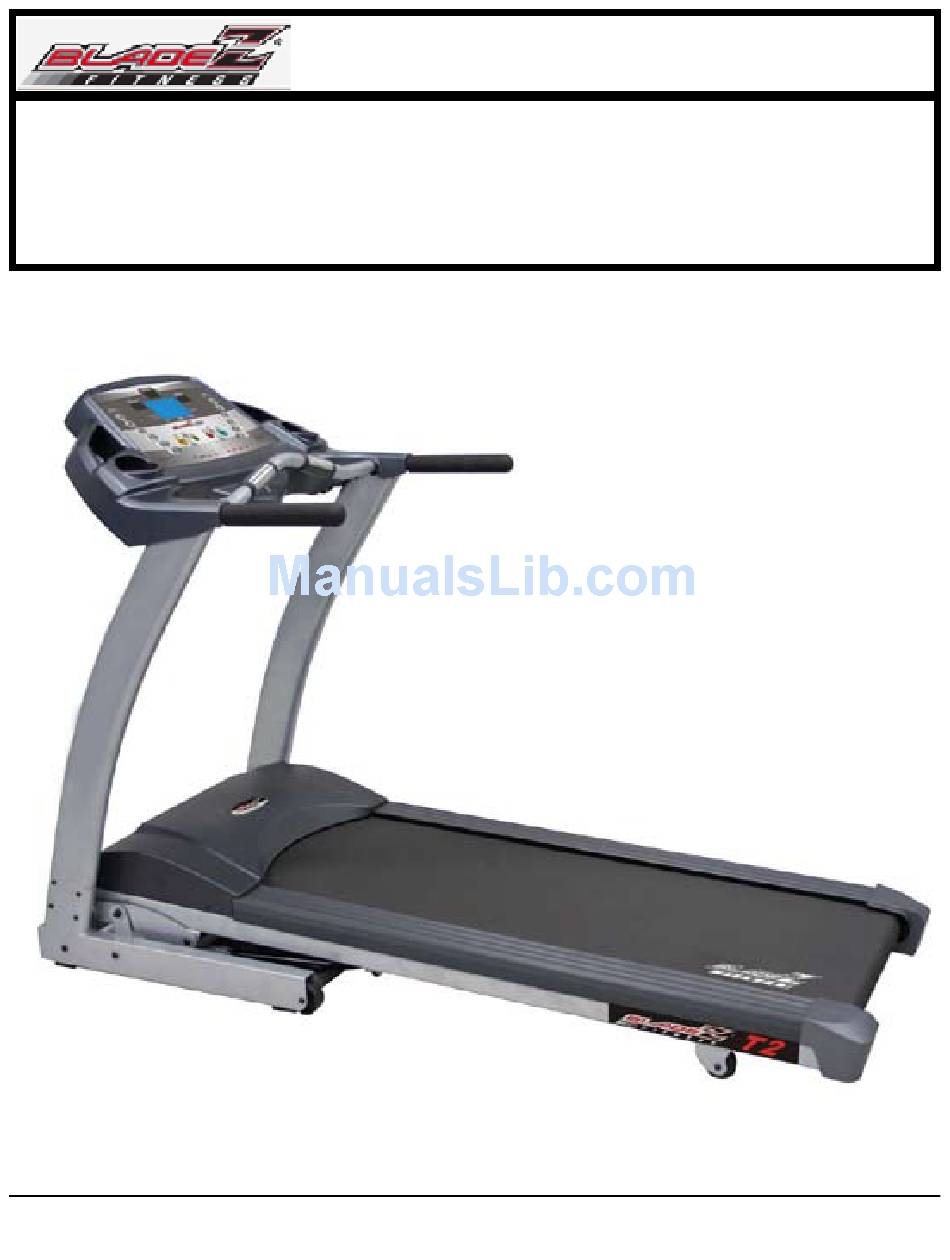

- Page 1 ILLUSTRATED PARTS MANUAL Model Number: Revised 12-06-06 BLADEZ T2 PRO TREADMILL Bladez Corp. 20155 Ellipse Foothill Ranch, CA 92610 Phone: (949)206-8152 Fax: (949) 206-0013 www.ebladez.com Email: fitness@ebladez.com...
- Page 2 BLADEZ T2 PRO Parts InformatIon TREADMILL • FIGURE 1 www.ebladez.com Page Email:fitness@ebladez.com...
- Page 3 BLADEZ T2 PRO Parts InformatIon TREADMILL • FIGURE 2 ITEM # PART # DESCRIPTION TOTAL QTY tP00 Computer Console tP00 Bolt K-99 tP003 spring tP004 screw Cover tP008 Handle Pipe tP009 Curved Pipe Cap -0 tP00 PVC foam tube - tP0 Upright Pipe (L) --...
-
Page 4: Parts Information
BLADEZ T2 PRO Parts InformatIon TREADMILL • FIGURE 3 ITEM # PART # DESCRIPTION TOTAL QTY -04 tP04 Bolt M6xP1.0x25 -3 tP3 Bolt K-436 -8 tP8 Wrench 6mm 80mmx80mm -9 tP9 Wrench 5mm -4 tP4 Nut M10xP1.5x8t -30 tP30 Bolt M6xP1.0x8 -3 tP3 Chest Belt... - Page 5 BLADEZ T2 PRO Parts InformatIon TREADMILL • FIGURE 4 www.ebladez.com Page 4 Email:fitness@ebladez.com...
- Page 6 BLADEZ T2 PRO Parts InformatIon TREADMILL • FIGURE 5 ITEM # PART # DESCRIPTION TOTAL QTY -4 tP04 spring Washer m8 -7 tP07 Bolt 4x16 -9 tP09 Bolt K-88 -30 tP030 Nut M10xP1.5 -34 tP034 Nut M8xP1.25 -40 tP040 Bolt M5xP0.8x10 -43 tP043 motor Cover (lower)
- Page 7 BLADEZ T2 PRO Parts InformatIon TREADMILL • FIGURE 6 ITEM # PART # DESCRIPTION TOTAL QTY -8 tP08 rear roller set -83 tP083 Bolt M8xP1.25x30 -84 tP084 shock-absorbing foam -85 tP085 running Board -86 tP086 Power Cable -88 tP088 Cable Fixity UC-0 -88- tP088- Cable Fixity UC-1...
- Page 8 BLADEZ T2 PRO Parts InformatIon TREADMILL • FIGURE 7 www.ebladez.com Page 7 Email:fitness@ebladez.com...
