ILLUSTRATED PARTS MANUAL
Model Number:
Revised 12-05-06

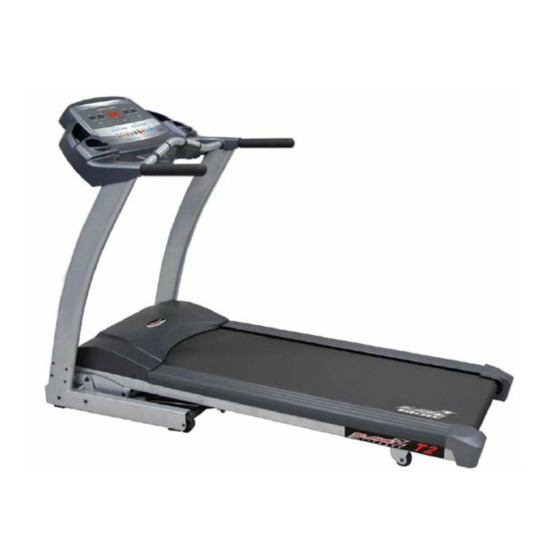

BLADEZ T2 BASIC
TREADMILL
Bladez Corp. 20155 Ellipse
Foothill Ranch, CA 92610
Phone: (949)206-8152
Fax: (949) 206-0013
www.ebladez.com
Email: fitness@ebladez.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the BLADEZ T2 BASIC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BLADEZ BLADEZ T2 BASIC

Summary of Contents for BLADEZ BLADEZ T2 BASIC

  • Page 1 ILLUSTRATED PARTS MANUAL Model Number: Revised 12-05-06 BLADEZ T2 BASIC TREADMILL Bladez Corp. 20155 Ellipse Foothill Ranch, CA 92610 Phone: (949)206-8152 Fax: (949) 206-0013 www.ebladez.com Email: fitness@ebladez.com...
  • Page 2 BLADEZ T2 BASIC Parts InformatIon TREADMILL • FIGURE 1 www.ebladez.com Page  Email:fitness@ebladez.com...
  • Page 3 BLADEZ T2 BASIC Parts InformatIon TREADMILL • FIGURE 2 ITEM # PART # DESCRIPTION TOTAL QTY tB00 Computer Console tB00 Bolt K-99 tB003 spring tB004 screw Cover tB008 Handle Pipe tB009 Curved Pipe Cap -0 tB00 PVC foam tube - tB0 Upright Pipe (L) --...
  • Page 4 BLADEZ T2 BASIC Parts InformatIon TREADMILL • FIGURE 3 ITEM # PART # DESCRIPTION TOTAL QTY -04 tB04 Bolt M6xP1.0x25 -3 tB3 Bolt K-436 -8 tB8 Wrench 6mm 80mmx80mm -9 tB9 Wrench 5mm -4 tB4 Nut M10xP1.5x8t -30 tB30 Bolt M6xP1.0x8 -37 tB37 Plastic Pad...
  • Page 5 BLADEZ T2 BASIC Parts InformatIon TREADMILL • FIGURE 4 www.ebladez.com Page 4 Email:fitness@ebladez.com...
  • Page 6 BLADEZ T2 BASIC Parts InformatIon TREADMILL • FIGURE 5 ITEM # PART # DESCRIPTION TOTAL QTY -4 tB04 spring Washer m8 -7 tB07 Bolt 4x16 -9 tB09 Bolt K-88 -30 tB030 Nut M10xP1.5 -34 tB034 Nut M8xP1.25 -40 tB040 Bolt M5xP0.8x10 -43 tB043 motor Cover (lower)
  • Page 7 BLADEZ T2 BASIC Parts InformatIon TREADMILL • FIGURE 6 ITEM # PART # DESCRIPTION TOTAL QTY -8 tB08 rear roller set -83 tB083 Bolt M8xP1.25x30 -84 tB084 shock-absorbing foam -85 tB085 running Board -86 tB086 Power Cable -88 tB088 Cable Fixity UC-0 -88- tB088- Cable Fixity UC-1...
  • Page 8 BLaDEZ t BasIC trEaDmILL...
