Double Seat Valve
DELTA DFplus2
Operating Manual: rev. 1
4.

Auxiliary Equipment

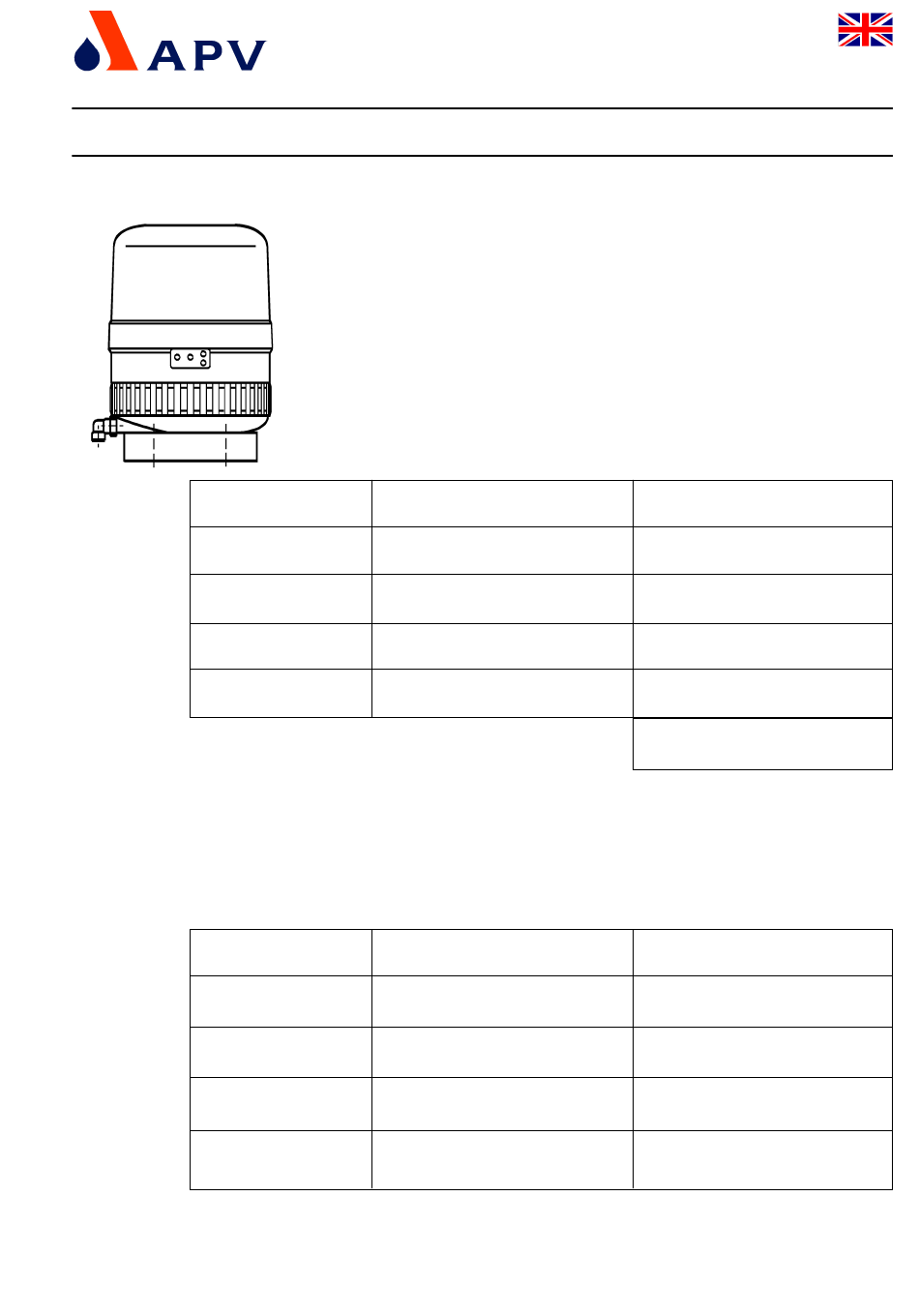

Control Unit
- The assembly of a CU3 Control Unit on the DFplus2 valve
is possible.
- For the assembly of a control unit on the actuator or seat lift
actuator corresponding adapters are required.
Different designs are available:
Standard Control Unit + Adapter
(inquiry of valve position open and closed)
1 solenoid valve (EMV)
(without seat lifting)
CU31 Direct Connect
16 - 31 - 260/93
CU31 Device Net
16 - 31 - 264/93
CU31 AS - Interface
16 - 31 - 268/93
CU Adapter D2
08 - 48 - 429/93
Control Unit according to PMO + Adapter
(inquiry of upper and lower valve shaft closed)
1 solenoid valve (EMV)
(without seat lifting)
CU31 Direct Connect
16 - 31 - 786/93
CU31 Device Net
16 - 31 - 785/93
CU31 AS - Interface
16 - 31 - 787/93
CU31 Adapter DFplus2
16 - 00 - 204/93
3 solenoid valves (EMV)
(with seat lifting)
CU33 Direct Connect
16 - 31 - 263/93
CU33 Device Net
16 - 31 - 267/93
CU33 AS - Interface
16 - 31 - 271/93
CU33 Adapter DFplus2
16 - 00 - 205/93
+ proximity switch holder
2 x ref-No.: 15 - 33 - 914/83
3 solenoid valves (EMV)
(with seat lifting)
CU33 Direct Connect
16 - 31 - 804/93
CU33 Device Net
16 - 31 - 805/93
CU33 AS - Interface
16 - 31 - 806/93
CU33 Adapter DFplus2
16 - 00 - 205/93
