Auxiliary Equipment - SPX APV DELTA SWmini4 Operating Manual

SWmini4-UK0.qxd / 08.2004

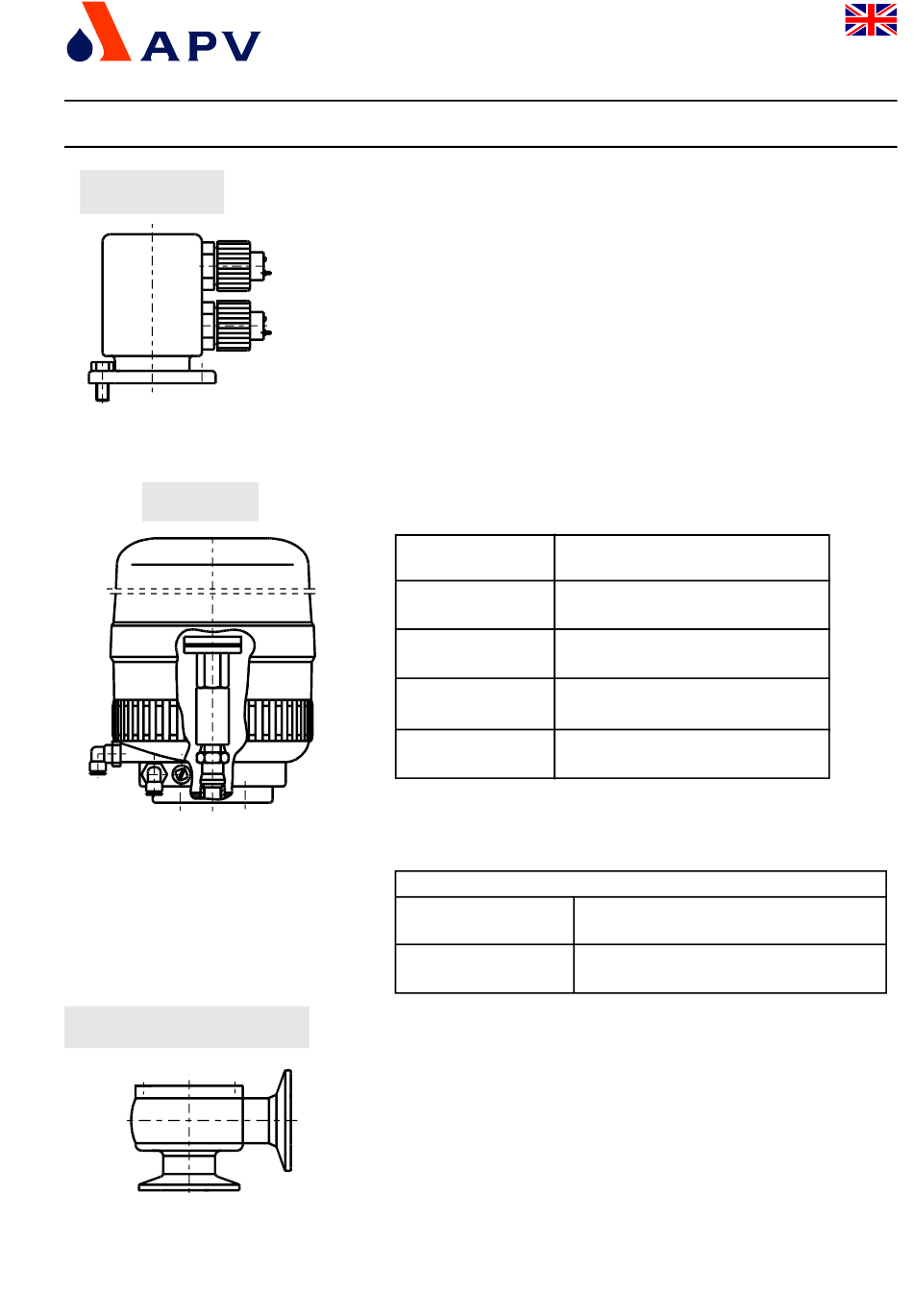

support for
proximity switch
control unit
with adapter
valve housing with
clamp connection
Single Seat Valve DN10, 15, 20
DELTA SWmini4
Operating Manual : rev. 0
4.

Auxiliary Equipment

Valve position indication
- A proximity switch holder for the limit position NC or NO
of the valve shaft can be installed directly on the actutor.
- We recommend to use our APV standard types:
operating distance: 5 mm / diameter: 11 mm.
If the operator decides to use valve position indicators other
than APV type, we cannot take over any guarantee for a
faultless function.
- Control Unit
The assembly of a control unit on the DELTA SWmini4 valve
is possible.
The following different designs are available:
Direct Connect
ref.- No.:
Profibus
ref.- No.:
Device Net
ref.- No.:
AS - Interface
ref.- No.:
- For the installation of the control unit on the SWmini 4 valve
two adapters are required.
designation :
ref.-No.:
designation :
ref.-No.:
Connections: Clamp connection according to ISO 2852
1 solenoid valve (EMV)
CU31 Direct Connect
16 - 31 - 232/93
CU21V
16 - 31 - 236/93
CU31 Device Net
16 - 31 - 240/93
CU31 AS - Interface
16 - 31 - 244/93
adapter
CU adapter - SWmini4
08 - 48 - 355/93
CU 2 adapter - SW4 / SD4 / M4
08 - 48 - 415/93
Valves are available complete with clamp
connections.
The combination of weld ends and
clamp connections is possible.
UK
4
