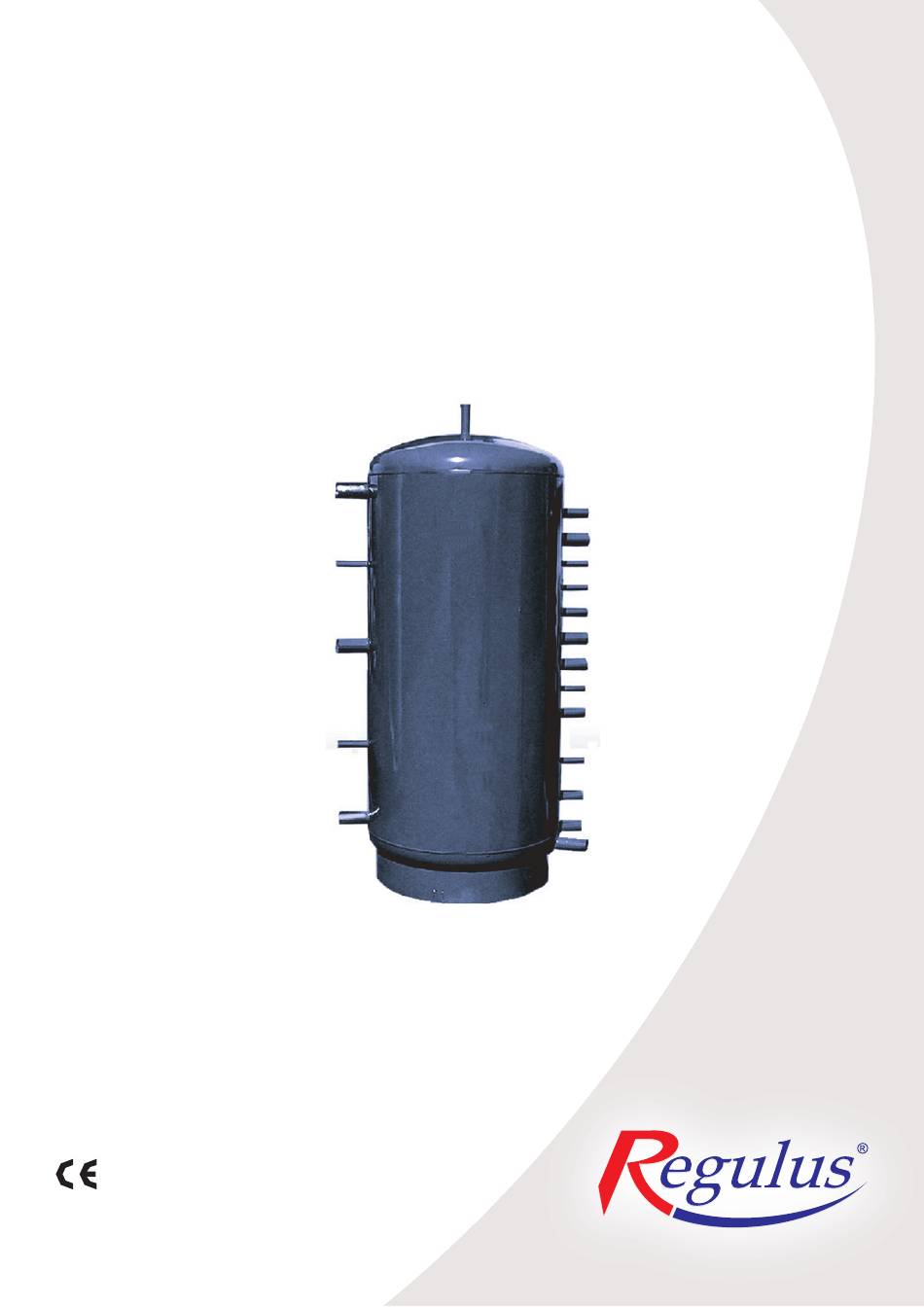

- Page 1 Owners Manual ACCUMULATION TANKS with DHW stainless-steel heat exchanger HSK 500, HSK 800, HSK 1000, HSK 1500, HSK 2000 v. 1.1...
-
Page 2: Table Of Contents
CONTENTS 1. Description ..............................1.1 Models ..............................1.2 Tank protection ........................... 1.3 Thermal insulation ..........................1.4 Connection points on the tank ......................1.5 Packing ............................... 2. General Information ............................3. Technical Data and Dimensions of HSK Models ..................4. Operation ............................... 5. -
Page 3: Description
When more heat sources shall be combined, it is recommended to use an intelligent controller, e.g. Regulus IR09 KTP, for both the source and consumer sides of a heating circuit, i.e. also for charging and discharging an accumulation tank. -
Page 4: Technical Data And Dimensions Of Hsk Models
Max. working temperature - tank+h.exch..95 °C Max. working pressure - DHW h.exch..... 6 bar Max. working pressure - tank ......6 bar G 6/4“ Empty weight ............ k Model HSK 500 HSK 800 HSK 1000 HSK 1500 HSK 2000 Tank code... -
Page 5: Operation
4. Operation This tank is designed for heating and accumulation of heating water in household or industrial applications, however always in closed pressure circuits with forced circulation. Hot water is heated inside the accumulation tank from several possible heat sources like various kinds of heating boilers, renewable energy sources (heat pumps, solar collectors), or also electric heating elements. - Page 6 Example II. Solar collector + heat pump + el. heating rod. hot water cold water Example III. Solar collector + gas boiler + solid fuel boiler. hot water cold water gas boiler...
-
Page 7: Installation And Commissioning
6. Installation and Commissioning Installation must meet valid rules and may be done only by qualified staff. Defects caused by improper installation, use or handling are not covered by warranty. After the tank is installed and connected to an existing heating system, it is recommended to clean the entire heating system using a suitable cleaning agent, e.g. -
Page 8: Installing Insulation On The Tank
7. Installing Insulation on the Tank Description Thermal insulation is a component of accumulation tanks that prevents heat losses. For these types of accumulation tanks, insulation is supposed to be installed on the spot for easier handling. Insulation made of soft polyurethane foam with a zippered PVC layer is used. - Page 9 Pictures showing how to mount soft-foam insulation with a PVC sheet on a storage water heater.
-
Page 10: Maintenance
8. Maintenance If the tank is fitted with a heating element, disconnect it from the mains first. Clean the exterior of the tank with a soft cloth and a mild detergent. Never use abrasive cleaners or solvents. Check all connections for leaks. 9. -
Page 11: Heat Exchanger For Dhw Recirculation
10.2 Heat exchanger for DHW recirculation It is designed to preheat the circuit of DHW recirculation, enabling to cover the heat loss of the recirculation circuit from the solar system directly. This heat exchanger can be installed in place of the top plug of the accumulation tank. It has a G 1”... -
Page 12: Watersoft N Electromagnetic Water Treatment Device
10.3 Watersoft N electromagnetic water treatment device The device for electromagnetic water treatment, Watersoft N, uses no chemicals. It softens water, prevents scale formation and dissolves existing sediments. It is particularly suitable for use with devices with thermally stresses spots like heat exchangers and storage water heaters. - Page 14 WARRANTY CERTIFICATE for HSK Accumulation Tank Model: ................Serial number: ..............WARRANTY CONDITIONS The warranty period is 60 months from the date of purchase. When claiming warranty, this Warranty Certificate must be submitted together with the purchase receipt. The warranty is valid only when the technical conditions set by this Manual are maintained and installation is done by an authorized person (confirmed in the Warranty Certificate).
