6. TIGHTENING AND ADJUSTMENT OF CHAIN

by

7. ADJUSTMENT OF SOIL BOX

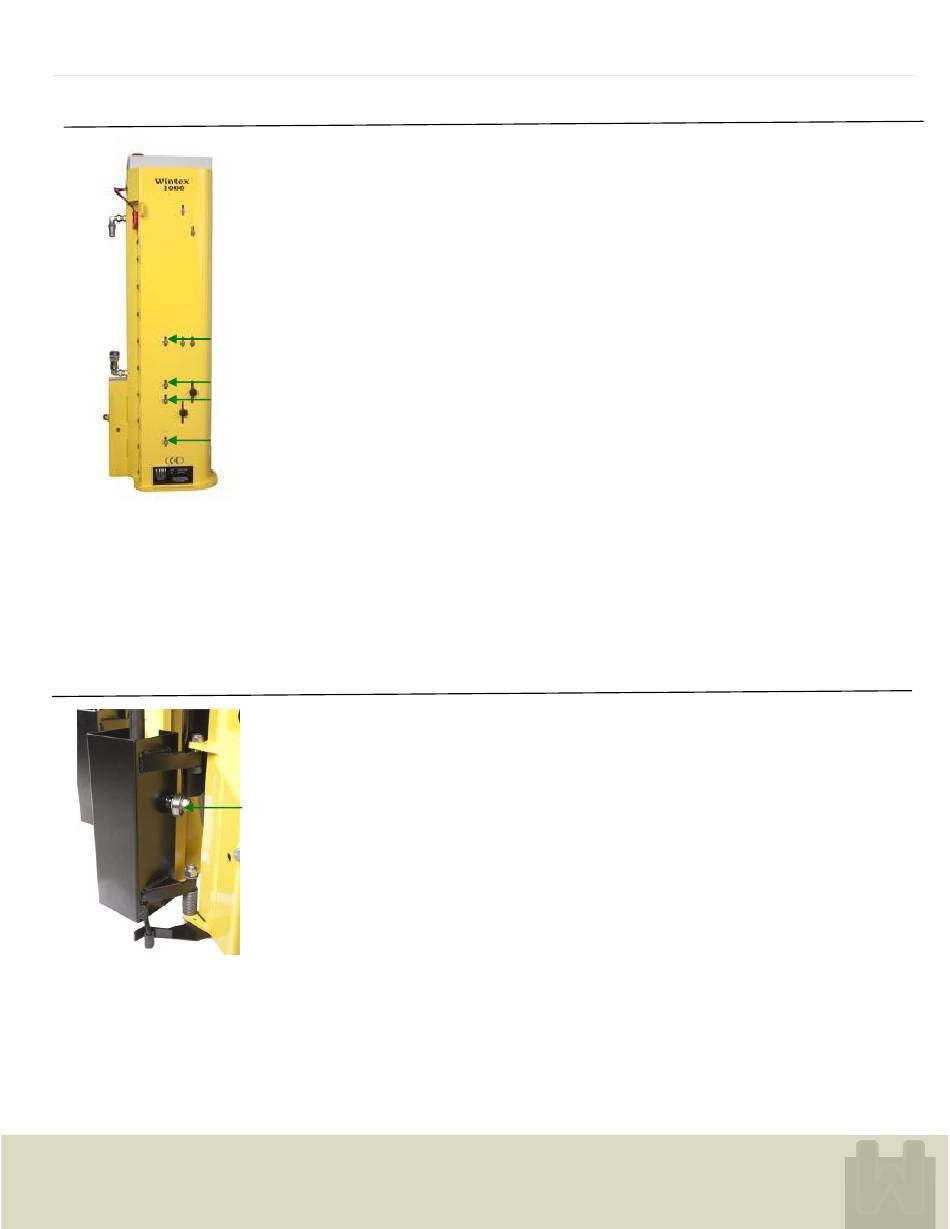

Make sure that the probe is up.
Loosen the four 8 mm bolts at the front of the WINTEX 1000 with a 6 mm Allen key.
Push the two upper 8 mm bolts down until the upper half of the chain is taut. Then tighten the
bolts.
Now push the lower 8 mm bolts up until the lower half of the chain is taut. This can be done
by squeezing around the bolts with tongs. Then tighten the bolts.
Make sure that the chain is taut now.
Adjust the soil box so that it is perpendicular with the soil sampler and so that the drilling head can
pass.
Adjust the soil box by loosening the nut and by turning the eccentric with the Wintex special key.
