WINTEX 1000s, 2000, 2500, 3000, 3000s
The future is in the soil -
and in professional soil samples
Instruction manual
Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted
+45 97990800, contact@wintexagro.com, wintexagro.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wintex Agro 2500

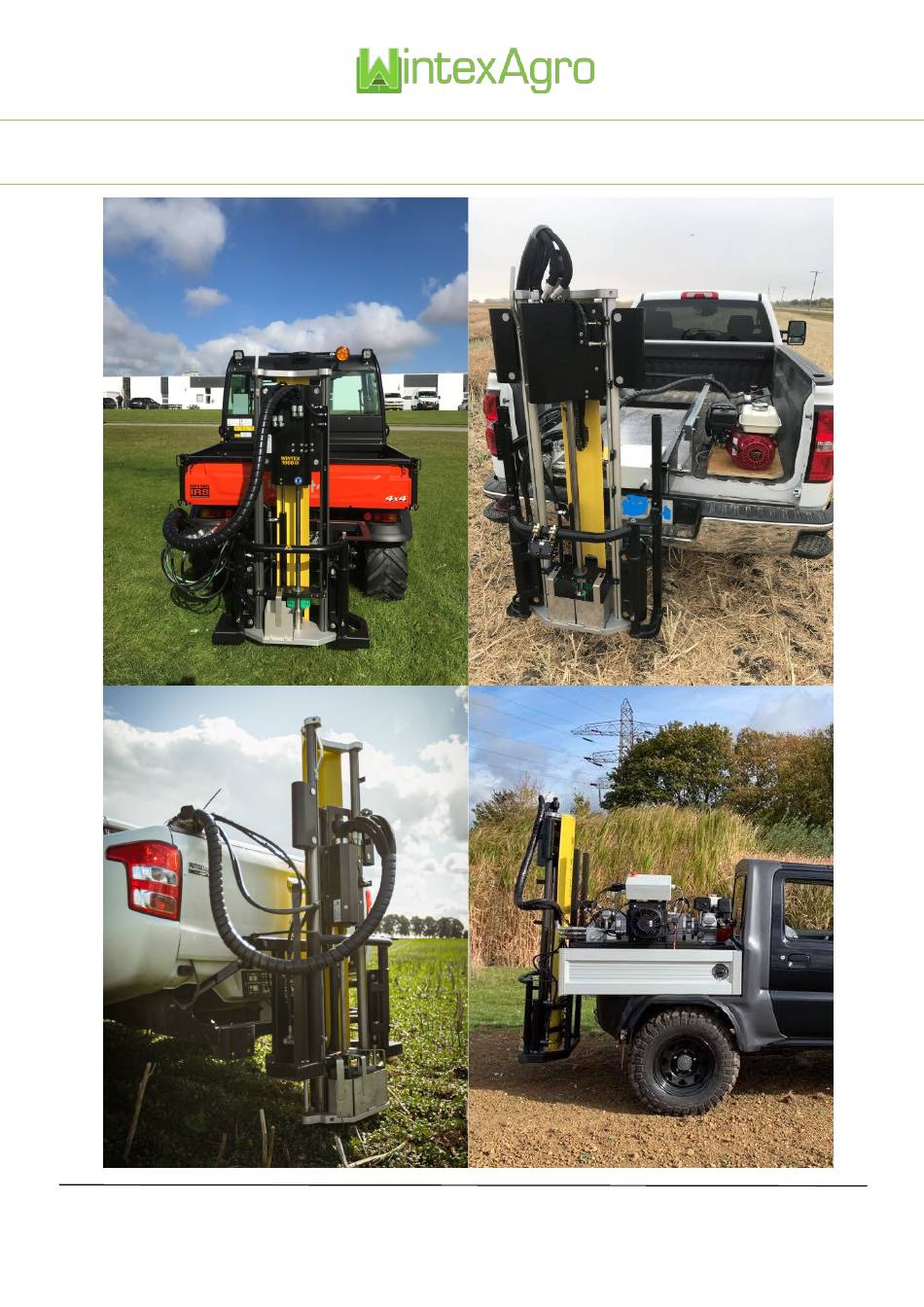

  • Page 1 WINTEX 1000s, 2000, 2500, 3000, 3000s The future is in the soil - and in professional soil samples Instruction manual Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 2: Table Of Contents

    Adjustment of the hydraulics Dismounting the accumulator Control of the accumulator Changing oil and oil filter Maintenance schedules Replacement of sensors PROBLEM SOLVING Fault location soil sampler Fault location hammer Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 3: Safety

    The soil sampler has moving, sliding and rotating parts. Keep your limbs away from the soil sampler unless it is turned off, and stay away from the foot / the base of the soil sampler. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 4 Safety Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 5: Mounting Guidelines

    The mounting frame on the side of the vehicle: Mounting the stabilizers Mount the stabilizers at the front and the back. Then tighten the bolts on the side of the frame. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 6 Fitting oil pump and Honda GX200 engine The numbers of the hoses and the numbers on the hydraulic block must match and be Oil pump and Honda GX200 engine on a connected accordingly. John Deere 855D Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 7 The reversed frame always needs to be customized so that it fits the vehicle in question. Therfore the frame is delivered unpainted. Here are some examples on how customers mounted the reversed frame onto their vehicles: Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 8 There is soil sampler 90 degrees to the ground. no harm in offsetting the soil sampler to one side of the bed to make space for the hydraulic unit. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 9 Hose R (2) must be connected to the hudraulic return port of the tractor. Hose T (3) must be connected directly to the pressureless return part of the tractor. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 10: Using The Wintex

    Using the WINTEX 3. A. DESCRIPTION OF THE CONTROL SYSTEM Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 11: Connection And Start Up

    Wintex 1000s: 30 cm Wintex 2000: 30 and 60 cm Wintex 2500: 20, 40 and 60 cm Wintex 3000: 30, 60 and 90 cm Wintex 3000s: 30, 60 and 100 cm The second row shows the activated mode of operation.
  • Page 12: Settings: Depth

    You can adjust the depth in which the soil samples are taken. Depending on the type of soil, you can adjust the following depths: Wintex 1000s: depth1 Wintex 2000: depth 1 and depth 2 Wintex 2500: depth 1, depth 2 and depth 3 Wintex 3000: depth 1, depth 2 and depth 3 Wintex 3000s: depth 1, depth 2 and depth 3 3.
  • Page 13: Settings: Layers Per Sample, Split Mode, Soil Box

    Three numbers will be shown on the screen meaning that you are about to take a sample from three layers at the same time. With the Wintex 2500, 3000 and 3000s you do also have the option to take a sample from one or two layers. As mentioned above, use the “SPLIT MODE”...
  • Page 14: Soil Sampling

    If the soil sampler is lifted of the ground during sampling, you need to adjust the pressure of the probe. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 15: Test Menu

    In some cases it seems like you only can see for example one of four (1/4) “pages” on the screen. To view the other “pages”, press the “MENU” (enter) key. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 16 Using the WINTEX Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 17 0 V indicates that the sensor/ Height sensor 2 (upper sensor) 2,7 V / 10 V active. cable is shortened. Analog Oil pressure (foot) 0 – 10 V Analog Oil temperature 0 – 10 V Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 18: Sensor Adjustment

    This is perfectly normal as the sensors pass the holes in the rail. If the sensor stays orange over a longer distance (10-15 cm), they need to be adjusted, or the rail may bent. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 19: Maintenance

    Caution: The probe as sharp edges! Remove the retainer with the special key which is delivered together with the WINTEX. It is now possible to remove the probe. Retainer Special key Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 20 When the probe is removed, it is possible to replace the o-ring. Replacement of scraper At first force the spring roll pin out. Then replace the scraper and replace the old spring roll pin with a new one. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 21: Adjustment Of Chain For Rotation

    Move the probe approximately 20 cm down. Activate the emergency stop to stop the soil sampler, and turn off the engine. The chain can now be adjusted by tightening the bolts. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 22: Hydraulics

    Maintenance 4. D. HYDRAULICS Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 23: Manual Activation Of The Hydraulic Valves

    Adjustment of probe pressure (5) Reading the probe pressure during sampling (6) Do always activate the function of a valve first before activating the main valve (4) by pressing it down. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 24: Adjustment Of The Hydraulics

    The excess-pressure valve which is located under the red cap is for adjusting the main pressure. The main pressure is preset on 120 bar. It must only be adjusted after signing a written agreement with Wintex Agro. Adjusting the pressure of the probe Loosen the lock nut.
  • Page 25: Dismounting The Accumulator

    Loosen the screws carefully with the 4 mm hex key. Note: There are two screws in each hole. Use a 3 mm hex key. Make sure that it is in good condition and that the bolt is clean. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 26: Control Of The Accumulator

    In this case merely recharge the accumulator. If there is no whistling sound, the diaphragm is probably damaged and must be replaced. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 27: Changing Oil And Oil Filter

    4. I. CHANGING OIL AND OIL FILTER Close the filling hole with a solid plug. Remove both hoses. Unbolt the engine and the tank. Remember the bolt under the tank. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 28 Slide the engine and the tank out under the cooler bracket and unbolt the engine. Move the tank into an upright position and unscrew the pump. Replace the filter with a new one. Clean the tank thoroughly. Then remount pump, tank and engine. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 29: Maintenance Schedules

    Exchange after 500 hours in use and at least once a year: 50101198 Hydraulic oil filter 50101037 Hydraulic oil 50101229 Oil level rod with filler cap, large Honda GX200 motor: See instruction manual Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 30: Replacement Of Sensors

    - If the nut is within part A which is 16 mm long, it must be tightened with 6 Nm. - If the nut is within part B, it must be tightened with 15 Nm. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 31: Problem Solving

    1 mm. 2) The rotation sensor is broken. 2) Replace the sensor with a new one. 3) The gap between the rotation 3) Adjust the sensor. sensors is not the same. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
  • Page 32: Fault Location Hammer

    3) The accumulator pressure is too low. 3) Charge the accumulator with nitrogen or replace it. 4) The return pressure is too high. 4) Check the power source, the hoses and the filter. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, wintexagro.com...
