1.

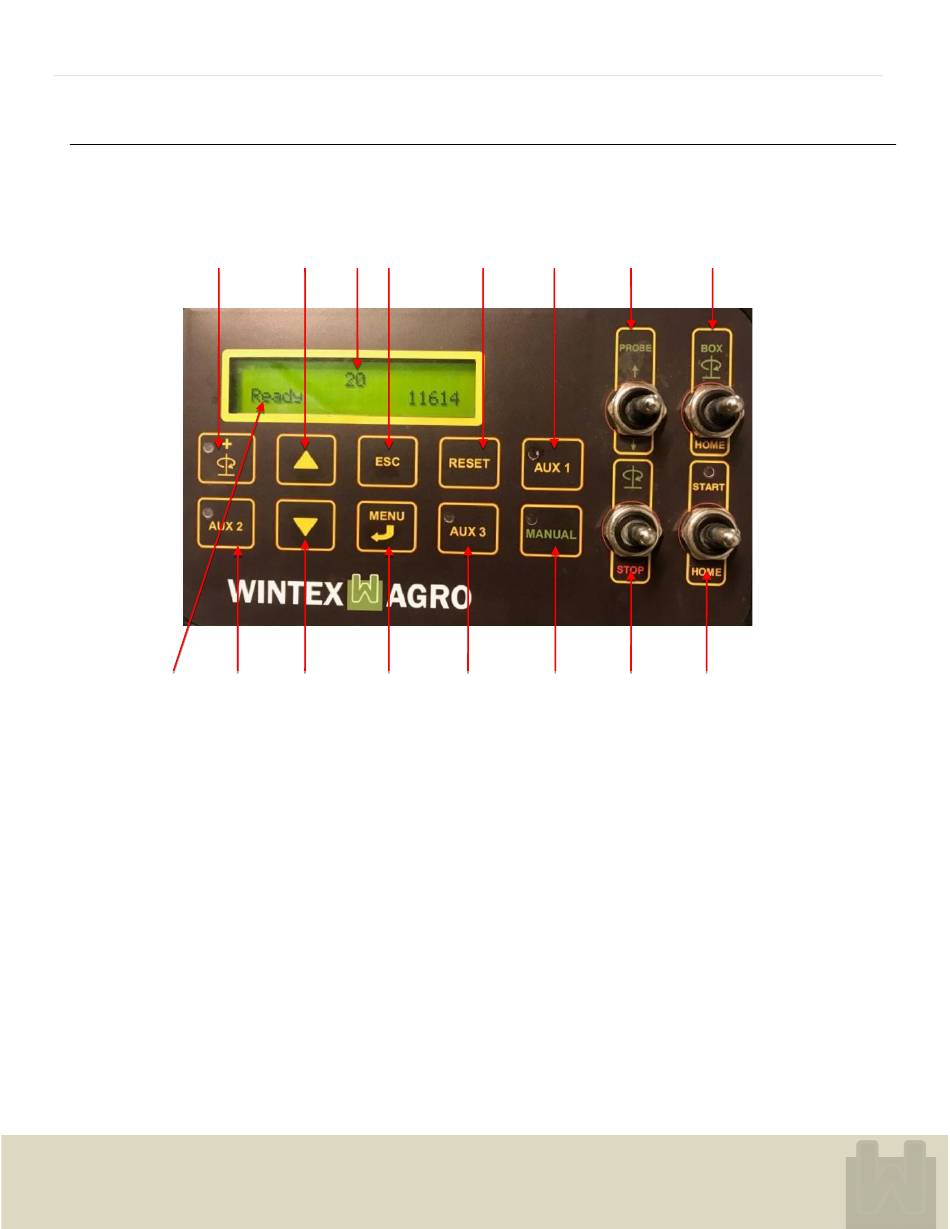

DESCRIPTION OF WINTEX CONTROL SYSTEM FOR THE WINTEX 1000
1
9
1:
Extra rotation / no rotation
2:
Up / plus
3:
Preset depth
4:
Escape
5:
Reset
6:
Not in use
7:
Probe up / down
8:
Not in use
2
3
4
10
11
12
9:
10: Not in use
11: Down / minus
12: Menu / ENTER
13: Not in use
14: Enable manual functions
15: Rotation + STOP
16: START + HOME
Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted
+45 97990800, contact@wintexagro.com, www.wintexagro.com
5
6
13
14
Operation mode
7
8
15
16
P A G E
| 1
Advertisement
Table of Contents
Related Manuals for Wintex Agro 1000
Summary of Contents for Wintex Agro 1000
- Page 1 P A G E DESCRIPTION OF WINTEX CONTROL SYSTEM FOR THE WINTEX 1000 Extra rotation / no rotation Operation mode Up / plus 10: Not in use Preset depth 11: Down / minus Escape 12: Menu / ENTER Reset 13: Not in use...
- Page 2 Connect all plugs and cables of the control system according to the mounting manual. At the first startup of the Wintex 1000 after mounting the control system, take place on the driver’s seat. Press “MANUAL” key and flip the “PROBE” switch downwards until the probe reaches the ground.
- Page 3 The settings can be adjusted by holding the “MENU” key down until the number of the display flashes. Then adjust the figure by using the arrow up or the arrow down keys. When you have entered the preferred number, press “MENU” (enter) again, and the setting is saved. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...
- Page 4 Go to the “Setup Menu”. Scroll down to “Rotation stop height” and adjust the number with the arrow keys. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...
- Page 5 MANUAL USE OF THE SOIL SAMPLER If you press the “MANUAL” key with the green letters, you can access all functions in green letters at the flip switches (“probe up”, “probe down” and” rotation”) manually. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...
- Page 6 Enter the test menu by pressing the “MENU” key. The screen will now show “Set up Menu”. Press the arrow down key, and the “Test Menu” will appear. Press ”MENU” again, and you will now have access to the above-mentioned content. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...
- Page 7 Monitor keys Monitor switches Monitor LEDs The next lines show the inputs and outputs. In the event of an issue, your local dealer might need this information to trouble shoot. Wintex Agro, Vilhelmsborgvej 8C, DK-7700 Thisted +45 97990800, contact@wintexagro.com, www.wintexagro.com...
