Winco Caremor Cliner Series Customer Instructions

5351-5361

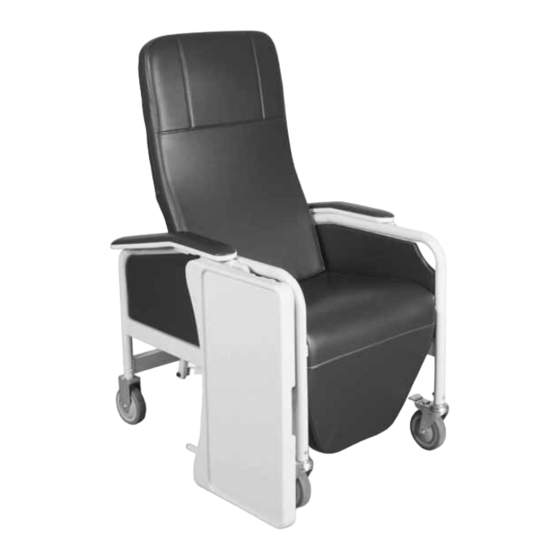

Caremor Cliner
PLEASE READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE USING THIS PRODUCT.
If you have trouble understanding these instructions contact your dealer or Winco customer support, (800) 237-3377
Winco assumes no responsibility for damage or injury caused by improper assembly,
1. READ AND FOLLOW ALL DIRECTIONS.
2. NEVER use tray as a restraint.
3. ALWAYS fold footplate up before user enters or exits the chair; otherwise INJURY MAY RESULT.
4. DO NOT stand on plastic footplate; INJURY MAY RESULT.
5. Keep users hands and feet clear of any moving parts. Attendant MUST confirm that users hands and feet are safe
while adjusting positions on tray or footrest or INJURY MAY RESULT.
6. Never use the chair arms or tray as a seat; INJURY MAY OCCUR.
7. Lock casters at all times, except when transporting chair.
8. Chair must ALWAYS be positioned on a level surface.
9. DO NOT use chair for Transporting in or with ANY type of vehicle or trailer. Winco chairs have not been tested or
approved for use by an occupant in any type of vehicle or trailer.
10. Immediately remove from service; Any chair with broken parts, torn upholstery, or other mechanical or visible
damage.
11. Periodically, recheck tightness of all nuts, bolts and screws.
12. USE ONLY WINCO AUTHORIZED REPLACEMENT PARTS.
13. NEVER EXCEED the recommended weight capacity of 300 lbs. (136 kg).
14. SAVE THESE INSTRUCTIONS for future reference and training.
No Tools required for standard assembly.
PLEASE READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE PROCEEDING WITH ASSEMBLY
Install the Back
1. After checking your product for any shipping damage, put chair in upright position.
2. Slide the Back Frame over the 7/8" tubes of the Seat Frame.
3. Depress the ¼" Lock Button in Seat Frame while pushing down on one side of Back Frame.
4. Repeat procedure on opposite side until both Lock Buttons are snapped into corresponding holes of Back
Frame. NOTE: Snap buttons must protrude out of holes on back frame.
WARNING: Failure to lock back and seat frames together may cause injury.
Remove the wood spacing block from back frame after chair assembly
5.
6. Press the "Hook & Loop" pieces together on bottom of chair back, to complete assembly and give finished
look to back of chair.
006170
before attempting to use this product; otherwise injury may occur.
installation, use, or maintenance of these products.
5351-5361 Weight Capacity = 300 lbs. (136 kg.)
Revision P Date 01-28-11
CUSTOMER INSTRUCTIONS
.
Page 1 of 4
