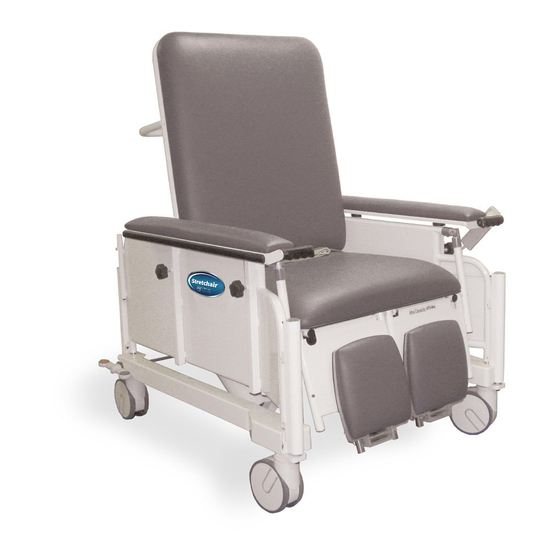

- Page 1 OWNER’S OPERATING & MAINTENANCE MANUAL S300 Stretchair S550, S750, & S999 Bariatric Stretchair PLEASE DO NOT DISCARD THIS MANUAL! KEEP FOR FUTURE REFERENCE AND TRAINING...
- Page 2 4. SAVE ALL BOXES AND PACKING MATERIAL UNTIL AFTER YOU HAVE ASSEMBLED YOUR PRODUCT AND HAVE VERIFIED THAT ALL COMPONENTS ARE FUNCTIONING PROPERLY. Winco assumes no responsibility for damage or injury caused by the improper assembly, installation, use or maintenance of these products.
-
Page 3: Important - Please Read
4. Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact your Winco authorized dealer. 5. DO NOT carry or pull this product by power supply cord or use the cord as a handle. - Page 4 6. STAY CLEAR of the lift & recline mechanisms. 7. DO NOT use chair for transporting in or with ANY type of vehicle or trailer. Winco chairs have not been tested or approved for use by an occupant in any type of vehicle or trailer.
- Page 5 IMPORTANT - PLEASE READ Products with the following markings are intended for commercial use only. Independent U.S. product-safety testing Meets European Union (EU) health, certification by Nationally Recognized Testing safety & environmental requirements Laboratory (NRTL)
- Page 6 IMPORTANT - PLEASE READ Guidance and manufacturer’s declaration –electromagnetic emissions The Stretchair is intended for use in the electromagnetic environment specified below. The customer or the user of the Stretchair should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –...
- Page 7 IMPORTANT - PLEASE READ Guidance and manufacturer’s declaration –electromagnetic immunity The Stretchair is intended for use in the electromagnetic environment specified below. The customer or the user of the Stretchair should assure that it is used in such an environment. Compliance –...
- Page 8 IMPORTANT - PLEASE READ Guidance and manufacturer’s declaration –electromagnetic immunity The Stretchair is intended for use in the electromagnetic environment specified below. The customer or the user of the Stretchair should assure that it is used in such an environment. Electromagnetic environment Immunity test IEC 60601 test level...
-
Page 9: Chair Specifications
CHAIR SPECIFICATIONS S300 S550 28"......Overall Width......34" 53.5"......Overall Height......53.5" 22".......Seat Height......22" 19.5......Seat Width.......25" 72"......Layflat Length......72" 22"-38"......Vertical Lift ......22"-38" (Chair) 22"-38"......Vertical Lift .....22"-38" (Layflat) 219 lbs......Chair Weight......290 lbs. 300 lbs......Weight Capacity......550 lbs. S750 S999 37"......Overall Width......41" 53.5"......Overall Height......53.5" 22".......Seat Height......22" 28".......Seat Width......31" 72"......Layflat Length......72"... - Page 10 OPERATING INSTRUCTIONS Assisting Patient Into Stretchair 1. Stretchair should be in upright position. (FIG. 1) 2. Apply central locking wheel brakes (S675 & S999) or all 3 total lock casters (S300). (FIG. 2a-2b) 3. Adjust armrests to the DOWN position. (SEE PAGE 13) 4.
- Page 11 OPERATING INSTRUCTIONS Converting Layflat Position to Chair 1. Lock wheels (FIG. 2A or 2B) 2. Keep armrest/side-rails in the fully upright position. (SEE PAGE 13 FIG.3) 3. Secure patients arms in front of their chest 4. Using the handset control, return the chair to its sitting position. (FIG. 1) 5.
- Page 12 OPERATING INSTRUCTIONS SWING-LEG OPERATING INSTRUCTIONS The swing-leg is designed to elevate one or both patient's legs to a comfortable or prescribed posi- tion. Once the leg is elevated it will remain at a fixed angle, relative to a patient's thigh, regardless of the chair angle.
- Page 13 OPERATING INSTRUCTIONS ADJUSTABLE ARMREST INSTRUCTIONS The Stretchair armrests are adjustable to enhance the pa- tients comfort while sitting (FIG. 7), and act as guard-rails while the chair is in the layflat position. (FIG. 9) Caution: DO NOT allow patients to use the stand assist grips or attempt to exit the chair until the armrests have been adjusted to their lowest position, and the wheels have been locked.
-
Page 14: Battery Installation
OPERATING INSTRUCTIONS LINAK BATTERY & CONTROL BOX INSTRUCTIONS • To charge battery BE SURE the emergency stop is in the "OUT" position. *Battery WILL NOT charge if the emergency stop is engaged. • Keep patients away from Stretchair while it's charging. - Page 15 MAINTENANCE GUIDE Monarch Hydro Power Unit Replacement 1. Place chair in the layflat position (SEE PAGE.7) with the vertical lift in its LOWEST position. (FIG.15) 2. Unplug the Monarch Power cord from the battery control box. (FIG.16) 3. Locate the Power Unit positioned under the upholstered seat.
- Page 16 MAINTENANCE GUIDE Linak Actuator Replacement 1. Place chair in the layflat position (SEE PAGE 7) with the vertical lift in its highest position. (FIG.20) 2. Unplug the Linak Actuator cord from the battery control box. (FIG.21) 3. Locate the Linak Actuator positioned just behind the Monarch Power Unit.
- Page 17 MAINTENANCE GUIDE Swing-leg Gas Spring Replacement 1. Fully elevate the legrests for easier access to the gas springs. (FIG.24) 2. Remove the swing-leg release handle by unscrewing the hex-head bolt. (FIG.24) 3. Locate the 2 gas springs positioned above the Monarch Power Unit 4.
-
Page 18: Our Products
OUR PRODUCTS Other Quality Winco Furnishings You May Be Interested In: Visit us online at www.wincomfg.com... -
Page 20: Limited Warranty
Winco Mfg., LLC. sole discretion, it may repair or replace components found to be defective. Winco Mfg., LLC. shall not be liable for any labor, shipping or any other costs incurred as a result of or in conjunction with a warranty claim.
