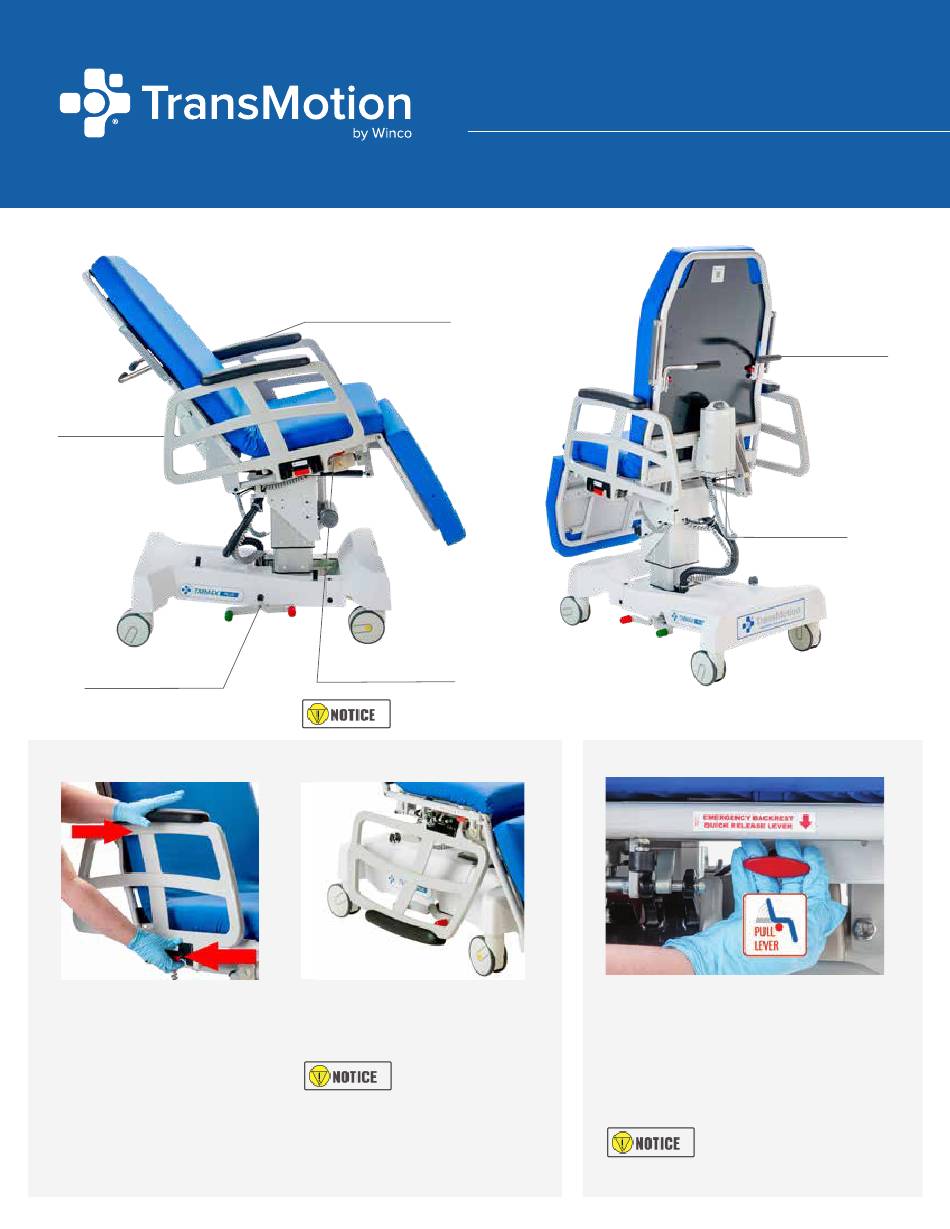

Winco TransMotion TMM4X PLUS Quick Notes

6. Ten Button
Pendant
*Not shown
3. Caster
Braking System
1. SIDE RAIL - LOWERING/RAISING
Lowering the Side Rail
Grasp the top of the side rail and push
slightly inward while pulling out the Red
release tab at the bottom of the rail.
Stowing the Side Rail
Lower the rail into the down position.
QUICK NOTES

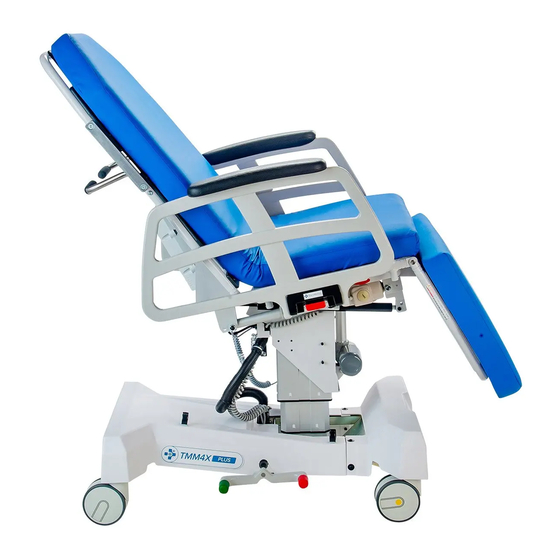

TMM4X PLUS MULTI-PURPOSE STRETCHER-CHAIR
WITH SEAT TILT
1. Padded Side Rails
2. Back Section
Quick Release
MAXIMUM PATIENT WEIGHT IS 500 lbs (227 kg.)
Raising the Side Rail
Lift the side rail until it is in the up position.
The Red release tab will engage (lock)
automatically.
After raising, pull on side rail to ensure it is
securely locked.
4. Battery Pack
("B" Option)
2. BACK SECTION QUICK RELEASE
Location
The (Red) quick release lever is located under the
seat on the patient's right side.
Activating the Quick Release
Pull the Red lever out towards the side rail. When
weight is applied, the back section will drop until
the lever is released.
Intended for EMERGENCY
purposes ONLY.
5. Push Bar
