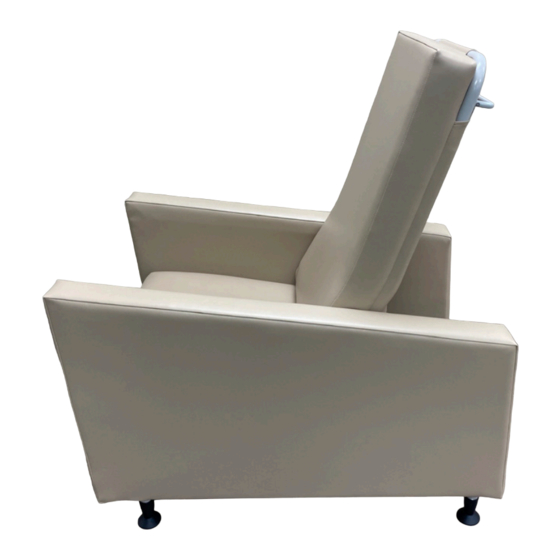

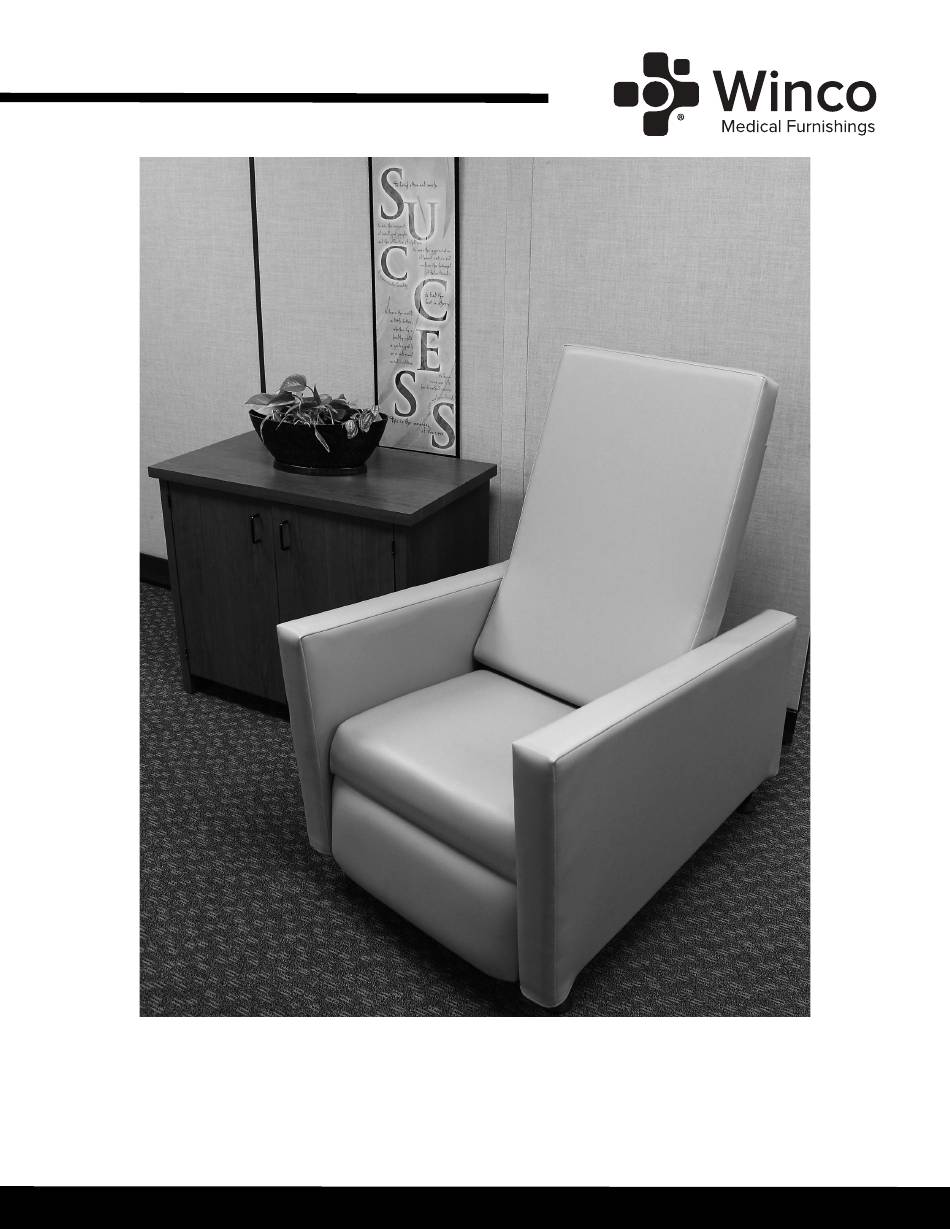

- Page 1 HOME CARE CLINER OWNERS OPERATING AND MAINTENANCE MANUAL IMPORTANT - DO NOT DISCARD THIS MANUAL. KEEP THIS MANUAL FOR FUTURE REFERENCE AND TRAINING. Copyright © 2021 Winco Mfg., LLC...
- Page 2 IF YOU HAVE ANY QUESTIONS OR CONCERNS, PLEASE CONTACT WINCO MFG., LLC. Winco assumes no responsibility for damage or injury caused by improper assembly, installation, use, or maintenance of this product. No part of this manual may be duplicated in any form without the prior consent of Winco Mfg., LLC.
-
Page 3: Table Of Contents
BACK ASSEMBLY INSTRUCTIONS ..............................7 OPERATING INSTRUCTIONS ................................8 RECLINING THE HOME CARE CLINER ....................................8 RAISING HOME CARE CLINER TO THE UPRIGHT POSITION ............................9 GENERAL MAINTENANCE ..................................10 ADJUSTING THE RECLINER MECHANISMS ..................................10 GENERAL CARE & CLEANING ................................11 SPECIFICATIONS .................................... -
Page 4: Intended Use Statement
INTENDED USE STATEMENT he Home Care Cliner is a recliner for use in a home setting. It is designed to provide comfort for individuals seated for extended periods of time while receiving clinical treatments such as Dialysis or Infusion or during recovery from surgical procedures where positional adjustments are beneficial. -
Page 5: Important: Please Read
SERIOUS INJURY MAY RESULT. DO NOT use recliner for transporting occupant in a vehicle or trailer. Winco recliners have not been tested or approved for use by an occupant in a vehicle or trailer. -
Page 6: Pedestal Foot Assembly Instructions
4. Carefully push the pedestal foot into the socket with the palm of your hand until it is flush (FIG. 2). 5. Repeat for the other three (3) feet. Tilt chair back to upright position. 6. Complete. FIG. 1 FIG. 2 Page 6 of 16 Copyright © 2021 Winco Mfg., LLC Document No.: 006122 Revision: A... -
Page 7: Back Assembly Instructions
This will help you steady the chair back. If possible, have someone help you hold the back assembly while you install SLIC pins. FIG. 2 FIG. 1 FIG. 1B FIG. 2B Page 7 of 16 Copyright © 2021 Winco Mfg., LLC Document No.: 006122 Revision: A... -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS Fig. 1 RECLINING THE HOME CARE CLINER The Winco Home Care Cliner chair has three standard recline positions plus Trendelenburg positioning (When gas spring is engaged with release handle from third recline position). From the #1 (SEATED UPRIGHT) position, grip the arm rests and simultaneously lean body weight back. -
Page 9: Raising Home Care Cliner To The Upright Position
OWNERS OPERATING & MAINTENANCE MANUAL HOME CARE CLINER RAISING HOME CARE CLINER TO THE UPRIGHT POSITION FIG. 2 FIG. 1 From the RECLINED position, grip the arm rests and simultaneously lift body weight upward while pulling on armrests. Continue until desired position is reached (FIG. -
Page 10: General Maintenance
3. Return recliner to upright position and check recliner for reclining, legrest, and/or footrest action. Repeat step two if needed. Tighten hex nuts no more than two full revolutions. If your chair is not operating properly, remove the chair from service and call Winco Mfg., LLC. Fig. 4 Fig. -
Page 11: General Care & Cleaning
CLEANING Winco chairs should be cleaned with mild soap and water solution and a damp cloth on a regular basis. Avoid harsh detergents or chemicals that could damage the upholstery or finish of your chair. If the upholstery is disinfected with chemicals or bleach mixtures, the chair MUST be wiped off using only clean water on a damp cloth and then air dried. -
Page 12: Specifications
Weight - Standard Size ............................83 LBS. (37.6 KG.) Maximum Weight Capacity - Standard Size ..................350 LBS. (158.8 KG.) ** Patient Weight Should be Evenly Distributed Page 12 of 16 Copyright © 2021 Winco Mfg., LLC Document No.: 006122 Revision: A... -
Page 13: Warranty Information
Limited One Year Complete Product Warranty: Winco Mfg., LLC warrants the complete product for one (1) year. At Winco Mfg., LLC’s sole discretion, it may repair or replace any components that are found to be defective during the first year after shipment from the Winco facilities. Winco Mfg., LLC, shall not be liable for any labor, or any other costs incurred as a result of or in conjunction with a warranty claim. - Page 14 OWNERS OPERATING & MAINTENANCE MANUAL HOME CARE CLINER Page has been intentionally left blank. Page 14 of 16 Copyright © 2021 Winco Mfg., LLC Document No.: 006122 Revision: A...
- Page 15 We reserve the right to add or delete products at any time and without prior notice. Always provide your product's specific serial number when ordering any replacement parts. When in doubt, contact a Winco representative (352-854-2929 or 1-800-237-3377) for further information.
- Page 16 Document No.: 006122 Owners Operating and Maintenance Manual Revision: A Copyright © 2021 Winco Mfg., LLC CONTACT US To arrange a demonstration or to speak with one of our associates, please feel free to contact us at: 800-237-3377 | WincoMfg.com | 5516 SW 1st Lane, Ocala, FL 34474 | Info@WincoMfg.com...
