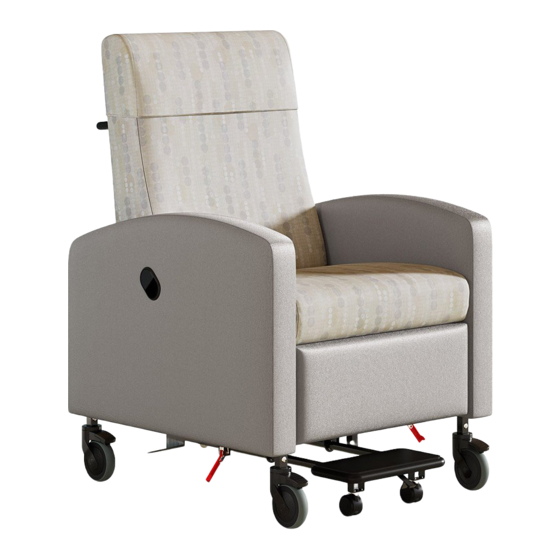

- Page 1 INVERNESS 24-HOUR TREATMENT RECLINER™ OWNERS OPERATING AND MAINTENANCE MANUAL IMPORTANT! DO NOT DISCARD THIS MANUAL! KEEP THIS MANUAL FOR FUTURE REFERENCE AND TRAINING!
- Page 2 IF YOU HAVE ANY QUESTIONS OR CONCERNS, PLEASE CONTACT WINCO MFG., LLC. Winco assumes no responsibility for damage or injury caused by improper assembly, installation, use, or maintenance of these products. No part of this manual may be duplicated in any form without the prior consent of Winco Mfg., LLC.
-
Page 3: Table Of Contents
HEAT / HEAT & MASSAGE OPERATION (OPTIONAL FEATURE) ............................. 23 GENERAL MAINTENANCE ..................................25 GAS SPRING RELEASE ADJUSTMENT ....................................25 GENERAL CARE & CLEANING ................................27 SPECIFICATIONS ....................................28 INVERNESS 24-HOUR TREATMENT RECLINER™OPTIONS ......................29 WARRANTY INFORMATION ................................. 30 Page 3 of 32 Document No.: 006335 Revision: K... -
Page 4: Intended Use Statement
INVERNESS 24-HOUR TREATMENT RECLINER™ INTENDED USE STATEMENT The Inverness 24-Hour Treatment Recliner is a recliner for use in medical settings. It is designed to provide comfort for patients seated up to eight (8) hours at a time while receiving treatments such as Dialysis or Infusion or during recovery from surgical procedures where positional adjustments are beneficial. -
Page 5: Important Safety Information
DO NOT MODIFY THE PLUG IN ANY WAY. No adapter should be used with this product. 14. For an added level of safety; Winco recommends the use of a 120 volt GFCI (ground fault circuit interrupter) outlet. - Page 6 OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ IMPORTANT: PLEASE READ For Heat & Heat and Massage Chairs: This equipment is marked with the industry recognized symbol indicating it is a “Class II Double-Insulated” device as defined by IEC 60601-1. As such, it does NOT require a three conductor power cord (i.e.
-
Page 7: For All Configurations (With Or Without Heat, Massage, Etc.)
ONLY when moving the chair. 10. DO NOT use recliner for transporting in or with ANY type of vehicle or trailer. Winco recliners have not been tested or approved for use by an occupant in any type of vehicle or trailer. -
Page 8: Assembly Instructions
OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ ASSEMBLY INSTRUCTIONS BACK ASSEMBLY Lock casters by pushing down the central-lock lever located at the rear of chair. (See Lock/Unlock Casters). Keep objects and persons clear of the chair before performing step 2. - Page 9 OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ BACK ASSEMBLY - CONTINUED 4. Hold the rear apron up, exposing the mounting brackets (A). Lift the upholstered back by its sides while aligning the mounting brackets with the recline mechanism (B).
-
Page 10: Armrest Cover Installation (Optional Accessory)
OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ ARMREST COVER INSTALLATION (OPTIONAL ACCESSORY) NOTE: Cover designs will vary based on chair options (i.e. tables, heat/massage, etc.) CHAIRS WITH SIDE TABLES Raise the side table by grasping the center of the table and gently lift into place. - Page 11 OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ ARMREST COVER INSTALLATION - CONTINUED CHAIRS WITH PIVOT TABLES Loosen pivot table knob. 2. Remove pivot table by pulling straight up on pivot table. 3. Find pivot table opening located in the upper front portion of the armrest cover.
- Page 12 OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ ARMREST COVER INSTALLATION - CONTINUED CHAIRS WITH IV POLES Using a Phillips screw driver, remove the top screw mounting the IV bracket to the arm and loosen the bottom screw enough to allow the bracket to move. (Be careful not to allow the bracket to damage the vinyl) 2.
-
Page 13: Operating Instructions: Attendant
OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ OPERATING INSTRUCTIONS: ATTENDANT CASTER OPERATION: LOCK / UNLOCK This chair features two types of casters, rigid and total-lock. The front two casters are rigid casters. They are NOT designed to swivel in order to facilitate stable straight steering. -
Page 14: Recline Chair (Attendant Position)
OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ RECLINE CHAIR (ATTENDANT POSITION) Attendant should be positioned on the RIGHT or LEFT side of chair. While occupant is seated in the chair, use one hand to operate the recline lever, located on either side of chair, to activate the leg rest into its raised position. -
Page 15: Return Chair To Upright Position (Attendant Position)
OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ RETURN CHAIR TO UPRIGHT POSITION (ATTENDANT POSITION) Attendant should be positioned on the RIGHT or LEFT side of chair. While occupant is reclined in the chair, attendant should use one hand to operate the recline lever (A), located on either side of chair, while using the other hand to pull up on the back (B). -
Page 16: Placing Chair In Trendelenburg (Attendant Only)
OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ Trendelenburg is a medical patient positioning treatment. It should ONLY be used by trained personnel AND where indicated by patient condition. IMPORTANT PLACING CHAIR IN TRENDELENBURG (ATTENDANT ONLY) Attendant should be positioned on the RIGHT or LEFT side of chair. -
Page 17: Swing-Arm Operation (Attendant Only)
OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ SWING-ARM OPERATION (ATTENDANT ONLY) Attendant should be positioned on the RIGHT or LEFT side of chair. TO OPEN: Press down on red latch handle to unlock Swing-Arm. • Do NOT leave occupant unattended with either or both swing- arms unlatched. -
Page 18: Transferring Patient To Chair
OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ TRANSFERRING PATIENT TO CHAIR Attendant should be positioned on the RIGHT or LEFT side of chair. Lock all four casters. 2. Place chair into seated or reclined position relative to the position from which occupant is being transferred. -
Page 19: Side Table Operation (Optional Feature)
OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ SIDE TABLE OPERATION (OPTIONAL FEATURE) TO RAISE TABLE: Grasp center of table and gently lift into place. Side-table will lock into place with an audible "click" once fully extended. • DO NOT lean or sit on side tables. -
Page 20: Pivot Table Operation (Optional Feature)
OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ PIVOT TABLE OPERATION (OPTIONAL FEATURE) POSITION TABLE Loosen the adjustment knob (A) and swing away or place in the "lap" position. 2. Tighten adjustment knob (A) to secure position. • DO NOT lean or sit on pivot-tables. -
Page 21: Operating Instructions: Occupant
OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ OPERATING INSTRUCTIONS: OCCUPANT RECLINE WHILE IN THE SEATED POSITION While seated in the chair, pull back on either of the recline levers (A), located on either side of chair, to activate the leg rest into the recline position. -
Page 22: Returning To Seated Position
OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ RETURNING TO SEATED POSITION To return the back to the full upright position pull back on either of the recline levers while sitting upright in the chair. Release the recline lever once the back has fully returned to the upright position. -
Page 23: Heat / Heat & Massage Operation (Optional Feature)
OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ HEAT / HEAT & MASSAGE OPERATION (OPTIONAL FEATURE) Control is located on the inside of right arm of chair. (Right is determined - as if sitting in the chair) HEAT *Heating elements are located in the seat & the seat-back of chair... -
Page 24: Troubleshooting
If switch displays a flashing light, disconnect from wall, check all accessible wire connectors under chair for possible loose connections, then re-plug into wall and test again. • If system still does not work contact Winco customer service: 1-800-237-3377. CORD STORAGE: For models with Heat (HT) or Heat & Massage (HM) To prevent tripping on cord, damage to cord, or damage to recliner, the power cord should be coiled and stored in the "Hook &... -
Page 25: General Maintenance
OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ GENERAL MAINTENANCE GAS SPRING RELEASE ADJUSTMENT If recline levers fail to operate properly, adjust the gas spring using the instructions below. Open swing-arms, lift safety aprons and remove (4) wing-nuts from seat mechanism. - Page 26 OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ GAS SPRING RELEASE ADJUSTMENT - CONTINUED Chair will not recline: 5. If chair will NOT recline when left or right recline levers are pulled, rotate the gas spring clockwise (A) half (1/2) of a revolution (or 180°).
-
Page 27: General Care & Cleaning
Periodically position the chair back into full recline position to keep the gas cylinder lubricated. Winco furnishings are built to provide durable reliable service when properly cared for. In general all of our products should be: 1) Cleaned, 2) Rinsed and 3) Allowed to air dry. It is important to note that disinfecting a product is not the same as cleaning the product. -
Page 28: Specifications
IN ALL CASES THE LABELING ON THE CHAIR AT THE TIME OF DELIVERY INDICATES THE CORRECT RATING FOR YOUR CHAIR - WEIGHT RATING SHOULD NOT BE EXCEEDED! SPECIFICATIONS 6240: Inverness 24-Hour Treatment Recliner™ Seat Height ................................. 25.5” (64.77 cm.) to Foot plate ................................19" (48.26 cm.) Seat Width .................................. -
Page 29: Inverness 24-Hour Treatment Recliner™Options
OWNERS OPERATING & MAINTENANCE MANUAL INVERNESS 24-HOUR TREATMENT RECLINER™ INVERNESS 24-HOUR TREATMENT RECLINER™OPTIONS Heat / Heat & Massage IV Pole & Attachment Side Table HM ....... Heat & Massage IV ....IV Pole & Attachment Available on Left, Right or HT ........ -
Page 30: Warranty Information
Limited One Year Complete Product Warranty: Winco Mfg., LLC warrants the complete product for one (1) year. At Winco Mfg., LLC’s sole discretion, it may repair or replace any components that are found to be defective during the first year after shipment from the Winco facilities. Winco Mfg., LLC, shall not be liable for any labor, or any other costs incurred as a result of or in conjunction with a warranty claim. -
Page 31: Document No
We reserve the right to add or delete products at any time and without prior notice. Always provide your product's specific serial number when ordering any replacement parts. When in doubt, contact a Winco representative (352-854-2929 or 1-800-237-3377) for further information. - Page 32 Document No.: 006335 Owners Operating and Maintenance Manual Revision: K Copyright © 2019 Winco Mfg., LLC CONTACT US To arrange a demonstration or to speak with one of our associates, please feel free to contact us at: 800-237-3377 | WincoMfg.com | 5516 SW 1st Lane, Ocala, FL 34474 | Info@WincoMfg.com...
