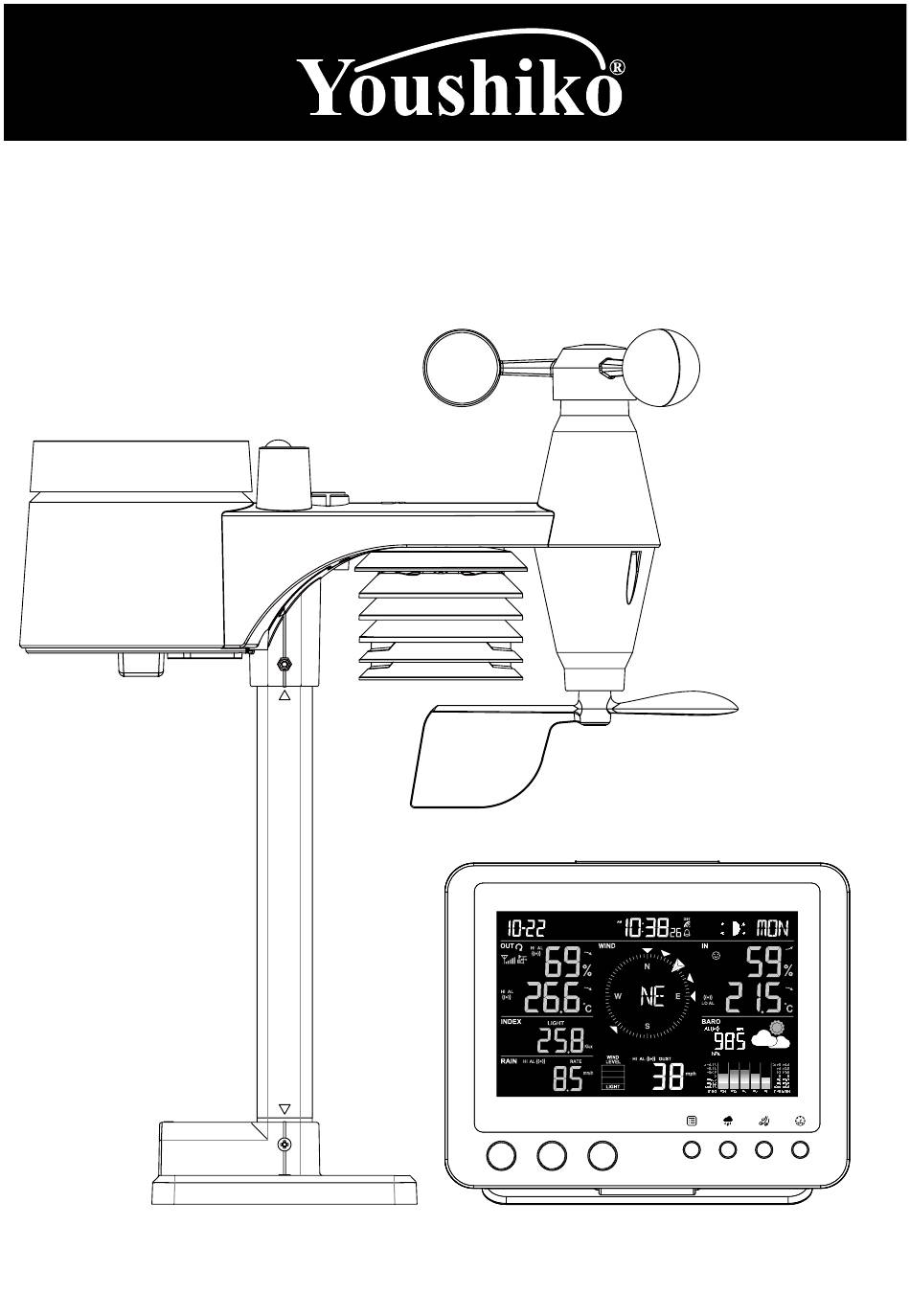

- Page 1 RC FULL COLOR DISPLAY WEATHER STATION WITH 7-IN-1 PROFESSIONAL SENSOR Model: YC9466 USER MANUAL CHANNEL HISTORY MAX/MIN...
-
Page 2: Table Of Contents
CONTENTS PRECAUTIONS..........................2 INTRODUCTION…………………………………………………………………………………………….3 OVERVIEW……………………………………………………………………………………………..4 INSTALLATION..........................5 TIME & CALENDAR........................8 TEMPERATURE & HUMIDITY......................10 BAROMETRIC PRESSURE & WEATHER FORECAST............11 RAIN............................12 WIND SPEED & WIND DIRECTION...................12 UV INDEX, LIGHT INTENSITY & WEATHER INDEX..............14 HISTORY DATA (ALL RECORDS IN THE PAST 24 HOURS)............15 MAX/MIN MEMORY FUNCTION....................15 WEATHER ALERT SETTING......................16 WIRELESS SIGNAL RECEPTION....................17 BACK LIGHT...........................17... -
Page 3: Introduction
- Only use attachments/accessories specified by the manufacturer. - Images shown in this manual may differ from the actual display. - Placement of this product on certain types of wood may result in damage to its finishing for which manufacturer will not be responsible. Consult the furniture manufacturer’s care instructions for information. - An appliance is only suitable for mounting at height ≤... -
Page 4: Overview
OVERVIEW CONSOLE 11 12 13 14 15 16 SENSOR RESET DC5V 600mA CHANNEL HISTORY MAX/MIN 19 20 21 22 1. Detachable table stand 9. [ BARO ] key 17. Power in 2. [ SNOOZE ] key 18. [ °C / °F ] key 10. -
Page 5: Installation
WIRELESS 7-IN-1 SENSOR 1. Antenna 2. Rain collector 3. UVI / light sensor 4. Mounting pole 5. Mounting base 6. Balance indicator 7. Wind cup 8. Radiation shield 9. Wind vane 10. Red LED indicator 11. [ RESET ] key 12. - Page 6 Step 2 Place the nut in the hexagon hole on the sensor, then insert the screw in other side and tighten it by the screw driver. Step 3 Insert the other side of the pole to the square hole of the plastic stand.
-
Page 7: Mounting Guidelines
MOUNTING GUIDELINES 1. Install the wireless 7-IN-1 sensor at least 1.5m off the ground for better and more accurate wind measurements. 2. Choose an open area within 150 meters from the LCD console. 3. Install the wireless 7-IN-1 sensor as level as possible to achieve accurate rain and wind measurements. 4. -
Page 8: Time & Calendar
TABLE STAND INSTALLATION This unit is designed for desktop or wall mount for easy viewing. Follow the steps to hook the table stand on the bottom of the console. Step 1 Step 2 PAIRING OF WIRELESS 7-IN-1 SENSOR WITH CONSOLE After power up, the console will automatically search and connect the wireless 7-IN-1 sensor (antenna blinking). -
Page 9: Setting Alarm Time
TIME SETTING The unit automatically set itself accordingly to the Radio Controlled Clock signal it received. To set the clock/ calendar manually, first permanently disable the reception by holding the RCC key for 8 seconds (Press RCC key for 8 seconds again to enable the RCC reception). TO MANUALLY SET THE CLOCK / TIME ZONE SELECTION 1. -
Page 10: Temperature & Humidity
TEMPERATURE & HUMIDITY OUTDOOR / CHANNEL 1. Auto loop indicator 2. Low battery indicator 3. Signal strength indicator 4. CH indicator and sensor indicator 5. Temperature alert indicator 6. Temperature reading 7. Humidity alert indicator 8. Humidity trend 9. Humidity reading 10. -
Page 11: Barometric Pressure & Weather Forecast
OTHER OPTIONAL SENSOR This console can also support the following optional sensors for channels 1 ~3. SENSOR Wireless thermo-hygro NAME sensor PHOTO ICON IN CHANNEL DATA Temperature & Humidity BAROMETRIC PRESSURE & WEATHER FORECAST 1. Baro pressure alert indicator 2. Baro pressure reading 3. -
Page 12: Rain
TO SET RELATIVE ATMOSPHERIC PRESSURE VALUE 1. Get the atmosphere pressure data of the sea level (it is also the relative atmosphere pressure data of your home area) through the local weather service, Internet and other weather channels. 2. Press and hold the [ BARO ] key for 2 seconds until ABS or REL icon flashes. 3. -
Page 13: Wind Speed & Wind Direction
WIND SPEED & WIND DIRECTION 1. Wind direction reading 2. Wind alert indicator 3. Wind speed level 4. Current wind direction indicator 5. Wind directions appeared in last 5 minutes (max 6 indicator mark) 6. Gust or average wind speed indicator 7. -
Page 14: Uv Index, Light Intensity & Weather Index
20 ~ 28 km/h 13 ~ 17 mph Dust and loose paper raised. Small branches Moderate breeze begin to move. 11 ~ 16 knot 5.5 ~ 7.9 m/s 29 ~ 38 km/h 18 ~ 24 mph Branches of a moderate size move. Fresh breeze Small trees in leaf begin to sway. -
Page 15: Dew Point
FEELS LIKE Feels Like Temperature shows what the outdoor temperature will feel like. It’s a collective mixture of Wind Chill factor (18°C or below) and the Heat Index (26°C or above). For temperatures in the region between 18.1°C to 25.9°C where both wind and humidity are less significant in affecting the temperature, the device will show the actual outdoor measured temperature as Feels Like Temperature. -
Page 16: Weather Alert Setting
MAX light intensity. When the valid CH 1, 2 or 3 temperature / humidity is shown: Press the [ MAX / MIN ] key to check the MAX / MIN records in the following display sequence: Indoor MAX temperature Indoor MIN temperature Indoor MAX humidity Indoor MIN humidity pressure... -
Page 17: Wireless Signal Reception
5. Press [ ALARM ] key to toggle the regarding alert on / off. 6. Press [ ALERT ] key to confirm and shift to next alert reading. 7. When you complete the setting, press and hold with 2 second to exit alert setting. NOTE: - If no key is pressed, it will automatically exit alert mode after 60 seconds. -
Page 18: Moon Phase
MOON PHASE In the Northern hemisphere, the moon Southern Northern Moon Phase waxes (the part of the moon we see hemisphere hemisphere that glows after the New Moon) from the New Moon right. Hence the sun-lit area of the moon moves from right to left in the Northern Hemisphere, while in the Southern Waxing Crescent... -
Page 19: Troubleshooting
TROUBLESHOOTING Problem / Symptom Solution Strange or no measurement of Rain Sensor 1. Check the drain hole in the rain collector. 2. Check the balance indicator. Strange or no measurement of Thermo / Hygro 1. Check the radiation shield. Sensor 2. - Page 20 673g with batteries Battery 3 x AA size 1.5V batteries (Lithium battery recommended for low temperature usage) RF Frequency 868 MHz RF transmission range Up to 150 meters Transmission Every 12 seconds All enquiries: service@youshiko.co.uk Made for Youshiko in PRC...
