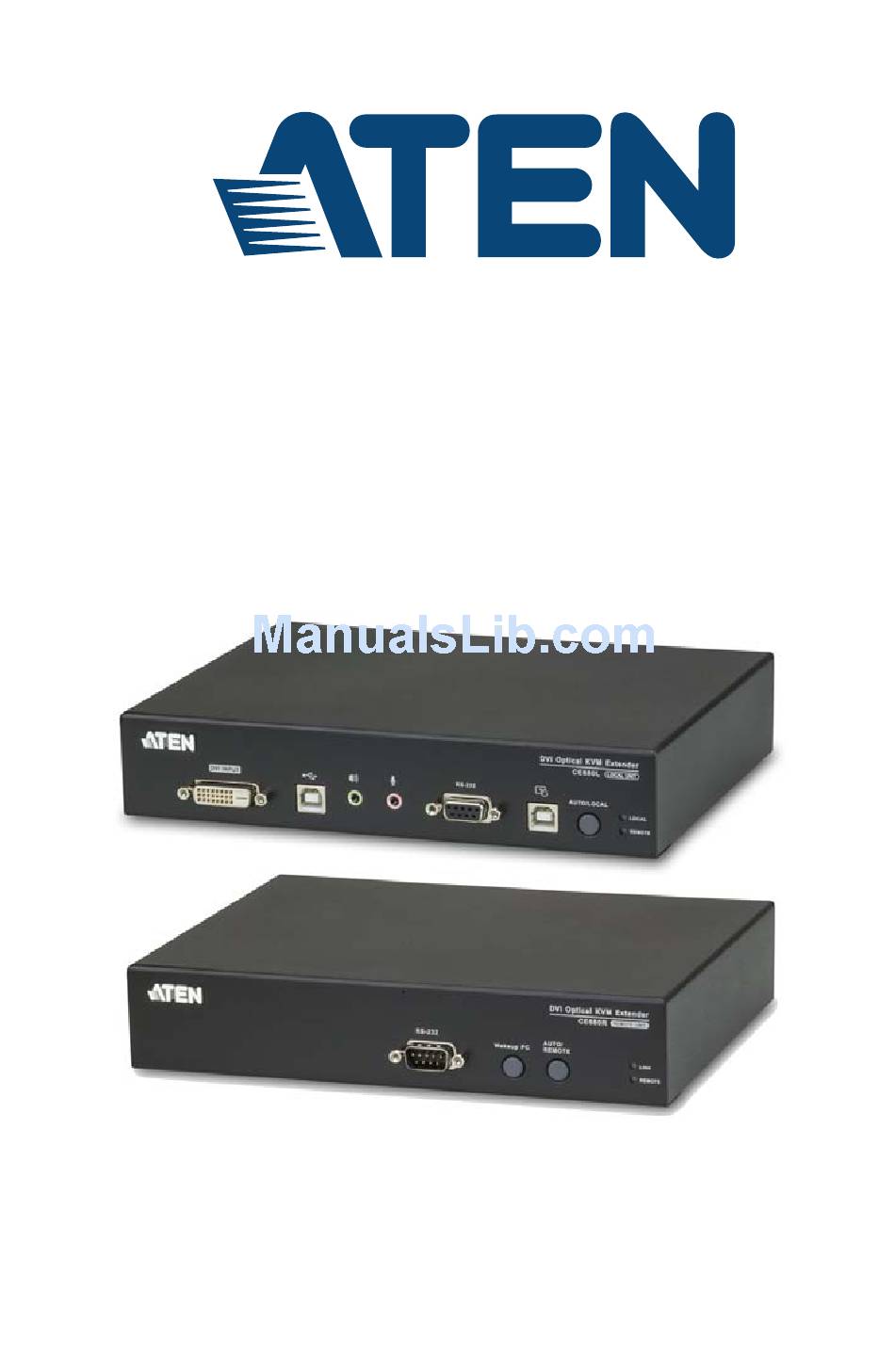

- Page 1 DVI Optical KVM Extender CE680 / CE690 User Manual www.aten.com...
-
Page 2: Emc Information
CE680 / CE690 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: User Information
CE680 / CE690 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America... -
Page 4: Package Contents
* Features may have been added to the CE680 / CE690 since this manual was published. Please visit our website to download the most up-to-date version of the manual. -
Page 5: Table Of Contents
CE680R / CE690R (Remote Unit) Front View....6 CE680 / CE690 (Local / Remote Unit) Rear View ....7 2. - Page 6 CE680 / CE690 User Manual Keyboard Operating Platform ....... 21 Hotkey Summary Table.
-
Page 7: About This Manual
An overview of the information found in the manual is provided below. Chapter 1, Introduction, introduces you to the CE680 / CE690 system. Its purpose, features and benefits are presented, and its front and back panel components are described. -
Page 8: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 9: Introduction
Introduction Overview The CE680 / CE690 is a DVI Optical KVM Extender that overcomes the length restriction of standard DVI cables by using optical fiber to send high definition audio, video and control signals over long distance. It accepts audio-video stream from a local source and serializes the data to pass over a single 3.125... -
Page 10: Features
Superior video quality of up to 1920 x 1200 @ 60 Hz (24-bits) – get an excellent, crisp image on your screen over long distance transmissions (up to 600 m for CE680; up to 20 km for CE690) Dual console operation – control your system from both the local and remote USB keyboard, monitor, and mouse consoles Pushbutton operating mode selection –... -
Page 11: Requirements
Note: It is recommended that you use a Single Mode optical fiber cable that conforms to IEC 60793-2-50 B1.1 or ITU-T G.652.B specifications. If you wish to utilize the CE680 / CE690’s high-end serial controller function, you need to purchase an appropriate RS-232 cable... -
Page 12: Operating Systems
CE680 / CE690 User Manual Maximum Cable Distances Connection Distance Computer to Local Unit (CE680L / CE690L) Local Unit (CE680L / CE690L) 600 m (CE680) 20 km (CE690) to Remote Unit (CE680R / CE690R) Remote Unit (CE680R / CE690R) to monitor... -
Page 13: Components
Chapter 1. Introduction Components CE680L / CE690L (Local Unit) Front View Component Description KVM Port Use the Custom KVM cable supplied with this unit: DVI Input port: The DVI connector of the provided Custom KVM cable that connects to your computer plugs into this port. -
Page 14: Ce680R / Ce690R (Remote Unit) Front View
CE680 / CE690 User Manual CE680R / CE690R (Remote Unit) Front View Component Description RS-232 Serial Port RS-232 serial devices – such as barcode scanners – plug into this port. Wake Up PC Press the Wakeup PC pushbutton to wake the Pushbutton computer at the local site through the RS-232 port. -
Page 15: Ce680 / Ce690 (Local / Remote Unit) Rear View
Chapter 1. Introduction CE680 / CE690 (Local / Remote Unit) Rear View Component Description Cable Tie Slot If you want to use a cable tie to gather the cables together, you can run it through this slot to attach it to the unit. - Page 16 CE680 / CE690 User Manual This Page Intentionally Left Blank...
-
Page 17: Hardware Setup
Keyboard Power On function. Mounting For convenience and flexibility, the CE680 / CE690 can be mounted on system racks. To rack mount a unit do the following: 1. Using the screws provided in the Mounting Kit, screw the mounting bracket into the bottom panel of the unit: 2. -
Page 18: Installation
CE680 / CE690 User Manual Installation Setting up the CE680 / CE690 DVI Optical KVM Extender system is simply a matter of plugging in the cables. Make sure that all the equipment to be connected up is powered off. Refer to the installation diagrams (the numbers in... -
Page 19: Rs-232 Function
Chapter 2. Hardware Setup RS-232 Function Steps 7–8 are for incorporating a serial terminal or other serial devices into your installation. Do the following steps: 7. (Optional) For control of serial devices and/or to use Wake Up PC feature (see page 18), connect a local computer to the RS-232 Serial port on the local unit. -
Page 20: Installation Diagrams
CE680 / CE690 User Manual Installation Diagrams Front View CE680L / CE690L Custom KVM cable set Local PC CE680R / CE690R... -
Page 21: Rear View
Chapter 2. Hardware Setup Rear View 10 10 Touchscreen CE680L / CE690L Fiber Optic cable 10 10 Touchscreen CE680R / CE690R Note: The serial port on the CE680L / CE690L connects to the computer; the serial port on the CE680R / CE690R connects to a serial device (optional). - Page 22 CE680 / CE690 User Manual This Page Intentionally Left Blank...
-
Page 23: Operation
(page 18). The LEDs on the front panel indicate the operating status of the device (page 19). Operating Modes The CE680 / CE690 DVI Optical KVM Extender has three operating modes – Local, Auto, and Remote, as described in the table below: Mode... -
Page 24: Mode Selection
CE680 / CE690 User Manual Mode Selection The Operating Mode Selection switch, located on each unit’s front panel, controls the operating mode of the DVI Optical KVM Extender system. Pressing the switch toggles the operating mode as follows: CE680R / CE690R... -
Page 25: Led Display
Chapter 3. Operation LED Display The CE680 / CE690 Local and Remote units have front panel LEDs to indicate their operating status, as shown in the tables, below: CE680L / CE690L (Local Unit) Indication Local (Green) Lights when the local console is active (the Remote LED is off). -
Page 26: Firmware Upgrade
Remote unit to enter the firmware upgrade mode. 2. Connect a computer to the RS-232 port of the local/remote unit. 3. Use ATEN Firmware upgrade utility to do the firmware upgrade. Note: Do these steps for the Local and Remote units individually (Single Unit Mode, page 26). -
Page 27: Hotkey Setting Mode
Chapter 3. Operation Hotkey Setting Mode The administrator and users can use hotkey combinations to configure a number of the DVI Optical KVM Extender’s working environment parameters. All Hotkey operations begin by invoking Hotkey Setting Mode (HSM). Invoking HSM To invoke HSM (CE680L / CE690L only), do the following: Control and F12 Keys 1. -
Page 28: When Hotkey Mode Is Active
CE680 / CE690 User Manual When Hotkey Mode is active: The Caps Lock, and Scroll Lock LEDs flash in succession to indicate that HSM is in effect. They stop flashing and revert to normal status when you exit HSM. A Command Line appears on the monitor screen. The command line prompt is the word Hotkey: in yellow text on a blue background. -
Page 29: Keyboard Operating Platform
Chapter 3. Operation Keyboard Operating Platform The CE680 / CE690's default configuration is for a PC Compatible keyboard operating platform. If you have a Mac or a Sun on your installation, you can change the keyboard operating platform as follows: 1. -
Page 30: Hotkey Summary Table
CE680 / CE690 User Manual Hotkey Summary Table After invoking HSM (see page 19), key in one of the following keys to perform the corresponding function: Function Toggles between the default ([Ctrl] [F12]) and alternate ([Num Lock] [–]) Hotkey invocation keys. -
Page 31: Keyboard Emulation
Chapter 4 Keyboard Emulation Mac Keyboard The PC compatible (101/104 key) keyboard can emulate the functions of the Mac keyboard. The emulation mappings are listed in the table below. PC Keyboard Mac Keyboard [Shift] Shift [Ctrl] Ctrl [Ctrl] [1] [Ctrl] [2] [Ctrl] [3] [Ctrl] [4] [Alt]... -
Page 32: Sun Keyboard
CE680 / CE690 User Manual Sun Keyboard The PC compatible (101/104 key) keyboard can emulate the functions of the Sun keyboard when the Control key [Ctrl] is used in conjunction with other keys. The corresponding functions are shown in the table below. -
Page 33: The Firmware Upgrade Utility
Upgrade Methods You can upgrade the CE680 / CE690 firmware using the following methods: Single Unit Mode – Upgrade the CE680L / CE690L (Local Unit) or CE680R / CE690R (Remote Unit) individually Local and Remote Mode –... -
Page 34: Single Unit Mode
CE680 / CE690 User Manual Single Unit Mode To prepare for the Firmware Upgrade, do the following: 1. Turn off the CE680L / CE690L or CE680R / CE690R and unplug the power adapter. 2. Push and hold the Operation Mode pushbutton on the CE680L / CE690L or CE680R / CE690R front panel. - Page 35 Chapter 5. The Firmware Upgrade Utility 2. Read and agree to the License Agreement (enable the I Agree radio button). 3. Click Next to continue. The Firmware Upgrade Utility main screen appears: The Utility inspects your installation. The Local/Remote Unit is listed in the Device List panel and automatically selected for upgrade.
- Page 36 CE680 / CE690 User Manual As the upgrade proceeds, status messages appear in the Status Messages panel, and the progress toward completion is shown on the Progress... bar. The highlight / color of the device name in the Device List panel also...
-
Page 37: Local And Remote Mode
Chapter 5. The Firmware Upgrade Utility Local and Remote Mode To prepare for the Firmware Upgrade of both Local and Remote units, do the following: 1. Turn off both CE680L / CE690L and CE680R / CE690R units and unplug their power adapters. 2. - Page 38 CE680 / CE690 User Manual Starting the Upgrade To upgrade your firmware: 1. Run the downloaded Firmware Upgrade Package file (CE680_CE690_Vx.x.xxx.exe)) – either by double clicking the file icon, or by opening a command line and entering the full path to it.
-
Page 39: Upgrade Succeeded
Chapter 5. The Firmware Upgrade Utility If you enabled Check Firmware Version, the Utility compares the device's firmware level with that of the upgrade files. If it finds that the device's version is higher than the upgrade version, it brings up a dialog box informing you of the situation and gives you the option to Continue or Cancel. -
Page 40: Upgrade Failed
CE680 / CE690 User Manual Upgrade Failed For the Single Unit upgrade mode, if the Upgrade Succeeded screen does not appear, then the upgrade failed to complete successfully. You should repeat the upgrade procedure from the beginning. For the Local and Remote Unit upgrade mode (upgrading both units at the same time), if the CE680L / CE690L upgrade failed, switch to Single Unit Mode. -
Page 41: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 42 CE680 / CE690 User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 43: Rack Mounting
Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack. -
Page 44: Technical Support
CE680 / CE690 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, see Telephone Support, page iii: North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates... -
Page 45: Specifications
Appendix Specifications Function CE680L / CE690L CE680R / CE690R Connectors Video 1 x DVI-D Female Ports (White) Speakers 1 x Mini Stereo Jack Female (Green) Mic. 1 x Mini Stereo Jack Female (Pink) 1 x USB Type B (Keyboard / Female (White) Mouse) 1 x USB Type B... -
Page 46: Limited Warranty
Function CE680L / CE690L CE680R / CE690R Fiber Optics Operating Distance 600 m (CE680) / 20 km (CE690) with Single Mode (SM) fiber Wavelength 1310 / 1550 nm for SM Data Rate Single fiber: 1920 x 1200 @60 Hz (24-bits;...
