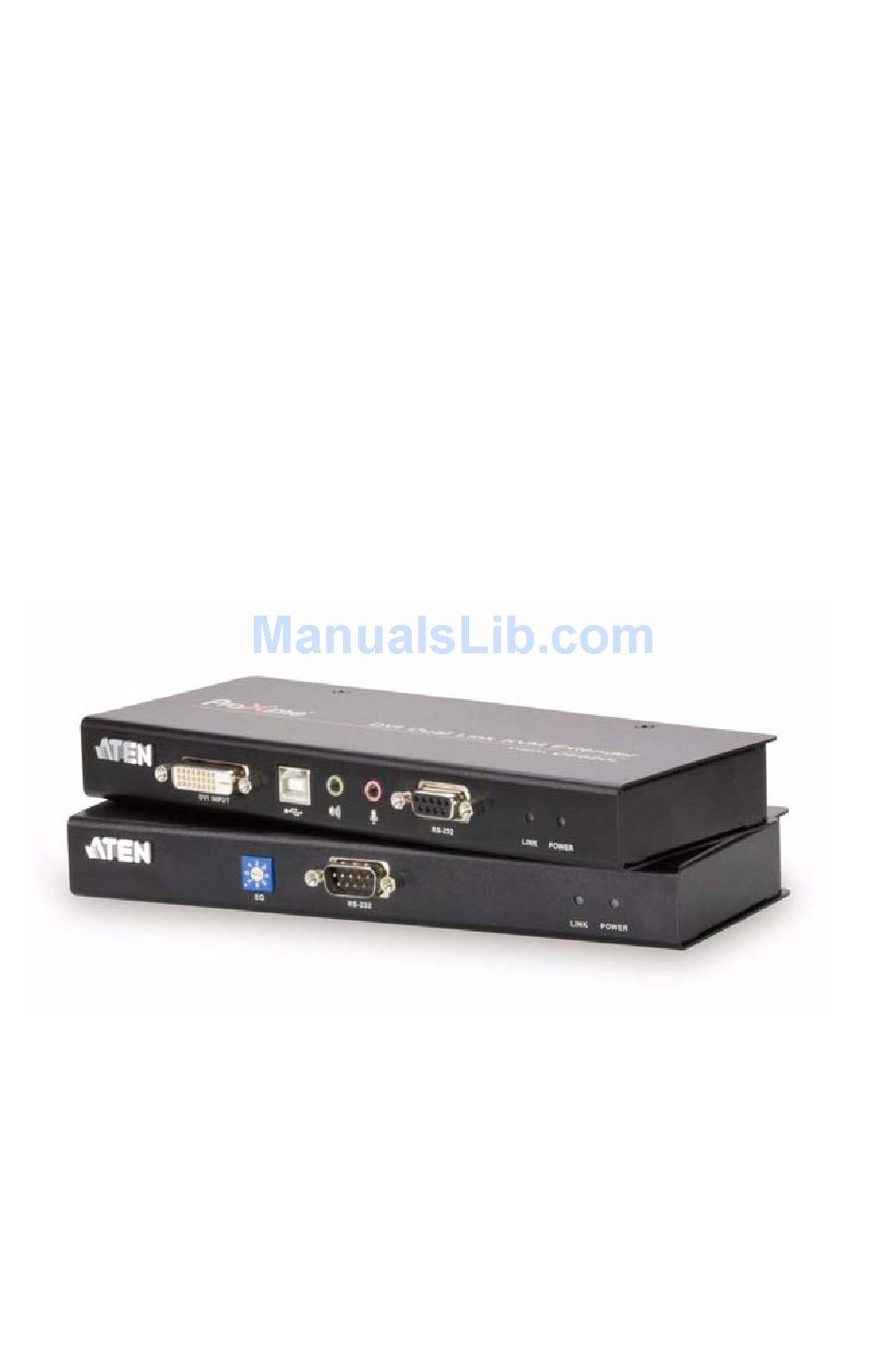

- Page 1 DVI KVM Extender CE600 / CE602 User Manual www.aten.com...
-
Page 2: Fcc Information
CE600 / CE602 User Manual FCC Information This is an FCC Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 3: User Information
PLEASE VERIFY THAT THE VOLTAGE SETTING IS CORRECT BEFORE USE. This ATEN product is specifically designed and manufactured for the operation and management of computer mainframe and communications equipment used in network management centers. As such, it may not be completely appropriate for those environments and sites where special standards for performance and high reliability are required –... -
Page 4: Package Contents
* Features may have been added to the CE600 / CE602 since this manual was printed. Please visit our website to download the most up-to-date version of the manual. -
Page 5: Table Of Contents
CE600 / CE602 User Manual Contents FCC Information ..........ii RoHS. - Page 6 CE600 / CE602 User Manual Appendix Safety Instructions ......... . 25 General .
-
Page 7: About This Manual
An overview of the information found in the manual is provided below. Chapter 1, Introduction, introduces you to the CE600 / CE602 system. Its purpose, features and benefits are presented, and its front and back panel components are described. -
Page 8: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 9: Introduction
This is ideal for managing highly confidential data systems. The CE600 uses one Cat 5e cable (DVI Single Link) to support up to 1920 x 1200 video resolution. The CE602 can support up to 2560 x 1600 (DVI Dual Link) resolution and requires a second Cat 5e cable to transfer HDCP, RS-232, microphone and dual link signals. -
Page 10: Features
DVI interface monitor) Supports DVI-D interface and allows transmission of DVI dual-link signals (CE602) Features ATEN technology that allows A/V transmission over one Cat 5e cable Enable HDCP, RS-232, microphone and dual link signals by adding a second Cat 5e cable (CE602 only) Note: The length of the two Cat 5e cables must be the same. -
Page 11: Requirements
KVM Cable that is provided with this package. Cat 5e cable is required to connect the Local and Remote CE600 / CE602 Units. Cable of a lower standard will result in degrading of the video signal. -
Page 12: Operating Systems
CE600 / CE602 User Manual Operating Systems Supported operating systems are shown in the table, below: Version Windows 2000, 2003, 2008, XP, Vista, 7 Linux RedHat 9.0 and higher SuSE 10 / 11.1 and higher Debian 3.1 / 4.0 Ubuntu 7.04 / 7.10... -
Page 13: Components
Chapter 1. Introduction Components CE600L / CE602L (Local Unit) Front View Component Description DVI port Connect a DVI cable from a computer to this port. USB Type B Input The USB cable from your computer or USB hub plugs in here. Audio Ports These mini stereo ports are for the speakers (green) and microphone (pink). -
Page 14: Ce600R / Ce602R (Remote Unit) Front View
CE600 / CE602 User Manual CE600R / CE602R (Remote Unit) Front View Component Description EQ Switch Use this to adjust the video quality of the remote console. RS-232 Serial Port RS-232 serial devices – such as touchscreens or barcode scanners – plug into this port. -
Page 15: Ce600L / Ce602L (Local Unit) Rear View
Chapter 1. Introduction CE600L / CE602L (Local Unit) Rear View Component Description F/W Upgrade Switch Use this switch to turn on the firmware upgrade mode. Reset the power to proceed with the firmware upgrade. Switch it off and reset the power to return to normal mode. - Page 16 CE600 / CE602 User Manual Component Description Sub / Main The Cat 5e cable that connects the Remote and Local Units plugs in here. Dual Link DVI (CE602 only): uses 2 cables Single Link DVI: uses 1 cable (Main-to-Main) (Note: If HDCP, RS-232, microphone and dual link signals are needed, the Sub cable must be connected.)
-
Page 17: Hardware Setup
Keyboard Power On function. Rack Mounting For convenience and flexibility, the CE600 / CE602 can be mounted on system racks. To rack mount a unit do the following: 1. Using the screws provided in the Rack Mount Kit, screw the mounting... - Page 18 CE600 / CE602 User Manual 2. Screw the bracket into any convenient location on the rack. Note: These screws are not provided. We recommend that you use M5 x 12 Phillips Type I cross, recessed type screws.
-
Page 19: Installation
Chapter 2. Hardware Setup Installation Grounding To prevent damage to your installation it is important that all devices are properly grounded. 1. Use the two grounding wires supplied with this package to ground both units by connecting one end of the wire to the grounding terminal, and the other end of the wire to a suitable grounded object. - Page 20 CE600 / CE602 User Manual 3. For increased grounding protection, use STP (shielded twisted pair) cable to connect the Local and Remote Units. There are two methods that can be used: a) In addition to the eight paired wires, STP cable also contains a grounding wire.
-
Page 21: Setting Up
Chapter 2. Hardware Setup Setting Up Setting up the CE600 / CE602 DVI KVM Extender system is simply a matter of plugging in the cables. Make sure that all the equipment to be connected up is powered Off. Refer to the installation diagram on the following page and do the following: 1. -
Page 22: Installation Diagrams
CE600 / CE602 User Manual Installation Diagrams Front View Local PC DVI KVM cable... - Page 23 Chapter 2. Hardware Setup Rear View CE600L / CE602L Cat 5e cables CE600R / CE602R Note: 1. The serial port on the CE600L / CE602L connects to the computer; the serial port on the CE600R / CE602R (not shown) connects to a serial device (optional).
- Page 24 CE600 / CE602 User Manual This Page Intentionally Left Blank...
-
Page 25: Operation
The values range from 0-7 where: 7: strongest equalization 0: weakest equalization LED Display The CE600 / CE602 Local and Remote Units have front panel LEDs to indicate their operating status, as shown in the tables, following: CE600L / CE602L (Local Units) Indication... -
Page 26: Ce600R / Ce602R (Remote Unit)
CE600 / CE602 User Manual CE600R / CE602R (Remote Unit) Indication Link Lights steadily to indicate that the connection to the Local (Green) Unit is ok. Flashes when there is a problem with the connection to the Local Unit. Power... -
Page 27: The Firmware Upgrade Utility
To prepare for the Firmware Upgrade, do the following: 1. Using a computer connected to the Local Unit, go to our Internet support site and choose the model name of your device (CE600 / CE602) to get a list of available Firmware Upgrade Packages. - Page 28 CE600 / CE602 User Manual 5. In the Local Unit’s rear panel, turn the FW Upgrade switch On. This enables both the Local and Remote Units to operate in Firmware Upgrade Mode when the Local Unit is powered on again.
-
Page 29: Starting The Upgrade
Chapter 4. The Firmware Upgrade Utility Starting the Upgrade To upgrade your firmware: 1. Run the downloaded Firmware Upgrade Package file – either by double clicking the file icon, or by opening a command line and entering the full path to it. The Firmware Upgrade Utility Welcome screen appears: Note: The screens shown in this section are for reference only. - Page 30 CE600 / CE602 User Manual 3. Click Next to continue. The Firmware Upgrade Utility main screen appears: The Utility inspects your installation. The Local and Remote Units are listed in the Device List panel and automatically selected for upgrade. 4. Click Next to perform the upgrade.
-
Page 31: Upgrade Succeeded
Chapter 4. The Firmware Upgrade Utility Upgrade Succeeded After the upgrade has completed, a screen appears to inform you that the procedure was successful: 1. Click Finish to close the Firmware Upgrade Utility. 2. After successfully upgrading the firmware, unplug the Local unit’s power adapter. - Page 32 CE600 / CE602 User Manual This Page Intentionally Left Blank...
-
Page 33: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. Do not use the device near water. - Page 34 CE600R / CE602R User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 35: Rack Mounting
Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack. -
Page 36: Technical Support
Technical support is available both by email and online (with a browser over the web): International For online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com For telephone support, see Telephone Support, page iii: North America Email Support support@aten-usa.com... -
Page 37: Specifications
Appendix Specifications Function CE600L / CE602L CE600R / CE602R Connectors Console Keyboard 1 x USB Type A Female Ports (White) Video 1 x DVI-D Female (White) Mouse 1 x USB Type A Female (White) Speakers 1 x Mini Stereo Jack Female (Green) Mic. -
Page 38: Troubleshooting
CE600R / CE602R User Manual Troubleshooting Operation problems can be due to a variety of causes. The first step in solving them is to make sure that all cables are securely attached and seated completely in their sockets. Problem Action No video Make sure that all cables are securely plugged into their sockets.
