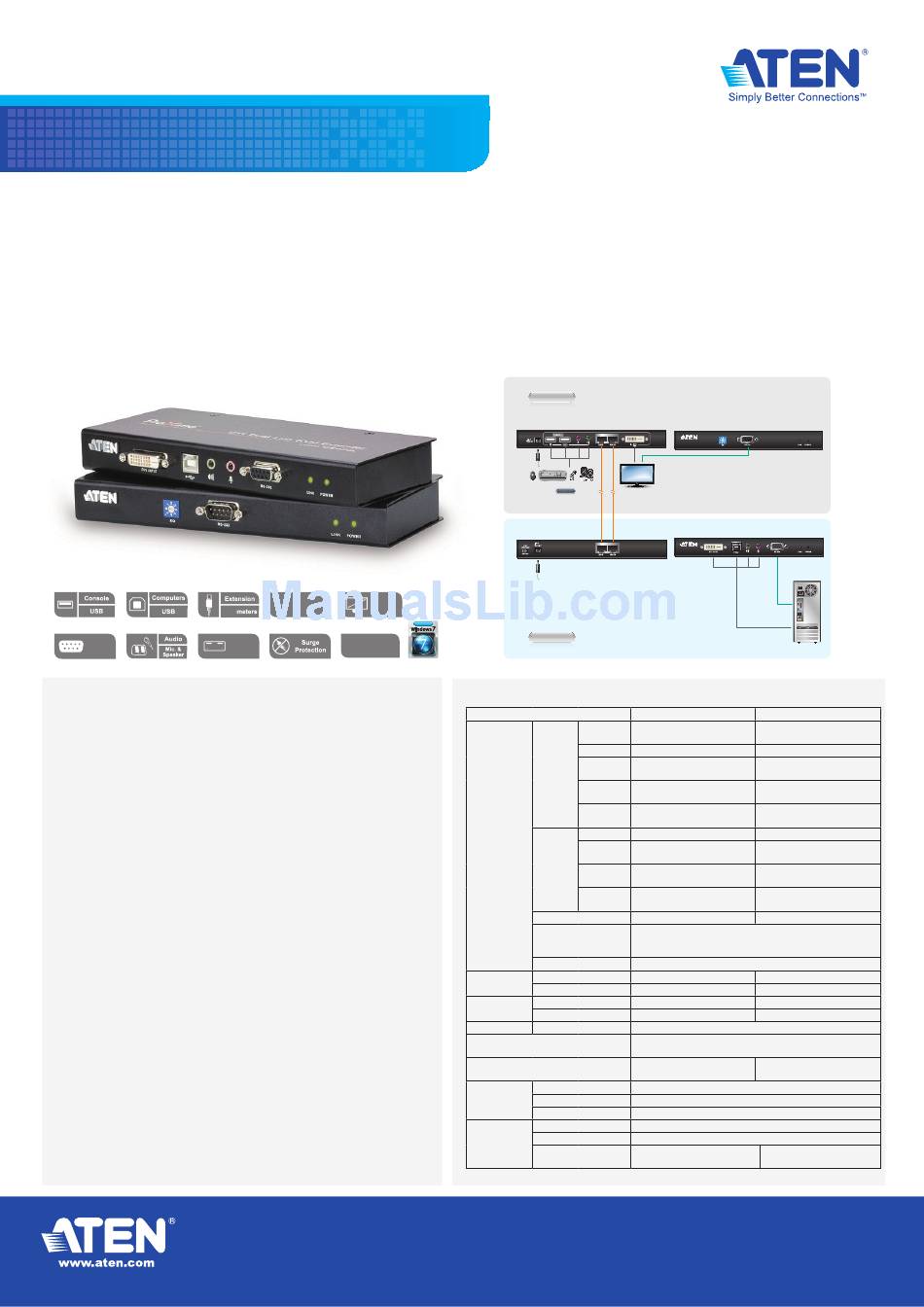

CE600/CE602
DVI KVM Extender
The CE600 / CE602 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a
computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer
system from a remote console, the CE600 / CE602 is perfect for use in any type of installation where you need to place
the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away
from the dust and dirt of the factory fl oor, or the harsh environmental infl uence of a construction site, for example. This
allows users to deploy system equipment over large distances.
The CE600 uses one Cat 5e cable (DVI Single Link) to support up to 1920 x 1080 video resolution. The CE602 can
support up to 2560 x 1600 (DVI Dual Link) resolution and requires a second Cat 5e cable to transfer HDCP, RS-232,
microphone and dual link signals.
60
Rack
RS-232
Mountable
Features
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
• Local and Remote Units connect at distances up to 60 m using
Cat 5e cable
• Allows access to a computer or KVM installation from a remote
console (up to 60m)
• Control your system from the remote console (USB keyboard,
USB mouse and DVI interface monitor)
• Supports DVI-D interface and allows transmission of DVI dual-
link signals (CE602)
• Features ATEN technology that allows A/V transmission over
one cat 5e cable
• The 2nd Cat 5e cable is used for HDCP, RS-232, microphone and
dual link signals (CE602 only)
• Manual compensation control to adjust signal strength in order
to compensate for distance
• RS-232 serial ports – connect to a serial terminal, or serial
devices such as touchscreens and barcode scanners (Baud Rate
115200 bps)
• Audio Enabled – supports stereo speakers and microphone
• Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air
voltage 15KV)
• Supports Wide Screen formats
• Superior video quality of up to 2560 x 1600 @ 60 Hz (DVI Dual
Link) at 40 m (CE602 only); 1920 x 1200 @ 60 Hz at 30 m; 1024
x 768 @ 60 Hz at 60 m – get an excellent, crisp image on your
screen over long distance transmissions
• Hot pluggable
• Rack mountable
• Easy to install – no software required – connecting cables to the
devices is all it takes
• Firmware upgrade
