Solid State Outputs
The two solid state outputs (Output #3 & Output #4) can
be programmed to activate during various conditions.
These outputs can be used to activate indicators or

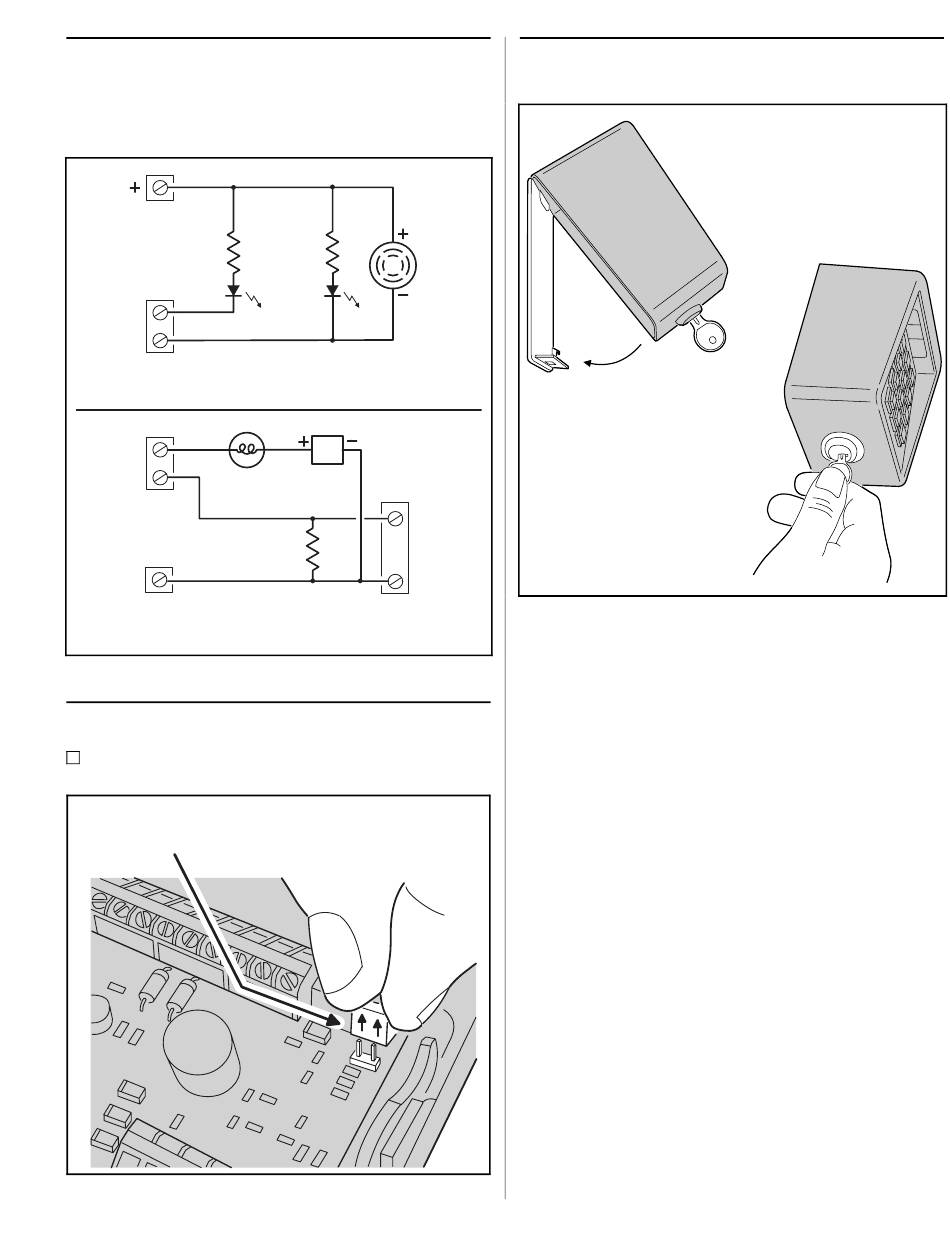

sounders. See Figure 7 for wiring examples using the solid
state outputs.
ACCESSKEY
POWER
1K Ω
LED
OUTPUT #3
OUTPUT #4
EXAMPLE 1: OUTPUT #3 LIGHTS AN LED,
OUTPUT #4 LIGHTS AN LED AND SOUNDS A BEEPER
OUTPUT #3
LOW VOLTAGE
OUTPUT #4
LAMP
END-OF-LINE
RESISTOR
COMMON
GROUND
EXAMPLE 2: OUTPUT #3 LIGHTS A LAMP POWERED FROM AN EXTERNAL
SOURCE, OUTPUT #4 TRIGGERS A NORMALLY OPEN ALARM PANEL ZONE
Figure 7. Using the Solid State Outputs
Beeper Sound Level
The keypad's beeper can be set to low or high level.
If the keypad's beeper is too loud for the keypad's
location, remove jumper JP1 (see Figure 8).
REMOVE JUMPER JP1 TO REDUCE
THE SOUND LEVEL OF THE BEEPER
Figure 8. Removing Beeper Jumper
ELECTRONIC
BEEPER
1K Ω
LED
EACH
OUTPUT
100 mA
MAXIMUM
EACH
OUTPUT
100 mA
POWER
MAXIMUM
SOURCE
N.O. ZONE
ALARM PANEL
COMMON
Locking Keypad
After the installation is complete. Lock the keypad using
the keylock (see Figure 9).
HOOK KEYPAD
ONTO BACKPLATE
USE KEY TO
LOCK KEYPAD
Figure 9. Locking the Keypad Case
