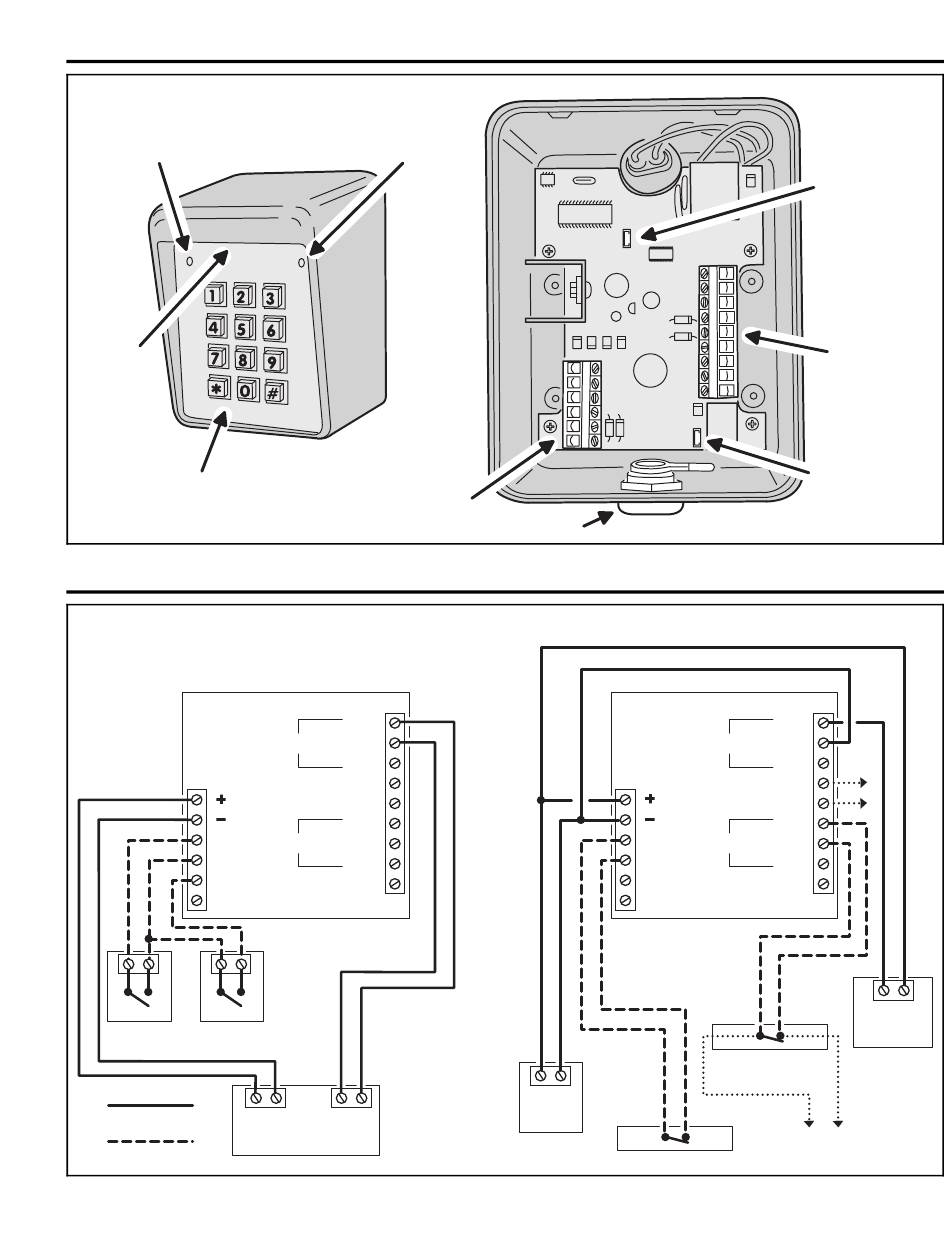

Component Locations; Wiring Diagram - Linear AccessKey Installation And Programming Instructions

COMPONENT LOCATIONS

RED/GREEN
POWER/ACCESS
INDICATOR
NIGHT
LIGHT
TACTILE
KEYPAD

WIRING DIAGRAM

TYPICAL GATE INSTALLATION WIRING
J4
1
POWER
2
3 INHIBIT
4
COMMON
5 REQUEST-TO-ENTER
6
EARTH GROUND
INHIBIT FIRE
TIMER ACCESS
REQUIRED WIRING
OPTIONAL WIRING
YELLOW
"LOCKOUT"
INDICATOR
TERMINAL BLOCK J4
POWER AND INPUTS
Figure 1. Component Locations
ACCESSKEY
J3
1
N.O.
COMMON 2
RELAY #1
N.C. 3
OUTPUT #3 4
5
OUTPUT #4
N.O. 6
7
RELAY #2 COMMON
8
N.C.
COMMON 9
GROUND
AUXILIARY OPEN
POWER
GATE OPERATOR
Figure 2. Wiring Diagram
KEYLOCK
TYPICAL DOOR INSTALLATION WIRING
ACCESSKEY
J4
1
POWER
2
3 DOOR SENSE
4
COMMON
5 REQUEST-TO-ENTER
6
EARTH GROUND
POWER
DOOR SWITCH
SUPPLY
JUMPER JP2
RESETS
MASTER CODE
TERMINAL
BLOCK J3
OUTPUTS
JUMPER JP1
REMOVE TO
REDUCE
BEEPER SOUND
J3
1
N.O.
COMMON 2
RELAY #1
TO ALARM
N.C. 3
SYSTEM
OUTPUT #3 4
5
OUTPUT #4
N.O. 6
7
RELAY #2 COMMON
8
N.C.
COMMON 9
GROUND
OPEN
ELECTRIC
ALARM CONTACT
DOOR
STRIKE
TO ALARM
SYSTEM
3
