Telephone entry & access control system

Advertisement

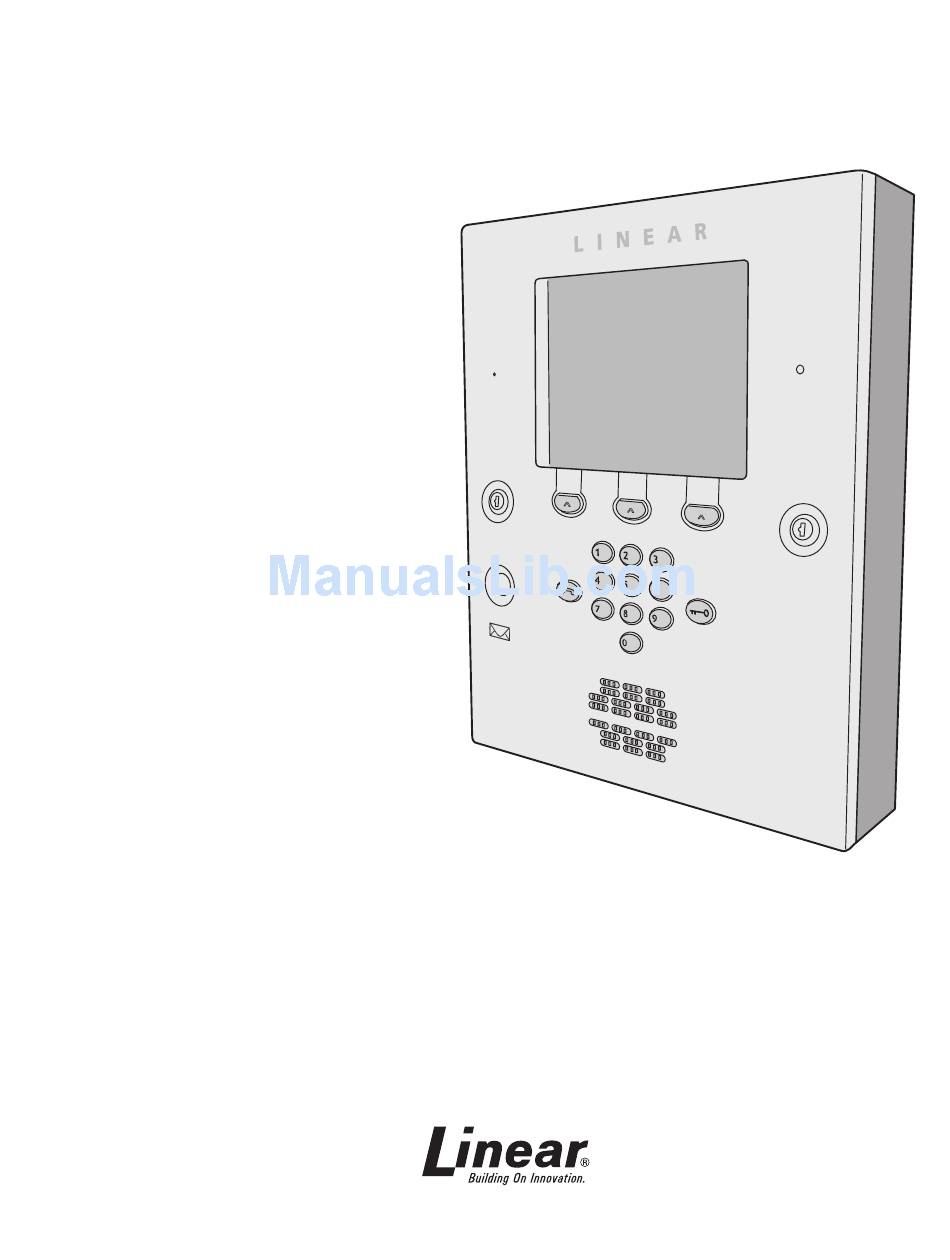

AE2000Plus
Telephone Entry
& Access Control
System
Installation Instructions
USA & Canada (800) 421-1587 & (800) 392-0123
(760) 438-7000 - Toll Free FAX (800) 468-1340
www.linearcorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AE2000PLUS and is the answer not in the manual?

Questions and answers

Summary of Contents for Linear AE2000PLUS

  • Page 1 AE2000Plus Telephone Entry & Access Control System Installation Instructions USA & Canada (800) 421-1587 & (800) 392-0123 (760) 438-7000 - Toll Free FAX (800) 468-1340 www.linearcorp.com...
  • Page 2: Table Of Contents

    In a typical installation, the unit’s memory would be programmed with each resident’s name and directory code number. Arriving visitors would use the keys on the AE2000Plus to view the directory names and directory number for the desired resident. Upon selecting the directory number, the AE2000Plus will automatically dial the resident’s telephone...
  • Page 3: Hardware Features

    ✓ 2-4 DIGIT DIRECTORY NUMBER LENGTH Directory number lengths can be customized for small or large installations ✓ LARGE TRANSMITTER CAPACITY Up to 45,600 block coded and 20,000 individually enrolled Linear transmitters can be used for gaining access ✓ TRANSMITTER FACILITY CODE SUPPORT Identifi...
  • Page 4: Accessory Overview

    Wiegand Accessories PROXIMITY READERS The two WIEGAND format inputs connect WIEGAND devices to the AE2000Plus. Linear offers a Wiegand format proximity reader. Most other manufacturer’s 26, 30 & 31-bit WIEGAND output devices can also be used with the AE2000Plus. WIEGAND...
  • Page 5: Component Locations

    Component Locations DISPLAY MICROPHONE LEFT CABINET LOCK OPTIONAL POSTAL LOCK SPEAKER INSTALLATION NOTE: FOR EASY WIRING, THE UNIT'S TERMINAL BLOCKS CAN BE UN-PLUGGED FROM THE CIRCUIT BOARD TAMPER CPU/INTERFACE SWITCH CONNECTOR RECEIVER RANGE KNOB CAMERA CONNECTOR (HIDDEN) VIDEO CONNECTOR WIEGAND INPUT TERMINALS PBUS...
  • Page 6: Wiring Diagram

    TERMINALS DVAL PCLK NET-B NETWORK TERMINALS NET-A RS-232 TELEPHONE PORT JACK FOR LOCAL COMPUTER CONNECTION NOTE: OPTIONAL USE LINEAR MODEL A2C BACKUP BATTERY SERIAL COMPUTER CABLE WILL REQUIRE AN EXTERNAL CHARGER N.C. RELAY N.O. CHANNEL "A" DS-A TERMINALS RTE-A N.C.
  • Page 7: Important Mounting Requirements

    THE AE2000Plus AT THE SAME TIME. Vehicle Traffi c Do not mount the AE2000Plus where it extends into any traffi c lane. Locate the gooseneck pedestal or entry kiosk so all parts of the AE2000Plus are outside the traffi c lane. Locate the AE2000Plus clear of any turn-around lanes vehicles use when access is denied.
  • Page 8: Entry System Mounting

    Opening and Closing the Cabinet The AE2000Plus’s cabinet hinges are spring loaded to help weather seal the cabinet. To open the cabinet, press the cabinet door fi rmly around each lock while turning each key counterclockwise.
  • Page 9 Be sure to replace the green ground wire. Pedestal Mounting The cabinet can be mounted on a gooseneck pedestal. Linear manufacturers two pedestals: Model GNC-1 is for surface mounting with concrete fasteners, Model GNB-1 is for burial mounting. When mounting to a pedestal, use the cabinet reinforcing plate to stiffen the cabinet.
  • Page 10: Relay Output Wiring

    Connect one wire to the remaining wire of the locking device. Connect the other wire to the remaining wire of the power supply. 5A. For a door strike, connect the wires to the AE2000Plus relay COM & N.O. terminals. 5B. For a magnetic lock, connect the wires to the AE2000Plus relay COM &...
  • Page 11: Power, Battery, & Ground Wiring

    A backup battery will not fi t into the AE2000Plus case. Protect the backup battery inside a rain-tight NEMA enclosure suitable for the installation.
  • Page 12: Telephone Wiring

    If wireless transmitters are going to be used in the system a remote antenna must be installed to provide reception for the AE2000Plus. A basic antenna kit is supplied with the AE2000Plus. The kit contains a whip antenna, connector, and a 36” length of coax cable. The antenna connector should be mounted on a metal surface using a 3/8”...
  • Page 13: Optional Postal Lock

    Optional Postal Lock A postal lock can be installed in the AE2000Plus Entry System to provide keyed access for the postal service. The AE2000Plus case is designed to accept a U.S. Postal Service postal lock. When the postal lock is engaged, the programmed output relay will activate.
  • Page 14: Pbus Accessories

    For wire runs up to 300 feet use 24 AWG Belden Type 9931 or equivalent. • For wire runs up to 500 feet use 20 AWG Weico Type 9405 or equivalent. 3. Connect the cable to the accessory and the AE2000Plus as shown in the fi gure. REMOTE DAT1 PBUS...
  • Page 15: Optional Network Connections

    Models AM3Plus, AE1000Plus, and AE2000Plus. Network Confi gurations for AXNET Programming If the system is going to be programmed using Linear’s AXNET Browser Interface, units can communicate with each other on the network through modems or RS-485 cable connections.
  • Page 16 Optional Network Connections (Continued) Network Confi guration for AccessBase2000 Programming If the system is going to be programmed using Linear’s AccessBase2000 software, units communicate with each other on the network through RS-485 cable connections. AccessBase2000 does not support unit-to-unit network communications through modems, only RS-485 cable.
  • Page 17 Optional Network Connections (Continued) RS-485 Network Wiring Network wiring conforms to 3-wire RS-485 electrical specifi cations. Units connected in the network can be wired using one unit as a “hub” or by wiring from one unit to the next in “daisy-chain” fashion. See the fi gures for wiring options.
  • Page 18: System Adjustments

    Contrast Adjustment Mode. System Diagnostics Several components on the main circuit board are for monitoring the system during operation. When calling for technical assistance, Linear’s Technical Services Department may ask the installer to use these components to diagnose the system.
  • Page 19: Internal Controls

    CHANNEL “C” LOCKED CLOSED CHANNEL “D” LOCKED CLOSED MODEM FAILURE STATUS/PROGRAM "UP" DISPLAY BUTTON "ENTER" BUTTON AE2000PLUS MAIN CIRCUIT BOARD STATUS/PROGRAM DISPLAY SYSTEM IDLE RIGHT DIGIT SHOWS NETWORK NODE ADDRESS LEFT DIGIT CIRCULATES PROGRAM MODE DECIMAL POINTS LIGHT, DIGITS SHOW PROGRAMMING OPTION...
  • Page 20: Ae2000Plus Operation

    AE2000Plus Operation Resident Access with an Entry Code KEY IN AN ENTRY CODE AT THE SYSTEM KEYPAD OR ENTER A CODE AT A REMOTE KEYPAD IF THE CODE IS ENTERED WRONG, PRESS THE KEY TO RESET THE KEYPAD AND RE-ENTER...
  • Page 21: Specifi Cations

    RADIO Frequency: 318 MHz ± 500 KHz @ 23°C Bandwidth: 300 KHz Typical Sensitivity: -97 dBm Minimum (-100 dBm Typical) Encoding: Linear MegaCode ® Format ENVIRONMENTAL Temperature: -22°F to 149°F (-30°C to 65°C) Humidity: 5% to 95% non-condensing Dimension Drawing AE2000PLUS 15-1/4"...
  • Page 22: Troubleshooting

    1. Check antenna installation and condition if transmitters were previously working well. 2. Check the RADIO indicator on the AE2000Plus circuit board. If it is fl ickering without activating any transmitters there is interference blocking the receiver. Try adjusting the RECEIVER RANGE knob to reduce the receiver’s sensitivity to the interference.
  • Page 23: Linear Limited Warranty

    All implied warranties, including implied warranties for merchantability and implied warranties for fi tness, are valid only until the warranty expires. This Linear LLC Warranty is in lieu of all other warranties express or implied. All products returned for warranty service require a Return Product Authorization Number (RPA#).
  • Page 24 Copyright © 2008 Linear LLC 227541 B...
