Linear MULTI-CODE 4200 Installation Instructions

BATTERY REPLACEMENT
Replacement battery - 9 volt alkaline battery.
The battery can be checked or changed by opening the battery hatch using a flathead
screwdriver in the slot provided on the bottom of the keyless entry. A twisting motion of
the screwdriver will open the battery hatch and provide access to the battery
compartment (Note: To avoid loss of programmed codes while changing the battery,
allow keypad LED's to turn off before removing the old battery, and install the new
battery within 1 minute. Do not depress any key when changing battery. If the battery
is not installed within 1 minute or a key is depressed, the Wireless Programmable
Keyless Entry may reset to the factory codes. You must reprogram both radio and
access codes if this happens).
WARRANTY
All Linear Corporation garage door related products carry a eighteen (18) month
warranty against defects in workmanship or material. The warranty begins at the date of
manufacture, for eighteen months. Linear Corporation warrantee's our product only to
our authorized dealers and distributors, and not to the end customer. If you have
questions about our warranty, please ask your dealer to determine the nature and scope
of his warranty. Linear Corporation does not assume, and is not responsible for, any real
or consequential damages for claims against the performance of our product, nor is it
liable for any costs related to loss of life, property, or revenue. Further, Linear
Corporation is in no way responsible for installation of our product, and will assume no
costs related to re-installation or removal. Linear Corporation Warranty is in lieu of all
other warrantees, expressed or implied.
CAUTION: Any changes or modifications in intentional or unintentional radiators which
are not expressly approved by LINEAR CORPORATION could void user's authority to
operate this equipment. This applies to intentional and unintentional radiators certified
per part 15 of the F.C.C. rules and regulations.
Copyright © 1999 Linear Corporation
LINEAR CORPORATION
2055 Corte Del Nogal
Carlsbad, CA 92009
(760) 438-7000
216559 A
®

Installation Instructions

Model 4200/4201 Wireless Programmable
Digital Keyless Entry System
Congratulations! You have purchased the Multi-Code Wireless Programmable Digital
Keyless Entry System, which we believe to be the finest product of its type on the market.
Please take a moment to review these instructions. They will be very helpful in the proper
installation and operation of your new system.
PROCEED AS FOLLOWS:

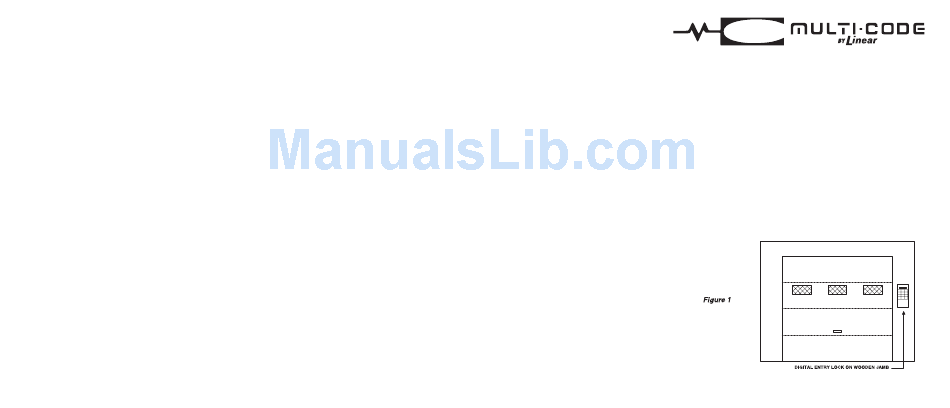

Choose Mounting Location. Choose a convenient location that does not interfere with
the normal operation of the door, such as on the door jamb or on the wall adjacent to the
door (see Figure 1 ). Note that some doors will swing up, be sure that in operating your RF
Programmable Keyless Entry System you will not be in the path of the door's travel.
IMPORTANT: Your keyless entry system should be mounted out of the reach of
children.
