PROGRAMMING OPTIONS

There are several AccessKey programming options. For
most installations, the factory set default options are
sufficient. The keypad must be in programming mode
to make these changes.
Programming Accesskey to Hold the Output
Linear's AccessKey products have a programmable
"Toggle Mode" available for each relay and solid-state
output. When an output is programmed for Toggle Mode,
the output alternates from OFF to ON or from ON to OFF
each time it is activated.
The rules for a toggle output are:
 If the output is OFF, it will turn ON and stay on until
the next activation.
 If the output is ON, it will turn OFF and stay off until
the next activation.
Typical Programming
With the unit in Program Mode, set the Auxiliary Relay (Relay
#2) output to Toggle Mode using the following keystrokes:
Press: 2 2 # 9 9 #
22= Programming Step; 99 = Toggle Mode
Program all normal entry codes to use the Main Relay
(Relay #1), and only Relay #1 as the output relay. Program
the code(s) that you want to use to gold the output for an
indefinite period to the Auxiliary Relay (Relay #2). See the
following example that sets entry codes 1234 for normal
and 5678 for toggle operation.
Press: 0 1 # 1 2 3 4 # 1 2 3 4 # 1 #
1234
01 = Programming Step; 1234 = Entry Code;
NORMAL
ENTRY CODE
Press: 0 1 # 5 6 7 8 # 5 6 7 8 # 2 #
5678
01 = Programming Step; 5678 = Entry Code;
TOGGLE
ENTRY CODE

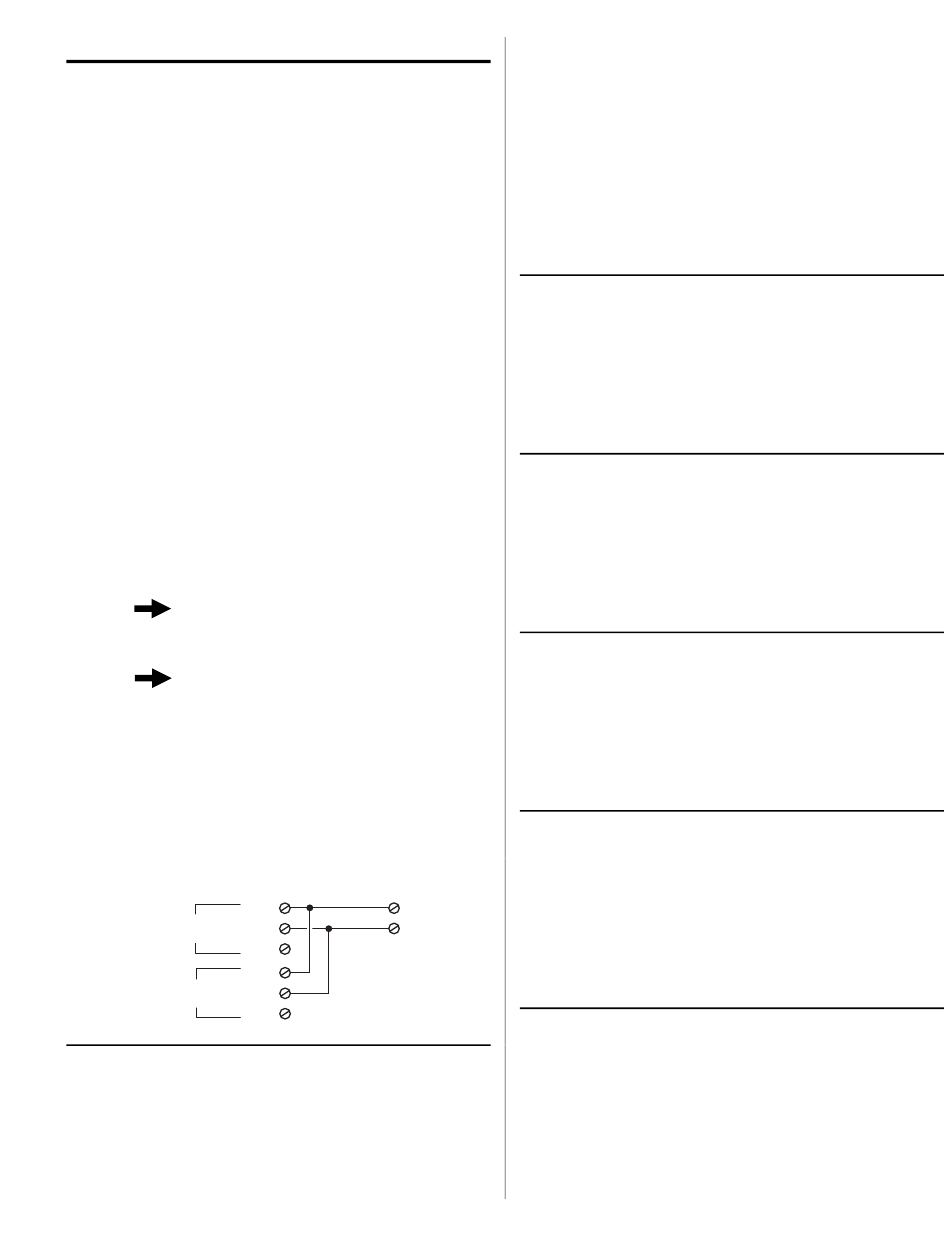

Typical Wiring
For devices triggered by a normally open circuit, wire the
contacts of the Main and Auxiliary Relays in parallel (see
the Figure below). Either relay will be able to trigger the
access device. Entry codes programmed for the Auxiliary
Relay will be able to hold the output on.
MAIN
COMMON
RELAY
ACCESSKEY
OUTPUTS
AUXILIARY
COMMON
RELAY
Select Door Sense or Inhibit Input
The input on terminal block J4, terminal #3 can be
programmed for DOOR SENSE or INHIBIT.
Press: 1 0
Input = 1 for Inhibit,
= 0 for Door Sense
1 = Main Relay
2 = Auxiliary Relay
N.O.
ACCESS
DEVICE
N.C.
N.O.
EITHER RELAY CAN TRIGGER
THE ACCESS DEVICE
N.C.
Default: Door Sense
# #
Input
When programmed for DOOR SENSE, if an open condition
on the input occurs before access is granted (with an entry
code or with the request-to-enter input) a FORCED
ENTRY output will occur. If an open condition remains
60 seconds after a relay activation for access, a DOOR
AJAR output will occur.
When programmed for INHIBIT, a closed condition on the
input will prevent relay #1 from activating when access is
requested (with an entry code). This mode is typically used
with an external timer to disable the access device at
certain times.
Select Forced Entry Output
Sets which output activates if the Door Sense input opens before
access is granted. This output is not timed.
Press: 1 1
Output = Output to Activate (0-4)
1 = Relay #1 2 = Relay #2 3 = Output #3
4 = Output #4 0 = No Output
Select Door Ajar Output
Sets which output activates if the Door Sense input stays open after
access is granted. This output is not timed.
Press: 1 2
Output = Output to Activate (0-4)
1 = Relay #1 2 = Relay #2 3 = Output #3
4 = Output #4 0 = No Output
Select Keypad Lockout Output
Sets which output activates when the keypad is "locked out" after too
many incorrect entry code attempts. The lockout time is 60 seconds.
Press: 1 3
Output = Output to Activate (0-4)
1 = Relay #1 2 = Relay #2 3 = Output #3
4 = Output #4 0 = No Output
Select Keypad Active Output
Sets which output activates when any keys are pressed. This output
is timed. If toggle mode is selected, the timer value defaults to 2
seconds.
Press: 1 4
Output = Output to Activate (0-4)
1 = Relay #1 2 = Relay #2 3 = Output #3
4 = Output #4 0 = No Output
Select Alarm Shunt Output
Sets which output activates during the time access is granted. (Use
this output to shunt alarm contacts attached to the access door.) This
output may be timed or latched.
Press: 1 5
Output = Output to Activate (0-4)
1 = Relay #1 2 = Relay #2 3 = Output #3,
4 = Output #4 0 = No Output
Default: Output #3
# #
Output
Default: Output #4
# #
Output
Default: No Output
# #
Output
Default: No Output
# #
Output
Default: No Output
# #
Output
