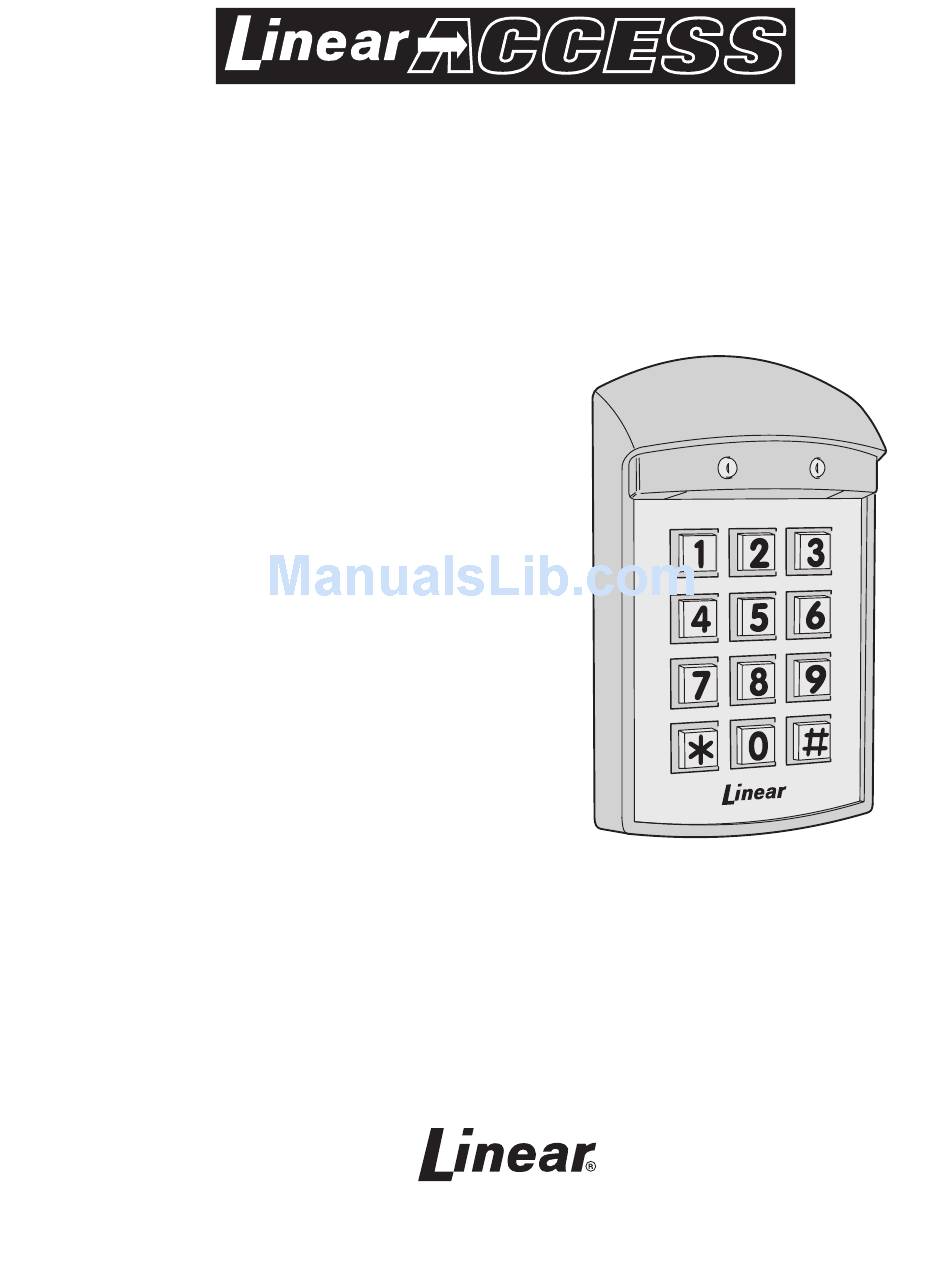

- Page 1 AK-2W Weather Resistant Digital Keyless Entry System Installation and Programming Instructions (760) 438-7000 USA & Canada (800) 421-1587 & (800) 392-0123 Toll Free FAX (800) 468-1340 www.linearcorp.com...
-
Page 2: Table Of Contents
LINEAR LIMITED WARRANTY ........6... -
Page 3: Component Locations
COMPONENT LOCATIONS RED/GREEN POWER/ACCESS INDICATOR BEZEL FACEPLATE KEYPAD WIRING DIAGRAM POWER SUPPLY ELECTRIC DOOR STRIKE TO ALARM ALARM SYSTEM CONTACT REQUIRED WIRING NOTES: 1. ALARM SHUNT SET FOR AUXILIARY RELAY OPTIONAL WIRING 2. TERMINAL BLOCK #2, TERMINAL 8 SET FOR DOOR SENSE OTHER WIRING MASTER CODE YELLOW... -
Page 4: Installation
INSTALLATION Before installing the keypad, the unit must be partially disassembled to access the mounting plate. Opening the Keypad The keypad assembly is secured with two tamper-resistant screws. Refer to Figure 3 for disassembly details. ❑ Use the special allen wrench (supplied) to remove the two tamper-resistant screws. -
Page 5: Keypad Wiring
Keypad Wiring See Figure 7 for an example of a basic door installation. The keypad is mounted adjacent to the door. An electric door strike is mounted in the door jamb to release the door lock. A magnetic switch is mounted on the top of the door jamb for detecting when the door is open. -
Page 6: Factory Defaults
Programming Mode to make these changes. PROGRAMMING AK-2W TO HOLD THE OUTPUT Linear’s AccessKey products have a programmable “Toggle Mode” available for each relay and solid-state output. When an output is programmed for Toggle Mode, the output alternates from OFF to ON or from ON to OFF each time it is activated. - Page 7 Program all normal entry codes to use the Main Relay (Relay #1), and only Relay #1 as the output relay. Program the code(s) that you want to use to hold the output for an indefi nite period to the Auxiliary Relay (Relay #2). See the following example that sets entry codes 1234 for normal and 5678 for toggle operation.
-
Page 8: Resetting Keypad
Consumers should inquire from their selling dealer as to the nature of the dealer’s warranty, if any. There are no obligations or liabilities on the part of Linear LLC for consequential damages arising out of or in connection with use or performance of this product or other indirect damages with respect to loss of property, revenue, or profi...
