Linear AccessKey Installation And Programming Instructions page 5

Gate Control
Route four wires between the gate and the keypad (two
for power, two for control).
Connect the gate operator's auxiliary or radio power
output terminals to the keypads POWER input
terminals (observe wiring polarity).
Connect the gate operator's OPEN terminals to the
keypad's Relay #1 COMMON & N.O. terminals.
NOTE: For operator wiring specifics, refer to the
gate operator's wiring diagram.
If a request-to-enter pushbutton or fire access
keyswitch is going to be used, route two wires from the
keypad to the normally open switch. Connect the wires
to the normally open switch and to the keypad's
REQUEST-TO-ENTER and COMMON terminals.
If an inhibit switch or timer is going to be used, route
two wires from the keypad to the inhibit switch or timer
relay. Connect the inhibit switch/timer terminals to the
keypad's INHIBIT and COMMON terminals.
NOTE: If the INHIBIT input is going to be used, it
must be programmed to select that input type. See
the Programming Options section of this manual.
ACCESSKEY
KEYPAD
2 WIRES FOR
REQUEST-TO-ENTER
FIRE
ACCESS
KEYSWITCH
2 WIRES FROM ACCESSKEY
TO TRIGGER GATE OPEN

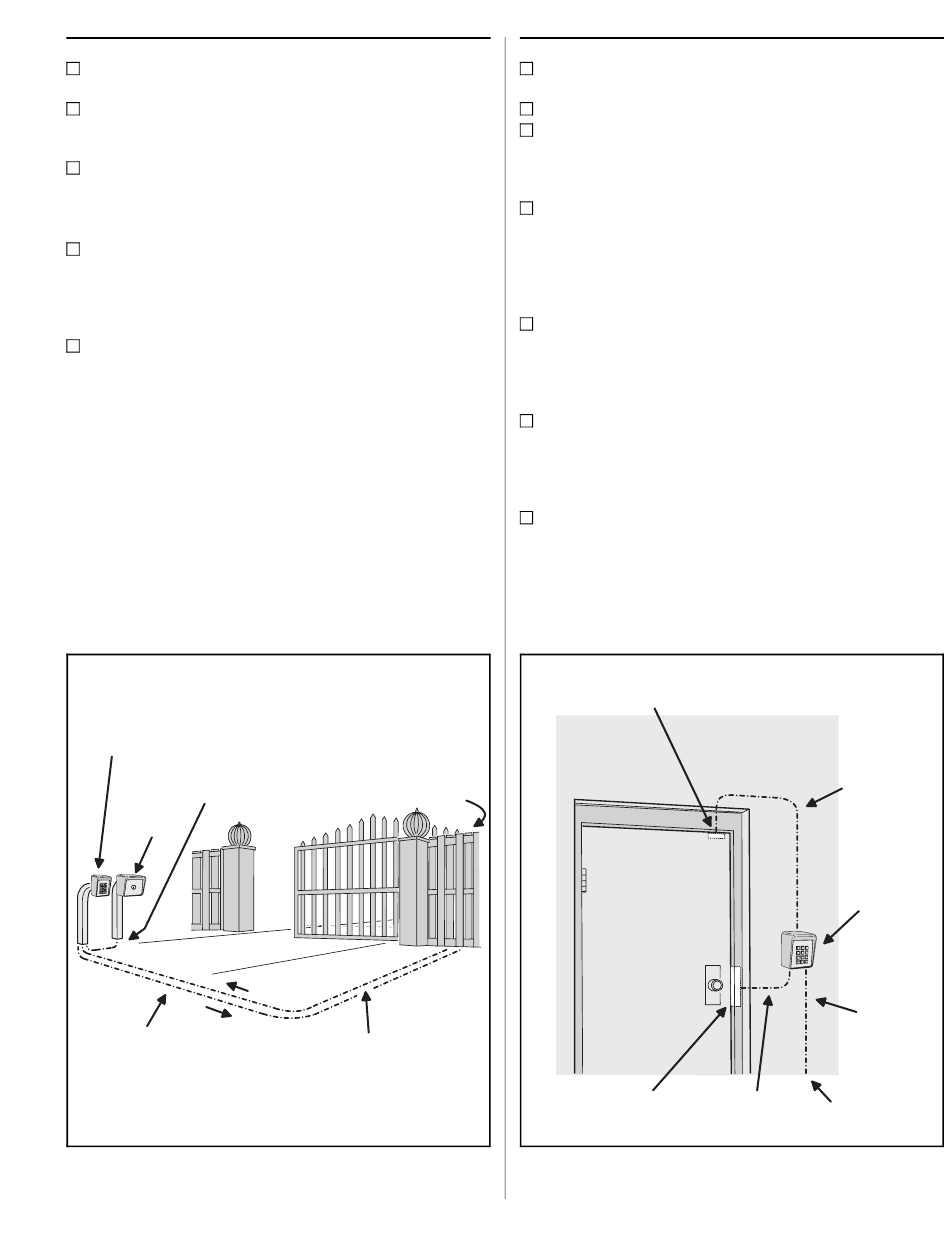

Figure 5. Gate Installation
GATE
OPERATOR
(BEHIND GATE)
2 WIRES FROM OPERATOR
FOR ACCESSKEY POWER
Door Control
Install a low voltage electric door strike for unlocking
the door.
Choose a location for the power supply or transformer.
Route two wires between the power supply and the
keypad. Connect the power supply's output terminals
to the keypads POWER input terminals (observe wiring
polarity).
Route two wires between the door strike and the
keypad. Connect one of the door strike wires to the
keypad's Relay #1 N.O. terminal. Connect the other
door strike wire to the keypad's POWER
Connect a wire between the keypad's POWER
terminal and the Relay #1 COMMON terminal.
If a request-to-enter pushbutton or fire access
keyswitch is going to be used, route two wires from the
keypad to the normally open switch. Connect the wires
to the normally open switch and to the keypad's
REQUEST-TO-ENTER and COMMON terminals.
To use the door sense feature to detect forced entry or
door ajar conditions, install a normally closed door
switch on the door and route two wires from the switch
to the keypad. Connect the door switch to the keypad's
DOOR SENSE and COMMON terminals.
If an inhibit switch or timer is going to be used, route
two wires from the switch or timer to the keypad.
Connect the inhibit switch/timer terminals to the
keypad's INHIBIT and COMMON terminals.
NOTE: Either door sense or inhibit can be used.
Both features cannot be used at the same time.
DOOR
SENSE
SWITCH
ELECTRIC
DOOR
STRIKE
Figure 6. Door Installation
+
terminal.
2 WIRES
FOR DOOR
SENSE
ACCESSKEY
KEYPAD
2 WIRES
FOR
POWER
FROM
2 WIRES
POWER
FOR DOOR
SUPPLY
STRIKE
-
5
