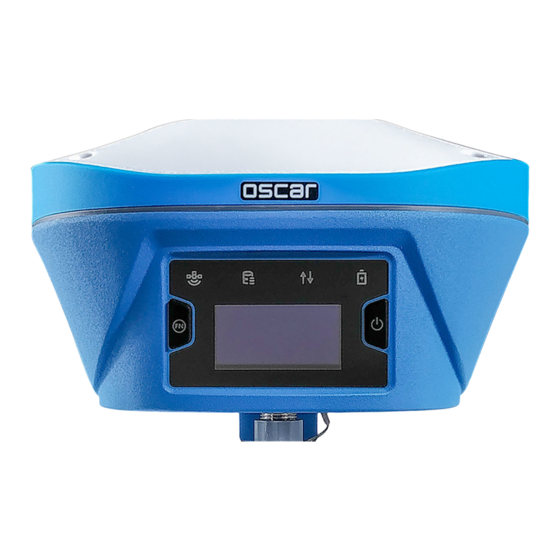

- Page 1 Guide Version V1.0-20210609 User Manual Oscar GNSS Receiver MFGTOOLS Upgrade Guide ©2021 Tersus GNSS Inc. All rights reserved. Sales Enquiry: sales@tersus-gnss.com Technical Support: support@tersus-gnss.com More details, please visit www.tersus-gnss.com...
- Page 2 Oscar MFGTOOLS Upgrade Guide v1.0 Table of Content Table of Content....................- 1 - List of Tables..............错误！未定义书签。 1. Interfaces of Oscar...................- 2 - 2. MFGTOOLS Upgrade................- 3 - List of Tables Table 1 Interfaces on the bottom side............- 2 -...
- Page 3 Oscar MFGTOOLS Upgrade Guide v1.0 1. Interfaces of Oscar The bottom of Oscar receiver is shown as below. TNC port Mini USB port Serial port & External power Speaker SIM slot Screw hole Battery compartment Figure 1 Bottom of Oscar Table 1 Interfaces on the bottom side Icon Connector...
- Page 4 Oscar MFGTOOLS Upgrade Guide v1.0 2. MFGTOOLS Upgrade The detailed steps of MFGTOOLS upgrade are as follows. 1) Open the Mfgtools file folder. 2) Select “mfgtool2-yocto-mx-evk-qspi-nor-n25q256a.vbs”, double click to open this VBScript. A dialog box of MfgTool will appear. Figure2 the Mfgtools file folder Figure3 the dialog box of MfgTool 3) Connect ‘Serial-5pin to DC JACK &...
- Page 5 Oscar MFGTOOLS Upgrade Guide v1.0 A Male Converter Cable’ to DB9 Male Cable and a computer. Connect ‘Mini-USB Cable’ to the ‘Mini-USB Port’ on the receiver and a computer. External power supply provides 12V voltage to the receiver. Do not turn on the receiver.
- Page 6 Oscar MFGTOOLS Upgrade Guide v1.0 Figure6 the tweezers and metal cable 6) Put the tweezers or metal cable into the hole in the battery compartment. Figure7 the tweezers or metal cable touched the hole...
- Page 7 Oscar MFGTOOLS Upgrade Guide v1.0 7) Press and hold the power button for 3 seconds to turn on the receiver, the Mfgtool shows “符合 HD 标准的供应商定义设备” and then click ‘start’. If the Mfgtool shows ‘No device connected’ or no response, you should turn off the receiver and make sure the tweezers or metal cable touches the hole in the battery compartment , then turn on the receiver again.
- Page 8 Oscar MFGTOOLS Upgrade Guide v1.0 near the NFC logo on Oscar, the controller pair Bluetooth with Oscar automatically; or click [Device] -> [Connect] under an opened project, and select [Oscar] for the Device Type, select [Bluetooth] for the Connect Type. Click [Connect Config] to search and pair the Bluetooth address of Oscar.
- Page 9 Oscar MFGTOOLS Upgrade Guide v1.0 For Ultimate and Advanced versions, you can also check the firmware version by switching the button. In the [device information] -[GNSS information]- [firmware version], you can view the firmware version of the GNSS board inside Oscar. In the [device information] - [software version], you can view Oscar firmware version.
- Page 10 Proprietary Notice All Information in this document is subject to change without notice and does not reflect the commitment on Tersus GNSS Inc. No part of this manual may be reproduced or transmitted by all means without authorization of Tersus GNSS Inc.
