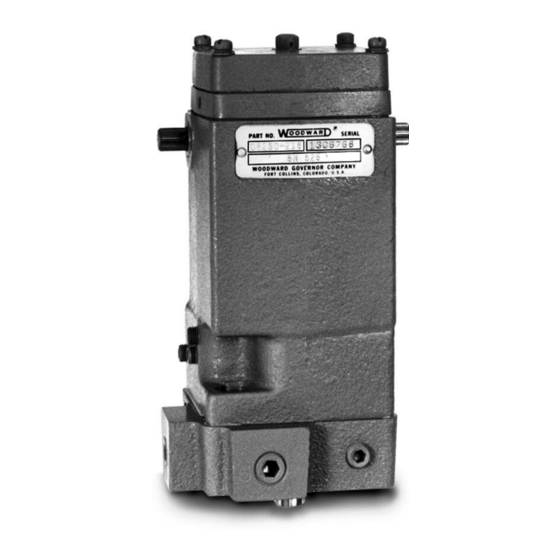

Woodward EG-3P Installation Manual
Installation of the woodward eg-3p actuator
on the detroit diesel i-71 engine
Hide thumbs
Also See for EG-3P:
- Installation and operation manual (32 pages) ,
- Installation and operation manual (40 pages) ,
- Installation and operation manual (38 pages)
Related Manuals for Woodward EG-3P
Summary of Contents for Woodward EG-3P
- Page 1 Installation Manual EG-3P Actuator Installation of the Woodward EG-3P Actuator on the Detroit Diesel I-71 Engine Manual 54008...
- Page 2 Woodward Governor Company reserves the right to update any portion of this publication at any time. Information provided by Woodward Governor Company is believed to be correct and reliable. However, no responsibility is assumed by Woodward Governor Company unless otherwise expressly undertaken.
-
Page 3: Parts List
Installing EG-3P on Detroit Diesel I-71 Engine Installation of the EG-3P Actuator on the Detroit Diesel I-71 Engine Introduction These instructions are for the conversion from the Woodward SG governor to the Woodward EG-3P actuator. For information concerning electric controls, see manuals: 25070... - Page 4 Installing EG-3P on Detroit Diesel I-71 Engine Manual 54008 Linkage Kit (see Figures 1 & 2) Item Description .........Quantity 54008-1 Washer .250 Hi Collar Lock ..... 2 54008-2 Screw - .250-28 x 100 Hex Head Cap..2 54008-3 Lever ............1 54008-4 Nut .250-28 Elastic Hex (Thin) ....
- Page 5 Manual 54008 Installing EG-3P on Detroit Diesel I-71 Engine Figure 1. Fuel Rod and Boot Assembly Figure 2. Linkage Connections to EG-3P Actuator Woodward...
-
Page 6: Actuator Installation
Installing EG-3P on Detroit Diesel I-71 Engine Manual 54008 Actuator Installation See Figures 1 and 2 to install the EG-3P actuator on the engine. Remove the SG governor from the engine. Install hold down studs (10) in the actuator pad. - Page 7 Manual 54008 Installing EG-3P on Detroit Diesel I-71 Engine Magnetic Pickup Installation Remove the pipe plug in the flywheel housing adjacent to the flywheel teeth. Install the 1.000 - 11 1/2 NPTF magnetic pickup bushing (15) in the flywheel housing.
