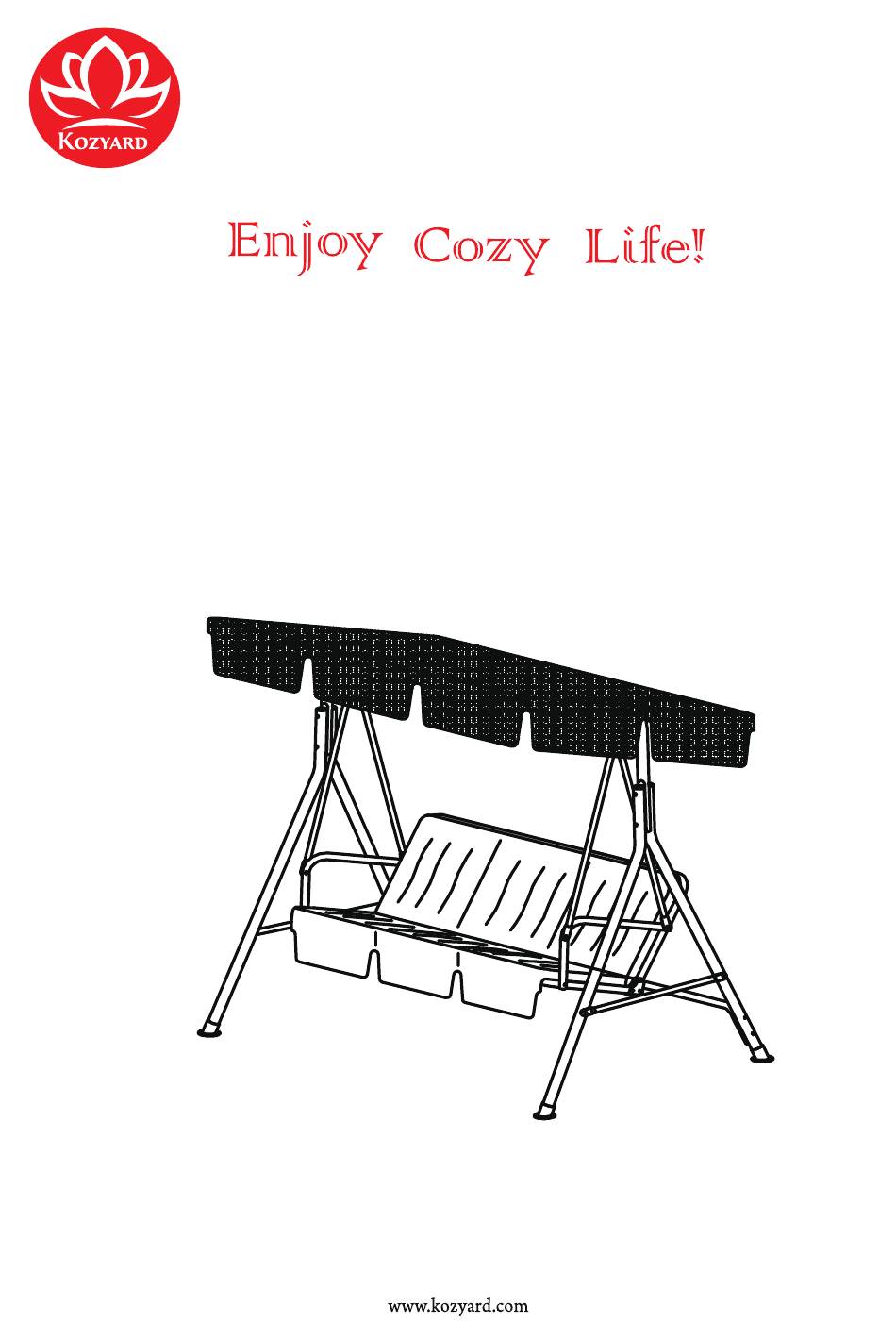

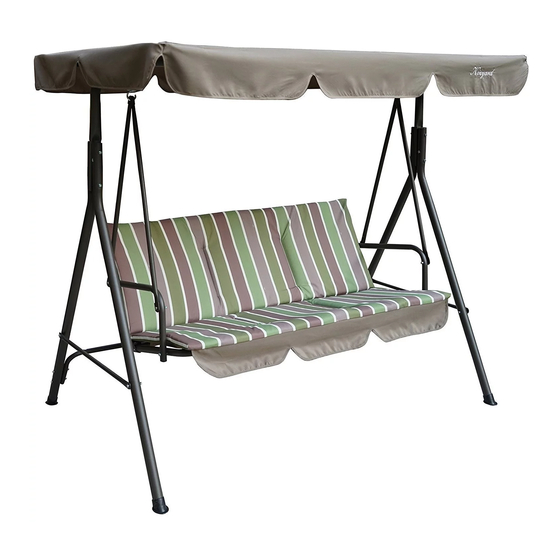

  • Page 1 Alicia swing chair Assembly Manual Kozyard LLC Products...

  • Page 3: Assembly Instruction

    • SHOULD YOU EXPERIENCE ANY DIFFICULTY DURING ASSEMBLY OR IF ANY PARTS IS MISSING OR DAMAGED CONTACT OUR CUSTOMER SERVICE BY EMAIL : info@kozyard.com OR CALL TOLL FREE: 886-355-0018 . • PLEASE PROVIDE THE FOLLOWING INFORMATION: 1. MODEL NUMBER OF THE PRODUCT.

  • Page 4: Parts List

    PARTS LIST Top right cross beam Top left cross beam Front upright support Rear upright support braces braces Lateral cross braces Swing arm tubes Rear left cross brace Rear right cross brace S Hook Swing Arms Seat with cushion Side canopy braces Front&Rear canopy Bolts M6x50 Canopy...
  • Page 5 STEP 1 Connect the Top right cross beam (C) and Top left cross beam (D). Using bolts (Q), washers (W) and nuts (V), cover with nut covers (Z) STEP 2 Attach Front upright support brace (A) and Rear upright support brace (B) to top cross beams (C&D).
  • Page 6 STEP 3 Fasten Lateral cross brace (E) to upright support braces. Using bolts (N), washers(W) and nuts (V), cover with nut covers (Z). STEP 4 Connect the Rear left cross brace (F) and Rear right cross brace (G). Using bolts (O), washers (W) and nuts (V), cover with nut covers (Z)
  • Page 7 STEP 5 Fasten rear cross brace (F&G) to rear upright support braces(B). Using bolts(T), washers (W) and nuts (V), cover with nut covers (Z). STEP 6 Open seat assembly (J), attach the end of one swing arm (I) to the seat assembly. Using bolts (R), washers (W) and nuts (V), cover with nut covers (Z).
  • Page 8 STEP 7 Attach one swing arm tube (E) and swing arm (I) to seat assembly (J) back frame. Using bolts (S), washers (W) and nuts (V), cover with nut covers (Z) for each side. Fasten another swing arm tube (E) at the bend, using bolts(P), washers (W) and nuts (V), cover with nut covers (Z)
  • Page 9 STEP 9 Attach the canopy assembly on both sides of the top cross beams (C&D) with plastic screw (Y) STEP 10 Insert front and rear canopy braces (L) into the sleeves of the canopy (M). Tie the nylon tapes to secure the frame and canopy top...
  • Page 10 STEP 11 Insert Part L to part K, Repeat another side. STEP 12 Be make sure each time to adjustable canopy, By loosing "Y" part, Change the angle you like, Than again fasten"Y" part.
  • Page 11 Kozyar rd.com www.kozyard.com Toll-fr...
