Kozyard London KD Assembly Manual

Kozyard London KD Assembly Manual

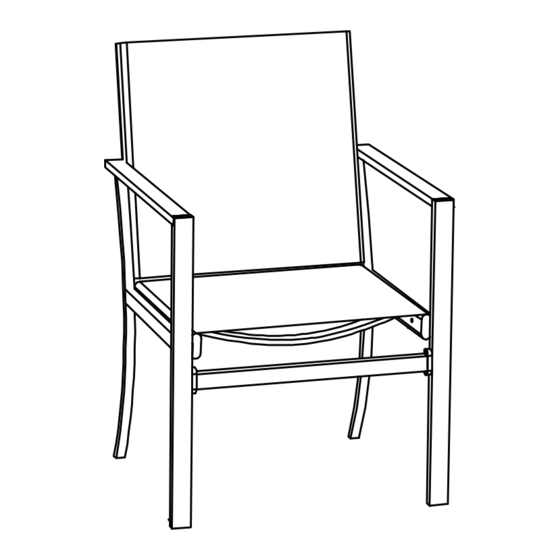

Aluminum dining chair

Advertisement

Quick Links

London KD Aluminum
Dining Chair
Assembly Manual
Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.
ASSEMBLY INSTRUCTIONS
Prior to assembly, make sure you lay out and identify all the parts listed
below in the parts list.
Tighten all nuts and bolts securely. All bolts should be hand tightened
before use. Never use power tools or excessive force during assembly
and tightening of bolts.
Should you experience any difficulty during assembly or if any parts is
missing or damaged:
Contact our customer service by email: info@kozyard.com or call toll
free: 866-355-0018.
Warning:
1. Max loading capacity of the chair:300 Lbs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the London KD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kozyard London KD

  • Page 1 Should you experience any difficulty during assembly or if any parts is missing or damaged: Contact our customer service by email: info@kozyard.com or call toll free: 866-355-0018. Warning: 1. Max loading capacity of the chair:300 Lbs.
  • Page 2 Part list Part Description Part Description Washer Back Seat Allen key Left Leg Right Leg Leg connector M6*16 Bolt Bolt M6*28...
  • Page 3 Conect Leg Connector (Part J) Left Leg (Part C) & Right Connect Seat (Part B) with Legs (Part C&Part D) Leg (Part D) using Bolt (E) and washer (G) using Bolt (F) with Washer (G) as shown in diagram. as shown in diagram.
  • Page 4 Link Back (Part A) with Legs (Part C&Part D) using Make sure all bolts are fixed tightenly before using on the Bolt (F) with Washer(G) as shown in diagram. level ground.
  • Page 5 10808 6th ST, Unit 100, Rancho Cugamonga, CA 91730...
