Summary of Contents for Kozyard Susan spring bistro set

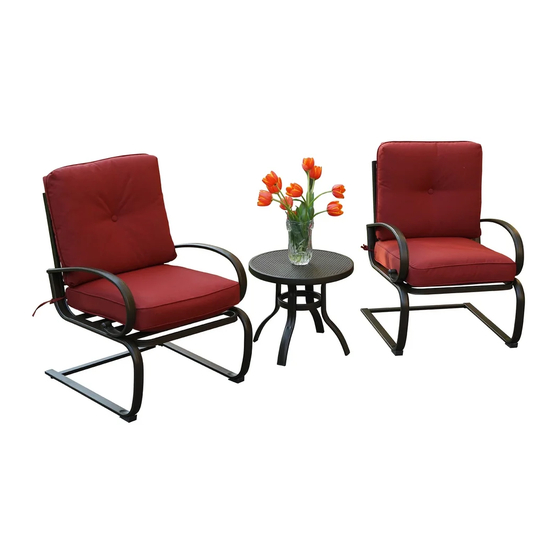

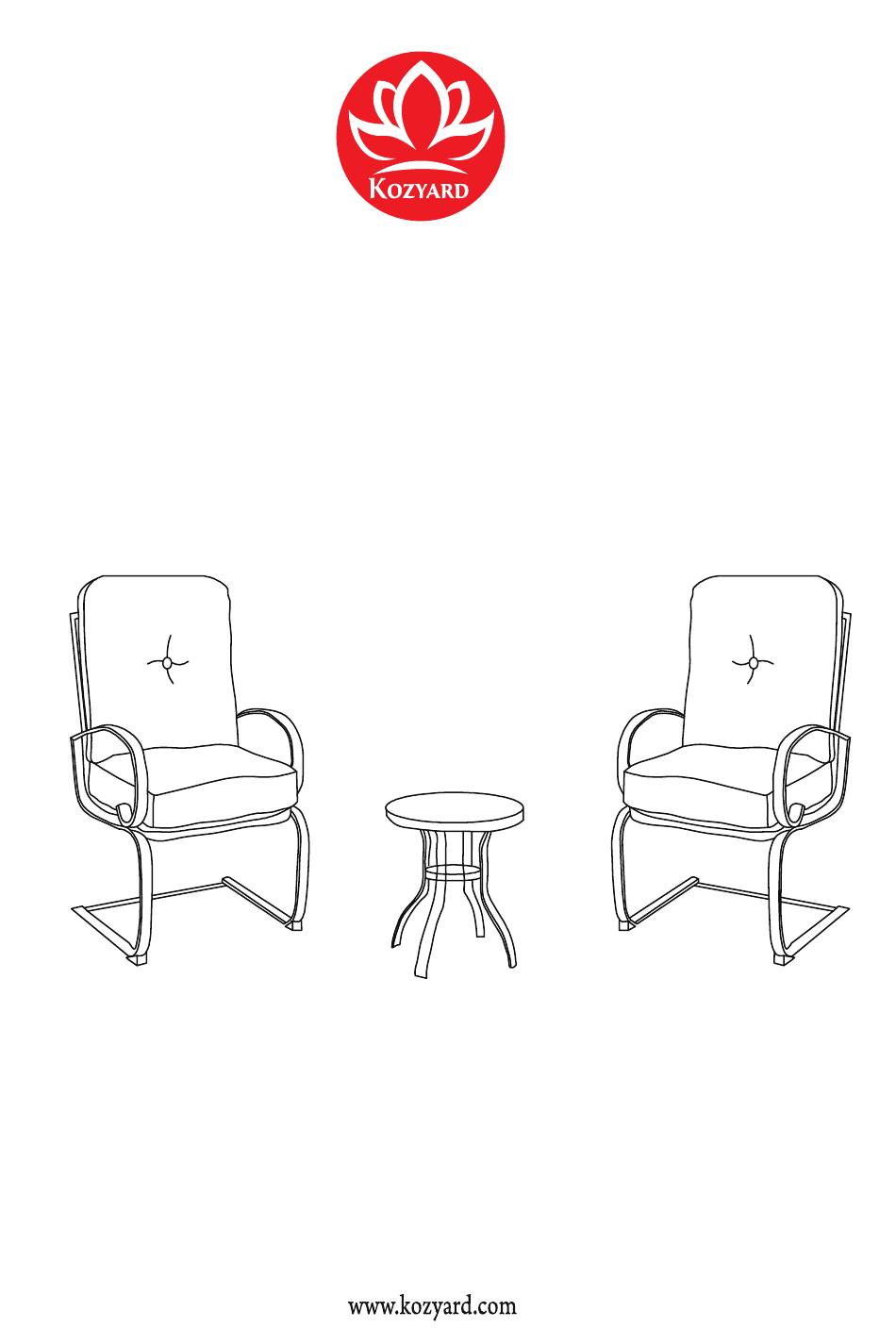

- Page 1 Susan spring bistro set Assembly Manual Kozyard LLC Products...
- Page 2 Spring Chair PART LIST FIGURE QUANTITY DESCRIPTION RIGHT ARM LEFT ARM CHAIR FRAME REAR LEG CONNECTOR 8+1PCS BOLT (M6*18) 2+1PCS BOLT(M6*30) 2+1PCS LEG LEVELER 10+1PCS FLAT WASHER ALLEN WRENCH BACK CUSHION SEAT CUSHION...
- Page 3 Step-1 A. PLACE CHAIR FRAME (C) UP SIDE DOWN ON A FLAT, PROTECTED SURFACE. B. CONNECT RIGHT ARM (A) TO SEAT OF CHAIR FRAME (C) WITH FLAT WASHER (H) AND BOLT (E) USING ALLEN WRENCH (I). DO NOT TIGHTEN COMPLETELY. C.
- Page 4 Step-3 A. ATTACH REAR LEG CONNECTOR (D) TO CHAIR FRAME (C) ASSEMBLY AND (A) USING LEG LEVELER (G), FLAT WASHER (H) AND BOLT (E) USING ALLEN WRENCH (I). DO NOT TIGHTEN COMPLETELY. Step-4 A. TURN CHAIR TO UPRIGHT POSITION SO THAT IT STANDS SQUARELY ON THE FLOOR. B.
- Page 5 Table PART LIST FIGURE QUANTITY DESCRIPTION 1 PC 4 PCS 1 PC LEG CONNECTOR FLAT WASHER + BOLT 12 PCS + 1 PC (M6*23 MM) 1 PC ALLEN WRENCH Step-1 A. PLACE TOP (A) UPSIDE DOWN ON A FLAT, PROTECTED SURFACE. B.
- Page 6 Step-2 A. ATTACH LEG CONNECTOR (C) TO LEGS (B) WITH FLAT WASHERS AND BOLTS (D) USING ALLEN WRENCH (E). DO NOT TIGHTEN COMPLETELY. B. TIGHTEN COMPLETELY ALL BOLTS ON LEG CONNECTOR (C) FIRST THEN AT TOP (A) WITH ALLEN WRENCH (E). Step-3 A.
- Page 7 Kozyard LLC 2825 80th ST SE, Suite 202 Mercer Island, WA 98040 Email: info@kozyard.com www.kozyard.com Toll-free: 866-355-0018...
