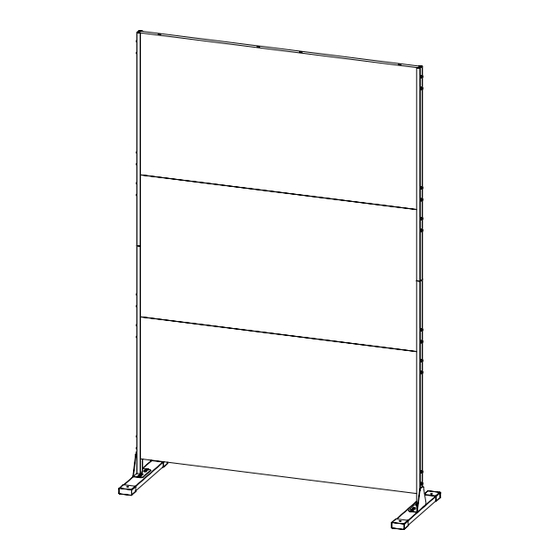

Metal Privacy Screen Fence Panel
Assembly Manual
Kozyard LLC Products
www.kozyard.com
Copyright 2016 - 2024 Kozyard LLC. | All Rights Reserved.
©

Advertisement

loading
Need help?

Need help?

Do you have a question about the Metal Privacy Screen Fence Panel and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kozyard Metal Privacy Screen Fence Panel

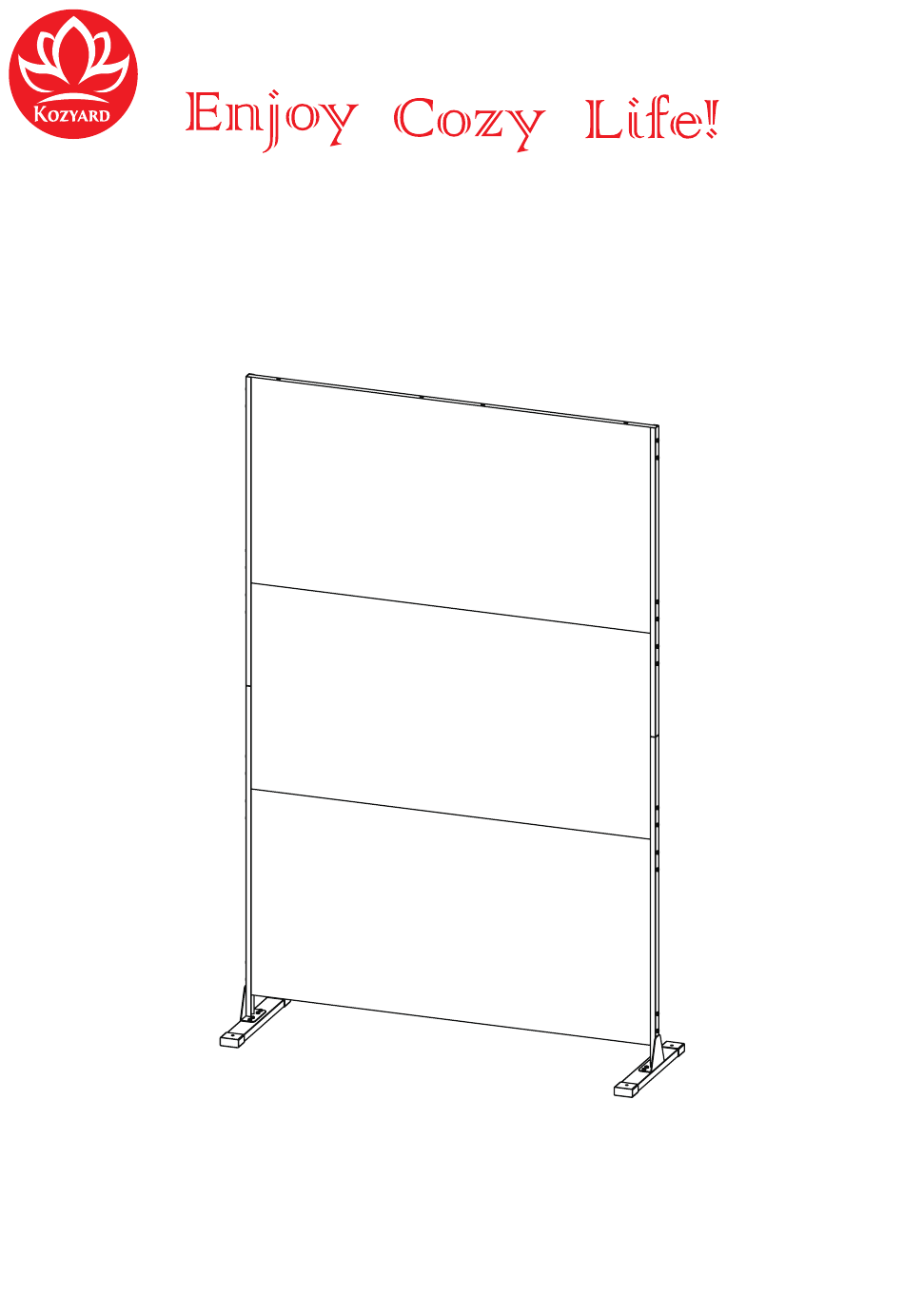

  • Page 1 Metal Privacy Screen Fence Panel Assembly Manual Kozyard LLC Products www.kozyard.com Copyright 2016 - 2024 Kozyard LLC. | All Rights Reserved. ©...
  • Page 2: Care And Warranty

    If you encounter any dif culties during assembly, or if any part is missing or damaged, please don't hesitate to contact our customer service team via email at info@kozyard.com or by calling our toll-free number at 866-355-0018. Care and Warranty •...
  • Page 3 ASSEMBLY PARTS AND TOOLS Metal panel *3 Metal frame *2 Metal frame *2 Base *2 Bolt M6×16 *40 +2 Installation tools...
  • Page 4 ASSEMBLY INSTRUCTIONS STEP 1: Connect Metal Frame (Part B) to Base (Part D) using Bolt #1, as illustrated. ×2 STEP 2: Place Panel (Part A) between the two frames (Part B).
  • Page 5 STEP 3: Affix Panel (Part A) to Frames (Part B) using Bolt #1, following the diagram. STEP 4: Place the second panel (Part A) between the two frames (Part B), as indicated.
  • Page 6 STEP 5: Attach the two panels (Part A) to each other, and simultaneously affix the second panel to the frames (Part B) using Bolt #1. STEP 6: Connect Frames (Part C) to the second panels (Part A) using Bolt #1.
  • Page 7 STEP 7: Place the third panel (Part A) between the two frames (Part C). STEP 8: Attach the third panel (Part A) to the second one, while also affixing it to frames (Part C) using Bolt #1.
  • Page 8 STEP 9: Complete assembly. Tips:1 For outdoor placement, it is required to secure the base using 4 1/4" sleeve anchors (not included). This ensures the stability and safety of the panel against wind and other outdoor elements. (The set does not include 1/4"sleeve anchors)
  • Page 9 Tips:2 Horizontal assembly is also possible if desired. This option allows customers exibility in how they wish to set up the privacy screens, catering to various space and design requirements. Tips:3 Horizontal assembly is also possible if desired. This option allows customers exibility in how they wish to set up the privacy screens,...
  • Page 10 Tips:4 Purchasing two Metal Privacy Screens can achieve a seamless connection. Tips:5 Purchasing three Metal Privacy Screens can achieve a seamless connection.
  • Page 11 Kozyard LLC Copyright 2016 - 2024 Kozyard LLC. | All Rights Reserved. ©...
